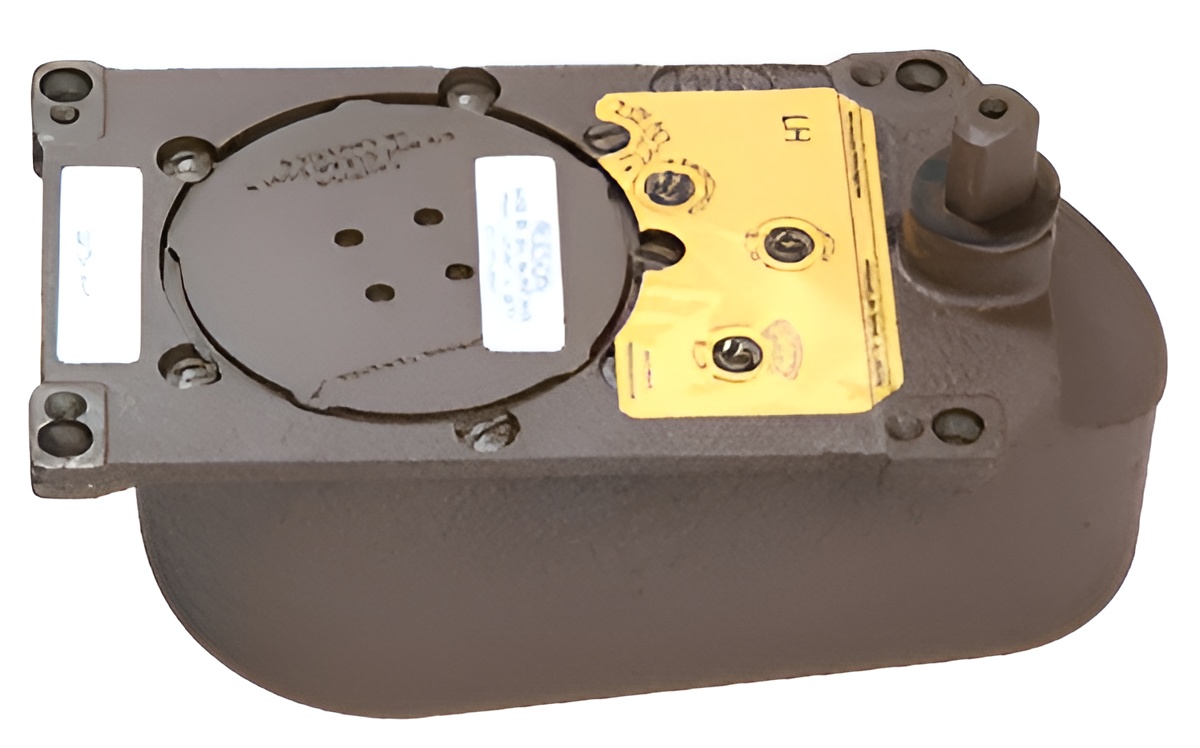

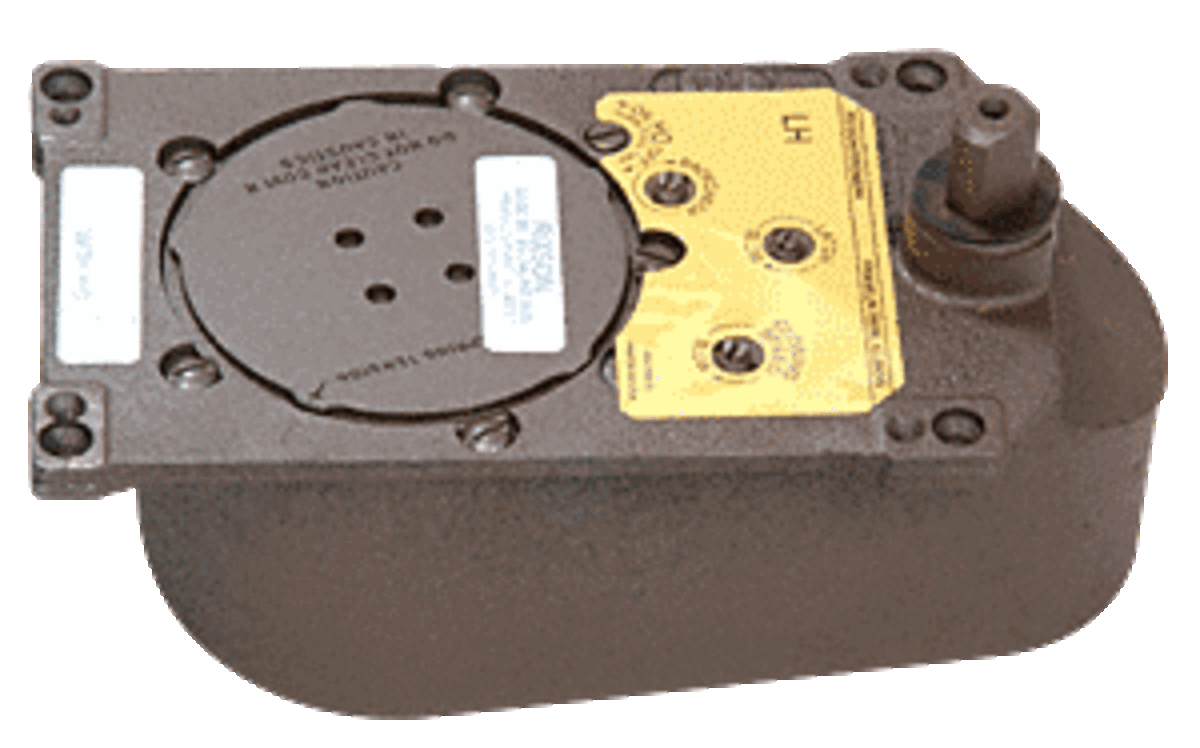

CRL 27105SH0LHB0DY Rixson 27 Series Left Hand 3/4" Offset Floor Closer Body OnlyCRL 27105SH0LHB0DY Rixson 27 Series Left Hand 3/4" Offset 105 Selective Hold Open Floor Mounted Closer Body Only offers unparalleled performance for controlling heavy doors. Designed for both exterior and interior applications, this closer accommodates doors weighing up to 450 lbs. (204 kg) and measuring up to 48" (1.22 m) in width. The innovative design features a bottom arm that directly connects to the floor closer spindle, significantly enhancing closing efficiency compared to traditional surface or overhead concealed closers. This model includes a selective hold open function, allowing building professionals to choose when the door remains open, and a built-in positive dead stop for added safety and durability. The closer provides independent valves for closing, latching, and backcheck adjustments, ensuring precise control over the door's operation. With a body height of 4-1/16 in. (103.2 mm), length of 11-1/8 in. (282.6 mm), and width of 5-7/8 in. (149.2 mm), it is crafted to fit seamlessly into various architectural designs. Certified to ANSI 156.4 Grade 1 standards, this Rixson closer guarantees reliability and longevity, making it a preferred choice for demanding environments. Additional finishes and accessories are available upon request, ensuring customization to meet your specific project needs.
Rixson 27 Series Left Hand 3/4" Offset 105 Selective Hold Open Floor Mounted Closer Body Only
- For Exterior or Interior Doors Weighing Up to 450 Lbs. (204 kg) and 48" (1.22 m) Wide
- Selective On or Off Hold Open
- Built-in Positive Dead Stop
This
Rixson® Model 27 Offset Floor Mounted Door Closer provides the best mechanical means of controlling a door. The weight of the door is supported by the bottom arm, which is directly connected to the floor closer spindle. The direct connection between the bottom arm and the floor closer spindle creates a tremendous increase in closing efficiency compared to surface or overhead concealed closers. This closer is capable of supporting exterior or interior doors weighing up to 450 lbs. (204 kg) and 48" (1.22 m) Wide.
Standard features include selective on or off hold open, build-in positive dead stop, and separate independent valves for closing, latch and backcheck adjustments.
NOTE: CRL is a stocking Rixson® Specialty Door Control Distributor. If you need Rixson® products please contact our Technical Sales Department for assistance.
Optional accessories that may be needed:
253000
Floor Closer Cement Case
274750LH
Closer Cover
252050LH
Bottom Offset Arm
R180
Top Offset Pivot
M19LH
Intermediate Offset Pivots.
Additional finishes and accessories are available upon request for quotation.
Most shipping weights are approximate and have not been verified. If the exact weight is needed in order to determine shipping costs, and shipping costs are required in order for you to complete your order, please request this prior to submitting your order by contacting CRL Customer Service. Product images shown are of the actual product or a close representation. Colors can vary depending on your computer's video card and on how your monitor's color is adjusted.
Attributes
Adjustable Hydraulic Backcheck: Yes
Body Height: 4-1/16 in. (103.2 mm)
Body Length: 11-1/8 in. (282.6 mm)
Body Widt: 5-7/8 in. (149.2 mm)
Body Width: 5-7/8 in. (149.2 mm)
Brand: Rixson
Built In Positive Dead Stop: Yes
Certification: ANSI 156.4 Grade 1
Closer Body Only: Yes
Closer Type: Floor Closer
Compliance and Restrictions: Warning Reproductive Harm - www.p65warnings.ca.gov
Door Height May Require Intermediate Pivots: Yes
Door Opening: 105 °
Handing: Left Hand
Hold Open: 105
Independent Closing and Latching Valves: Yes
Interior Or Exterior Doors: Yes
Maximum Door Width - Exterior: 48 in. (1219.2 mm)
Maximum Door Width - Interior: 48 in. (1219.2 mm)
Maximum Weight Center Hung: 450 lbs. (204.1 kg)
Non Stocked Parts and Acessories Special Order: Yes
Recommended Door Type: Aluminum, Hollow Metal
Selective Hold Open: Yes
Series: 27
Shipping Limitations: None
Similar: CRL8370, CRL8372, J993HOD, J994HOD, J990NHOD
UL Listed: Yes
