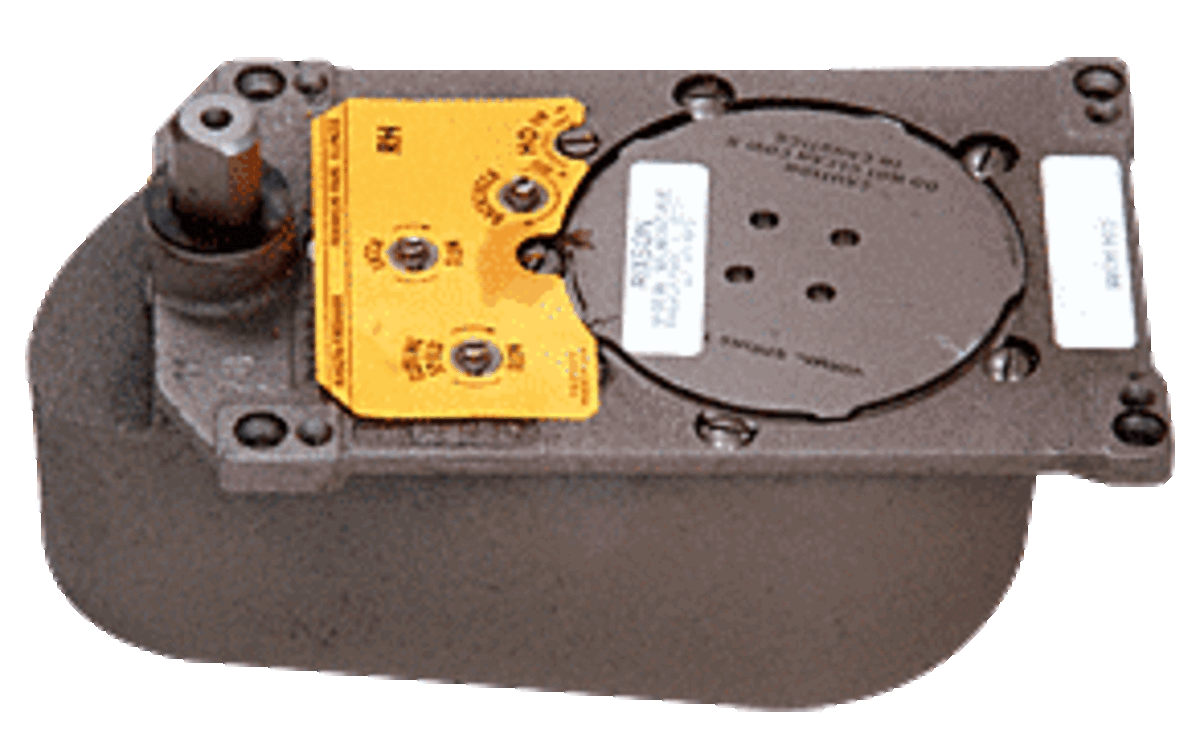

CRL 27105SH0RHB0DY Rixson 27 Series Right Hand 3/4" Offset Floor Closer Body OnlyC.R. Laurence Rixson 27 Series Right Hand 3/4" Offset 105 Selective Hold Open Floor Mounted Closer Body Only offers exceptional control and durability for both exterior and interior doors. This robust closer is engineered to support doors weighing up to 450 lbs. (204 kg) and measuring up to 48" (1.22 m) wide, making it an ideal solution for high-traffic areas. The selective on or off hold open feature provides flexibility in door operation, while the built-in positive dead stop enhances safety by preventing the door from swinging too far open. With separate independent valves for closing, latching, and backcheck adjustments, this closer allows for precise control and customization to meet specific needs. Designed with a direct connection between the bottom arm and the floor closer spindle, this model dramatically improves closing efficiency compared to surface-mounted or overhead concealed options. Its ANSI 156.4 Grade 1 certification ensures compliance with high standards of quality and reliability. For additional support, optional accessories such as floor closer cement cases and various offset arms are available. This closer is perfect for aluminum and hollow metal doors, making it a versatile choice for a range of applications. Choose C.R. Laurence for your door control needs, and experience the difference in performance and durability.
Rixson 27 Series Right Hand 3/4" Offset 105 Selective Hold Open Floor Mounted Closer Body Only
- For Exterior or Interior Doors Weighing Up to 450 Lbs. (204 kg) and 48" (1.22 m) Wide
- Selective On or Off Hold Open
- Built-in Positive Dead Stop
This
Rixson® Model 27 Offset Floor Mounted Door Closer provides the best mechanical means of controlling a door. The weight of the door is supported by the bottom arm, which is directly connected to the floor closer spindle. The direct connection between the bottom arm and the floor closer spindle creates a tremendous increase in closing efficiency compared to surface or overhead concealed closers. This closer is capable of supporting exterior or interior doors weighing up to 450 lbs. (204 kg) and 48" (1.22 m) Wide.
Standard features include selective on or off hold open, build-in positive dead stop, and separate independent valves for closing, latch and backcheck adjustments.
NOTE: CRL is a stocking Rixson® Specialty Door Control Distributor. If you need Rixson® products please contact our Technical Sales Department for assistance.
Optional accessories that may be needed:
253000 Floor Closer Cement Case
274750RH Closer Cover
252050RH Bottom Offset Arm
R180 Top Offset Pivot
M19RH Intermediate Offset Pivots.
Additional finishes and accessories are available upon request for quotation.
Most shipping weights are approximate and have not been verified. If the exact weight is needed in order to determine shipping costs, and shipping costs are required in order for you to complete your order, please request this prior to submitting your order by contacting CRL Customer Service. Product images shown are of the actual product or a close representation. Colors can vary depending on your computer's video card and on how your monitor's color is adjusted.
Attributes
Adjustable Hydraulic Backcheck: Yes
Body Height: 4-1/16 in. (103.2 mm)
Body Length: 11-1/8 in. (282.6 mm)
Body Widt: 5-7/8 in. (149.2 mm)
Body Width: 5-7/8 in. (149.2 mm)
Brand: Rixson
Built In Positive Dead Stop: Yes
Certification: ANSI 156.4 Grade 1
Closer Body Only: Yes
Closer Type: Floor Closer
Compliance and Restrictions: Warning Reproductive Harm - www.p65warnings.ca.gov
Door Height May Require Intermediate Pivots: Yes
Door Opening: 105 °
Handing: Right Hand
Hold Open: 105
Independent Closing and Latching Valves: Yes
Interior Or Exterior Doors: Yes
Maximum Door Width - Exterior: 48 in. (1219.2 mm)
Maximum Door Width - Interior: 48 in. (1219.2 mm)
Maximum Weight 3/4 Offset: 450 Pounds
Maximum Weight Center Hung: 450 lbs. (204.1 kg)
Non Stocked Parts and Acessories Special Order: Yes
Recommended Door Type: Aluminum, Hollow Metal
Selective Hold Open: Yes
Series: 27
Shipping Limitations: None
Similar: CRL8370, CRL8372, J993HOD, J994HOD, J990NHOD
UL Listed: Yes
