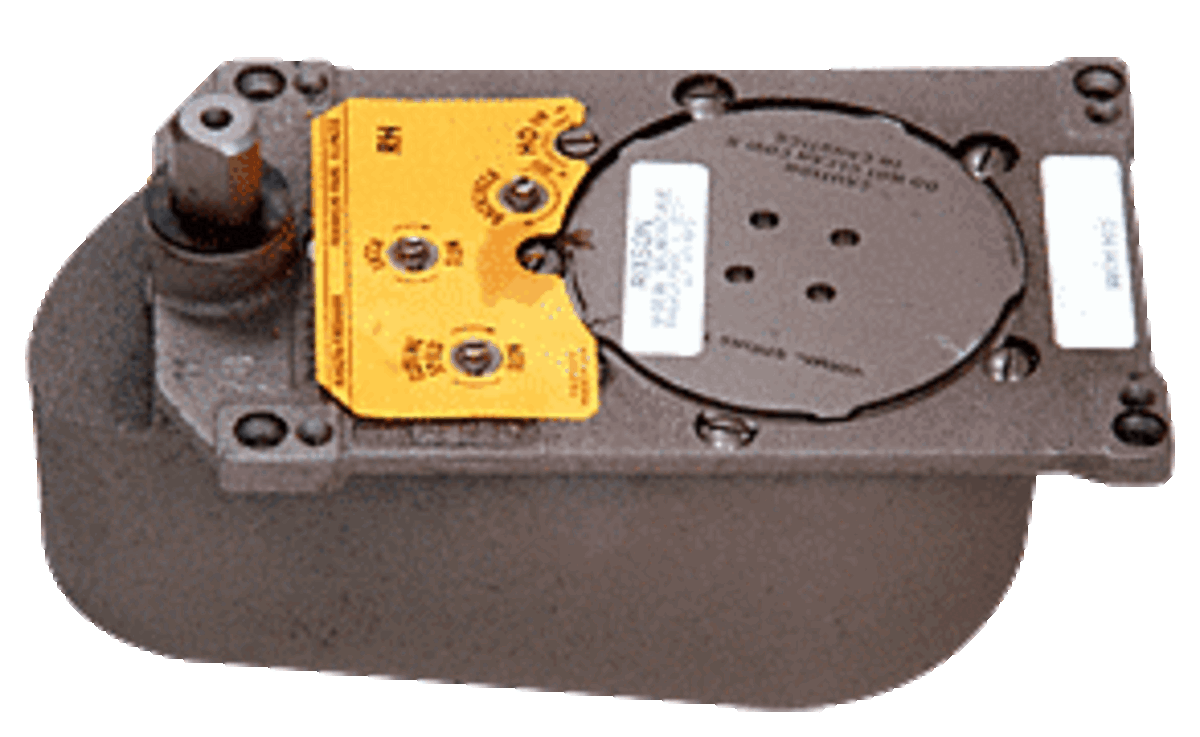

CRL 2790SH0RHB0DY Rixson 27 Series Right Hand 3/4" Offset 90 Floor Closer Body OnlyCRL 2790SH0RHB0DY Rixson 27 Series Right Hand 3/4" Offset 90 Selective Hold Open Floor Mounted Closer Body Only is engineered for superior door control, accommodating exterior or interior doors weighing up to 450 lbs. (204 kg) and measuring up to 48" (1.22 m) wide. This robust floor closer features a selective hold open function, allowing you to choose between maintaining the door in an open position or letting it close automatically. The design includes a built-in positive dead stop, enhancing safety and durability, while the connection between the bottom arm and the floor closer spindle significantly improves closing efficiency compared to traditional surface or overhead concealed closers. Independent valves for closing, latching, and backcheck adjustments give you precise control over the door's movement and response. With a body height of 4-1/16 in. (103.2 mm), a length of 11-1/8 in. (282.6 mm), and a width of 5-7/8 in. (149.2 mm), this closer is ANSI 156.4 Grade 1 certified, ensuring compliance with industry standards. Ideal for aluminum and hollow metal doors, the Rixson 27 series is a dependable choice for both commercial and residential applications. Optional accessories are available to enhance functionality.
Rixson 27 Series Right Hand 3/4" Offset 90 Selective Hold Open Floor Mounted Closer Body Only
- For Exterior or Interior Doors Weighing Up to 450 Lbs. (204 kg) and 48" (1.22 m) Wide
- Selective On or Off Hold Open
- Built-in Positive Dead Stop
This
Rixson® Model 27 Offset Floor Mounted Door Closer provides the best mechanical means of controlling a door. The weight of the door is supported by the bottom arm, which is directly connected to the floor closer spindle. The direct connection between the bottom arm and the floor closer spindle creates a tremendous increase in closing efficiency compared to surface or overhead concealed closers. This closer is capable of supporting exterior or interior doors weighing up to 450 lbs. (204 kg) and 48" (1.22 m) Wide.
Standard features include selective on or off hold open, build-in positive dead stop, and separate independent valves for closing, latch and backcheck adjustments.
NOTE: CRL is a stocking Rixson® Specialty Door Control Distributor. If you need Rixson® products please contact our Technical Sales Department for assistance.
Optional accessories that may be needed:
253000 Floor Closer Cement Case
274750RH Closer Cover
252050RH Bottom Offset Arm
R180 Top Offset Pivot
M19RH Intermediate Offset Pivots.
Additional finishes and accessories are available upon request for quotation.
Most shipping weights are approximate and have not been verified. If the exact weight is needed in order to determine shipping costs, and shipping costs are required in order for you to complete your order, please request this prior to submitting your order by contacting CRL Customer Service. Product images shown are of the actual product or a close representation. Colors can vary depending on your computer's video card and on how your monitor's color is adjusted.
Attributes
Adjustable Hydraulic Backcheck: Yes
Body Height: 4-1/16 in. (103.2 mm)
Body Length: 11-1/8 in. (282.6 mm)
Body Widt: 5-7/8 in. (149.2 mm)
Body Width: 5-7/8 in. (149.2 mm)
Brand: Rixson
Built In Positive Dead Stop: Yes
Certification: ANSI 156.4 Grade 1
Closer Body Only: Yes
Closer Type: Floor Closer
Compliance and Restrictions: Warning Reproductive Harm - www.p65warnings.ca.gov
Door Height May Require Intermediate Pivots: Yes
Door Opening: 90 °
Handing: Right Hand
Hold Open: 90
Independent Closing and Latching Valves: Yes
Interior Or Exterior Doors: Yes
Maximum Door Width - Exterior: 48 in. (1219.2 mm)
Maximum Door Width - Interior: 48 in. (1219.2 mm)
Maximum Weight 3/4 Offset: 450 Pounds
Maximum Weight Center Hung: 450 lbs. (204.1 kg)
Non Stocked Parts and Acessories Special Order: Yes
Recommended Door Type: Aluminum, Hollow Metal
Selective Hold Open: Yes
Series: 27
Shipping Limitations: None
Similar: CRL8370, CRL8372, J993HOD, J994HOD, J990NHOD
UL Listed: Yes
