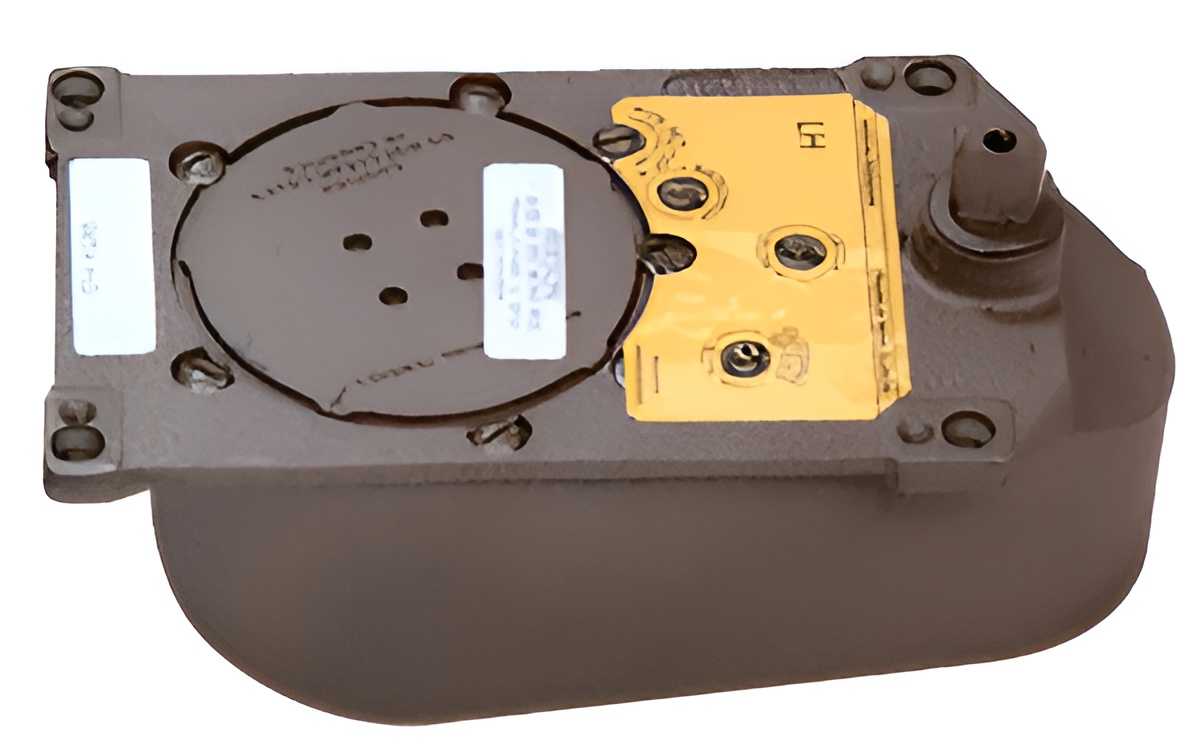

CRL 28105SH0LHB0DY Rixson 28 Series Left Hand Floor-Mounted Closer Body OnlyCRL 28105SH0LHB0DY Rixson 28 Series Center-Hung Left Hand 105 Selective Hold Open Floor Mounted Closer Body Only offers a robust solution for controlling heavy doors. Designed for both exterior and interior applications, this closer supports doors weighing up to 350 lbs. (158 kg) and measuring up to 48" (1.22 m) wide. Its floor-mounted design ensures exceptional closing efficiency, as the bottom arm directly connects to the floor closer spindle, minimizing wear and maximizing performance. This model features a selective hold open function, allowing users to choose whether the door will remain open or close automatically, which is perfect for high-traffic areas. Additionally, the built-in positive dead stop safeguards against over-rotation, enhancing the longevity of both the door and the closer. With independent valves for closing, latching, and backcheck adjustments, customization of door operation is straightforward. Meeting ANSI 156.4 Grade 1 certification standards, the Rixson 28 closer is engineered for durability and reliability. Optional accessories, including a closer cover and bottom center-hung arm, can further enhance its functionality. For complete solutions, consult CRL's Technical Sales Department for available finishes and special order parts.
Rixson 28 Series Center-Hung Left Hand 105 Selective Hold Open Floor Mounted Closer Body Only
- For Exterior or Interior Doors Weighing Up to 350 Lbs. (158 kg) and 48" (1.22 m) Wide
- Selective On or Off Hold Open
- Built-in Positive Dead Stop
This
Rixson® Model 28 Center-Hung Floor Mounted Door Closer provides the best mechanical means of controlling a door. The weight of the door is supported by the bottom arm, which is directly connected to the floor closer spindle. The direct connection between the bottom arm and the floor closer spindle creates a tremendous increase in closing efficiency compared to surface or overhead concealed closers. This closer is capable of supporting exterior or interior doors weighing up to 350 lbs. (158 kg) and 48" (1.22 m) Wide.
Standard features include selective on or off hold open, build-in positive dead stop, and separate independent valves for closing, latch and backcheck adjustments.
NOTE: CRL is a stocking Rixson® Specialty Door Control Distributor. If you need Rixson® products please contact our CRL Technical Sales Department for assistance.
Optional accessories that may be needed are:
253000
Floor Closer Cement Case
284720LH
Closer Cover
282026
Bottom Center-Hung Arm
340
Top Center-Hung Pivot
Additional finishes and accessories are available upon request for quotation.
Most shipping weights are approximate and have not been verified. If the exact weight is needed in order to determine shipping costs, and shipping costs are required in order for you to complete your order, please request this prior to submitting your order by contacting CRL Customer Service. Product images shown are of the actual product or a close representation. Colors can vary depending on your computer's video card and on how your monitor's color is adjusted.
Attributes
Adjustable Hydraulic Backcheck: Yes
Body Height: 4-1/16
Body Length: 11-1/8
Body Widt: 5-7/8
Body Width: 5-7/8
Brand: Rixson
Built In Positive Dead Stop: Yes
Certification: ANSI 156.4 Grade 1
Closer Body Only: Yes
Closer Type: Floor Closer
Compliance and Restrictions: Warning Reproductive Harm - www.p65warnings.ca.gov
Door Height: 102 in. (2590.8 mm)
Door Opening: 105
Handing: Left Hand
Hold Open: 105
Independent Closing and Latching Valves: Yes
Interior Or Exterior Doors: Yes
Maximum Door Width - Exterior: 48 Inches
Maximum Door Width - Interior: 48 Inches
Maximum Weight Center Hung: 350 Pounds
Non Stocked Parts and Acessories Special Order: Yes
Recommended Door Type: Aluminum, Hollow Metal
Selective Hold Open: Yes
Series: 28
Shipping Limitations: None
Similar: CRL8370, CRL8372, J993HOD, J994HOD, J990NHOD
UL Listed: Yes
