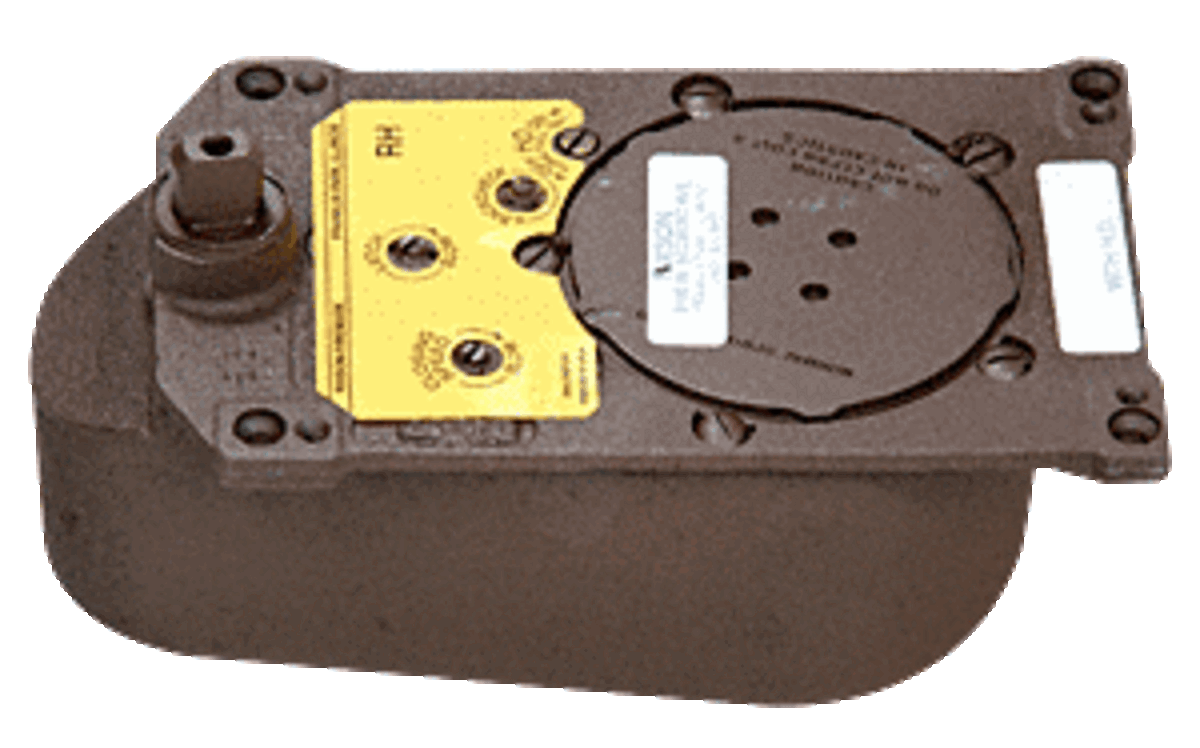

CRL 28105SH0RHB0DY Rixson 28 Series Right Hand Floor-Mounted Closer Body OnlyC.R. Laurence Rixson 28 Series Center-Hung Right Hand 105 Selective Hold Open Floor Mounted Closer Body Only is engineered to provide superior control and durability for both exterior and interior doors. This closer accommodates doors weighing up to 350 lbs. (158 kg) and measuring up to 48" (1.22 m) wide, making it a versatile choice for a variety of applications. The Rixson 28 features a selective on or off hold open mechanism, allowing for customizable door operation. Its built-in positive dead stop ensures that the door remains securely in place when opened, enhancing safety and functionality. The closer's independent valves for closing, latching, and backcheck adjustments offer precise control over door movement, ensuring smooth operation every time. Constructed with a robust body height of 4-1/16 in. (103.2 mm), length of 11-1/8 in. (282.6 mm), and width of 5-7/8 in. (149.2 mm), this floor-mounted closer is designed for long-lasting performance. It is certified to ANSI 156.4 Grade 1 standards, underscoring its reliability in high-traffic environments. For added convenience, optional accessories such as the Floor Closer Cement Case and Bottom Center-Hung Arm are available. Trust C.R. Laurence to deliver quality and performance with the Rixson 28 closer.
Rixson 28 Series Center-Hung Right Hand 105 Selective Hold Open Floor Mounted Closer Body Only
- For Exterior or Interior Doors Weighing Up to 350 Lbs. (158 kg) and 48" (1.22 m) Wide
- Selective On or Off Hold Open
- Built-in Positive Dead Stop
This
Rixson® Model 28 Center-Hung Floor Mounted Door Closer provides the best mechanical means of controlling a door. The weight of the door is supported by the bottom arm, which is directly connected to the floor closer spindle. The direct connection between the bottom arm and the floor closer spindle creates a tremendous increase in closing efficiency compared to surface or overhead concealed closers. This closer is capable of supporting exterior or interior doors weighing up to 350 lbs. (158 kg) and 48" (1.22 m) Wide.
Standard features include selective on or off hold open, build-in positive dead stop, and separate independent valves for closing, latch and backcheck adjustments.
NOTE: CRL is a stocking Rixson® Specialty Door Control Distributor. If you need Rixson® products please contact our Technical Sales Department for assistance.
Optional accessories that may be needed are:
253000
Floor Closer Cement Case
284720RH
Closer Cover
282026
Bottom Center-Hung Arm
340
Top Center-Hung Pivot
Additional finishes and accessories are available upon request for quotation.
Most shipping weights are approximate and have not been verified. If the exact weight is needed in order to determine shipping costs, and shipping costs are required in order for you to complete your order, please request this prior to submitting your order by contacting CRL Customer Service. Product images shown are of the actual product or a close representation. Colors can vary depending on your computer's video card and on how your monitor's color is adjusted.
Attributes
Ship via: No UPS - Common Carrier Only
Adjustable Hydraulic Backcheck: Yes
Body Height: 4-1/16 in. (103.2 mm)
Body Length: 11-1/8 in. (282.6 mm)
Body Widt: 5-7/8 in. (149.2 mm)
Body Width: 5-7/8 in. (149.2 mm)
Brand: Rixson
Built In Positive Dead Stop: Yes
Certification: ANSI 156.4 Grade 1
Closer Body Only: Yes
Closer Type: Floor Closer
Compliance and Restrictions: Warning Reproductive Harm - www.p65warnings.ca.gov
Door Height: 102 in. (2590.8 mm)
Door Opening: 105 °
Handing: Right Hand
Hold Open: 105
Independent Closing and Latching Valves: Yes
Interior Or Exterior Doors: Yes
Maximum Door Width - Exterior: 48 in. (1219.2 mm)
Maximum Door Width - Interior: 48 in. (1219.2 mm)
Maximum Weight Center Hung: 350 lbs. (158.8 kg)
Non Stocked Parts and Acessories Special Order: Yes
Recommended Door Type: Aluminum, Hollow Metal
Selective Hold Open: Yes
Series: 28
Shipping Limitations: None
Similar: CRL8370, CRL8372, J993HOD, J994HOD, J990NHOD
UL Listed: Yes
