CRL 28105SH0RHPC Rixson 28 Series Polished Chrome Right Hand Floor Closer - Complete PackageCRL 28105SH0RHPC Rixson Polished Chrome 28 Series Center-Hung Right Hand 105 Selective Hold Open Floor Mounted Closer is engineered for both exterior and interior doors, ensuring reliable performance in high-traffic environments. This floor-mounted closer features a selective hold open mechanism, allowing for customizable door operation, while supporting doors weighing up to 350 lbs (159 kg). Designed with a built-in positive dead stop, it prevents doors from swinging beyond the specified opening angle, which can be set to 90° or 105°. The adjustable hydraulic backcheck provides additional control, protecting the door and its surroundings from damage. The closer is ANSI 156.4 Grade 1 certified, ensuring it meets rigorous standards for quality and performance. It includes independent valves for adjusting closing speed, latching speed, and backcheck, giving installers flexibility to tailor the operation. Furnished with all necessary components for installation, including the closer body, cement case, finished cover plate, and bottom arm, it is a comprehensive package for building professionals. Backed by a 10-year limited warranty and UL listed for safety, the Rixson Floor Mounted Closer is a robust solution for enhancing door functionality and longevity in any architectural setting.
Rixson Polished Chrome 28 Series Center-Hung Right Hand 105 Selective Hold Open Floor Mounted Closer - Complete Package
- For Exterior or Interior Doors
- Selective Hold Open Feature
- 350 Lb. (159 kg) Capacity
- Built-In Positive Dead Stop
- Adjustable Backcheck
- ANSI 156.4 Grade 1
- 10 Year Limited Warranty
- UL Listed
Rixson® Floor Mounted Door Closers are a time proven product known for reliability and long-lasting service-free life. Floor Closers provide the best mechanical means of controlling a door. They produce an 85% closing force-to-opening force ratio, thereby allowing for lighter opening forces and yet maintaining control of the door. The weight of the door is supported entirely by the bottom arm, which is directly connected to the floor closer spindle. This design allows these closers to handle the rigors of high traffic volume and heavier than average doors.
Rixson® Floor Mounted Door Closers are available from CRL with multiple features and options, such as Selective Hold Open, Built-In Positive Dead Stop, Adjustable Hydraulic Backcheck. Other optional features, finishes, and accessories are available upon request.
FEATURES AND SPECIFICATIONS:
Single Acting, Handed
Selective Hold Open (SHO) Stocked
Separate and Independent Valves for Closing Speed, Latching Speed, and Backcheck Adjustments
Built-in Positive Dead Stop Prevents the Door From Swinging Beyond the Opening Degree Specified. (Stock 90º and 105º)
"PH" Models Meet ANSI A117.1 Physically Handicapped 8.5 Lb. A.D.A. Opening Force
350 Lb. (159 kg), 48" (1.22 m) Width Capacity.
Furnished with Wood and Machine Screws

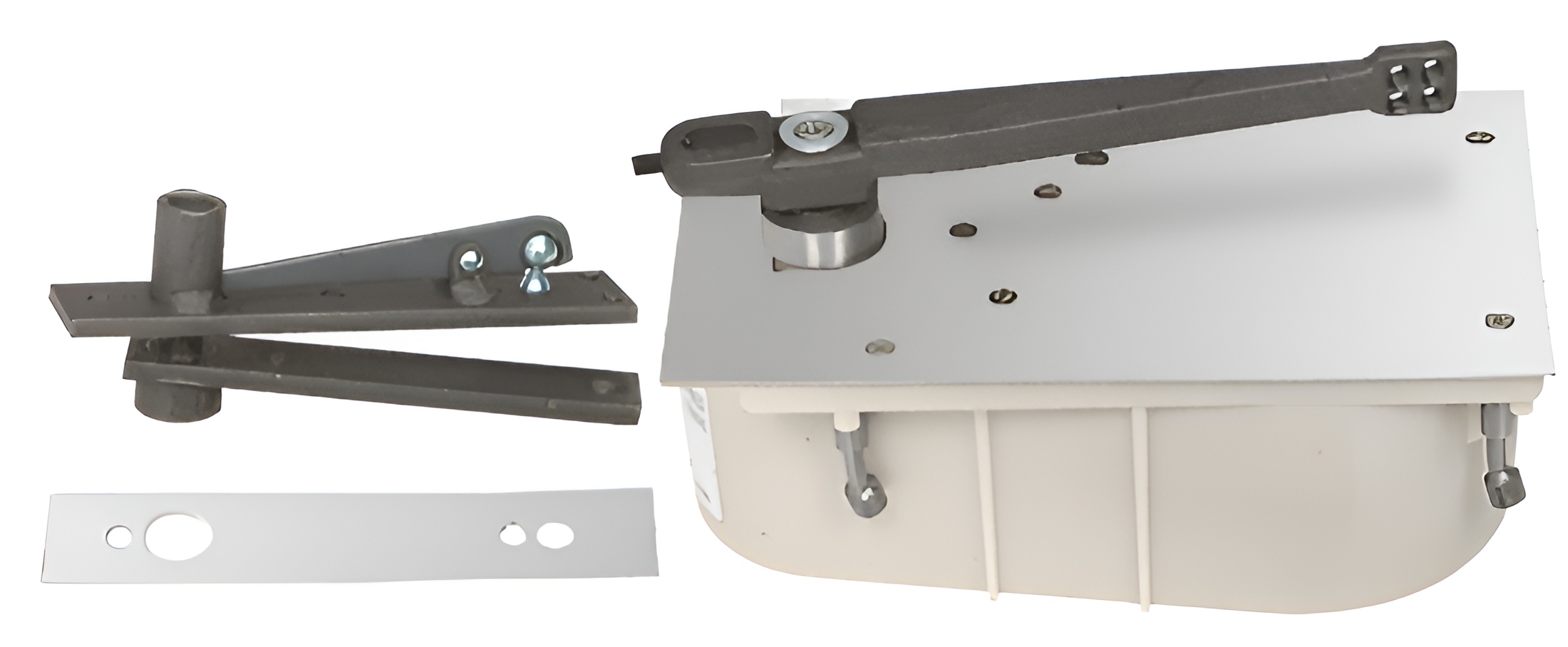

CONTENTS:
28 Series Center-Hung Closer Body
253000 Cement Case
284720 Finished Cover Plate
282026 Bottom Arm
340 Center-Hung Top Pivot
The following components are included to complete the job:
253000 Floor Closer Cement Case
284720RHCloser Cover
282026 Bottom Center-Hung Arm
340 Top Center-Hung Pivot
Additional finishes and accessories are available upon request for quotation.
Product Warning:
Closers set to comply with A.D.A. specified opening forces might not provide adequate spring power to control and close the door due to varying site conditions and door size.
Most shipping weights are approximate and have not been verified. If the exact weight is needed in order to determine shipping costs, and shipping costs are required in order for you to complete your order, please request this prior to submitting your order by contacting CRL Customer Service. Product images shown are of the actual product or a close representation. Colors can vary depending on your computer's video card and on how your monitor's color is adjusted.
Attributes
Ship via: No UPS - Common Carrier Only
Adjustable Back Check: Yes
Body Height: 4-1/16 in. (103.2 mm)
Body Length: 11-1/8 in. (282.6 mm)
Body Widt: 6-1/8 in. (155.6 mm)
Body Width: 6-1/8 in. (155.6 mm)
Built In Positive Dead Stop: Yes
Certification: ANSI 156.4 Grade 1
Closer Type: Floor Closer
Compliance and Restrictions: Warning Reproductive Harm - www.p65warnings.ca.gov
Door Height: 102 in. (2590.8 mm)
Door Opening: 105 °
Door Width Center Hung: 48 in. (1219.2 mm)
Finish/ Color:: Polished Chrome
Handing: Right Hand
Includes: 253000, 284720RHPC, 282026PC, 340PC
Interior Or Exterior Doors: Yes
Maximum Weight Center Hung: 350 lbs. (158.8 kg)
Package Type: Center Hung
Recommended Door Type: Aluminum, Hollow Metal
Replacement Parts: 253000, 284720RHPC
Selective Hold Open: Yes
Shipping Limitations: None
Similar: J990NHON, CRL9040AS, CRL9040CB, CRL9040TB, CRL9040AS, J580PS
Special Order: Non Stocked And Accessories
UL Listed: Yes
