CRL 2890SH0LHPC Rixson 28 Series Polished Chrome Left Hand Floor-Mounted Closer PackageCRL 2890SH0LHPC Rixson Polished Chrome 28 Series Center-Hung Left Hand 90 Selective Hold Open Floor Mounted Closer is an exceptional solution for managing both exterior and interior doors with ease. Designed for doors up to 350 lbs. (159 kg) and 48 inches in width, this closer offers a robust construction that ensures reliable performance in high-traffic areas. Featuring a selective hold open function, it allows doors to remain open at your desired angle while the built-in positive dead stop prevents over-swinging, providing added safety. The adjustable backcheck feature enhances control during door closure, accommodating various conditions and ensuring smooth operation. Additionally, this closer meets ANSI 156.4 Grade 1 standards, guaranteeing superior quality and durability. With a polished chrome finish, it not only performs exceptionally but also adds a touch of elegance to any environment. The package includes essential components like the closer body, cement case, finished cover plate, bottom arm, and top pivot, making installation straightforward. Backed by a 10-year limited warranty and UL listed for safety, the C.R. Laurence Rixson Floor Mounted Closer is a reliable choice for professionals seeking durability and functionality in their door hardware solutions.
Rixson Polished Chrome 28 Series Center-Hung Left Hand 90 Selective Hold Open Floor Mounted Closer - Complete Package
- For Exterior or Interior Doors
- Selective Hold Open Feature
- 350 Lb. (159 kg) Capacity
- Built-In Positive Dead Stop
- Adjustable Backcheck
- ANSI 156.4 Grade 1
- 10 Year Limited Warranty
- UL Listed
Rixson® Floor Mounted Door Closers are a time proven product known for reliability and long-lasting service-free life. Floor Closers provide the best mechanical means of controlling a door. They produce an 85% closing force-to-opening force ratio, thereby allowing for lighter opening forces and yet maintaining control of the door. The weight of the door is supported entirely by the bottom arm, which is directly connected to the floor closer spindle. This design allows these closers to handle the rigors of high traffic volume and heavier than average doors.
Rixson® Floor Mounted Door Closers are available from CRL with multiple features and options, such as Selective Hold Open, Built-In Positive Dead Stop, Adjustable Hydraulic Backcheck. Other optional features, finishes, and accessories are available upon request.
FEATURES AND SPECIFICATIONS:
Single Acting, Handed
Selective Hold Open (SHO) Stocked
Separate and Independent Valves for Closing Speed, Latching Speed, and Backcheck Adjustments
Built-in Positive Dead Stop Prevents the Door From Swinging Beyond the Opening Degree Specified. (Stock 90º and 105º)
"PH" Models Meet ANSI A117.1 Physically Handicapped 8.5 Lb. A.D.A. Opening Force
350 Lb. (159 kg), 48" (1.22 m) Width Capacity.
Furnished with Wood and Machine Screws

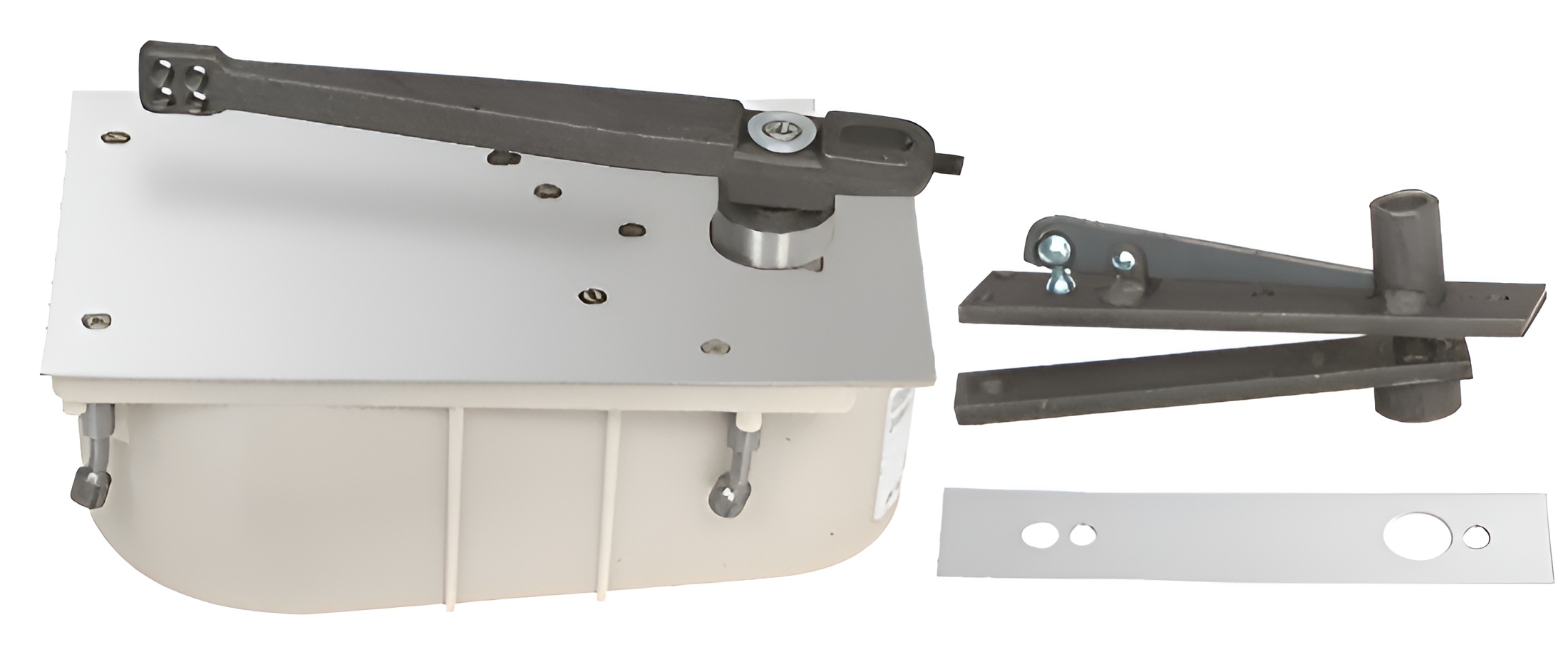

CONTENTS:
28 Series Center-Hung Closer Body
253000 Cement Case
284720 Finished Cover Plate
282026 Bottom Arm
340 Center-Hung Top Pivot
The following components are included to complete the job:
253000 Floor Closer Cement Case
284720RHCloser Cover
282026 Bottom Center-Hung Arm
340 Top Center-Hung Pivot
Additional finishes and accessories are available upon request for quotation.
Product Warning:
Closers set to comply with A.D.A. specified opening forces might not provide adequate spring power to control and close the door due to varying site conditions and door size.
Most shipping weights are approximate and have not been verified. If the exact weight is needed in order to determine shipping costs, and shipping costs are required in order for you to complete your order, please request this prior to submitting your order by contacting CRL Customer Service. Product images shown are of the actual product or a close representation. Colors can vary depending on your computer's video card and on how your monitor's color is adjusted.
Attributes
Ship via: No UPS - Common Carrier Only
Adjustable Back Check: Yes
Body Height: 4-1/16 in. (103.2 mm)
Body Length: 11-1/8 in. (282.6 mm)
Body Widt: 6-1/8 in. (155.6 mm)
Body Width: 6-1/8 in. (155.6 mm)
Built In Positive Dead Stop: Yes
Certification: ANSI 156.4 Grade 1
Closer Type: Floor Closer
Compliance and Restrictions: Warning Reproductive Harm - www.p65warnings.ca.gov
Door Height: 102 in. (2590.8 mm)
Door Opening: 90 °
Door Width Center Hung: 48 in. (1219.2 mm)
Finish/ Color:: Polished Chrome
Handing: Left Hand
Includes: 253000, 284720LHPC, 282026PC, 340PC
Interior Or Exterior Doors: Yes
Maximum Weight Center Hung: 350 lbs. (158.8 kg)
Package Type: Center Hung
Recommended Door Type: Aluminum, Hollow Metal
Replacement Parts: 253000, 284720LHPC
Selective Hold Open: Yes
Shipping Limitations: None
Similar: J990NHON, CRL9040AS, CRL9040CB, CRL9040TB, CRL9040AS, J580PS
Special Order: Non Stocked And Accessories
UL Listed: Yes
