CRL 311085PL7313 Dark Bronze Jackson 10 Series Left-Hand Reverse Bevel Exit DeviceCRL 311085PL7313 Dark Bronze Jackson 10 Series Left-Hand Reverse Bevel Paddle Concealed Vertical Rod Exit Device sets the standard for aluminum storefront hardware. Designed to accommodate 1-3/4" (44 mm) narrow, medium, and wide stile aluminum, wood, or hollow metal doors, this exit device combines reliability with security. Its concealed fastening enhances safety while providing a sleek appearance, making it ideal for modern architectural demands. The device features a contoured field-sizeable 48" (1.22 m) long crossbar and a dual dogging feature, accessible via an outside cylinder or dogging pins on the panic housing. Engineered for longevity and maintenance-free operation, the 10 Series Paddle Device is suitable for doors up to 84" (2.13 m) tall, with extensions available for taller configurations. Crafted from high tensile strength aluminum, with mechanical components made of stainless and hardened plated steel, it guarantees durability. The sintered steel latch and strikes further enhance its performance. UL listed for safety, the device requires a mortise cylinder and No. 30821J mounting pad for keyed entry, ensuring compliance with industry standards. Choose the CRL 311085PL7313 for a dependable and stylish exit solution that meets the needs of any building professional or discerning homeowner.

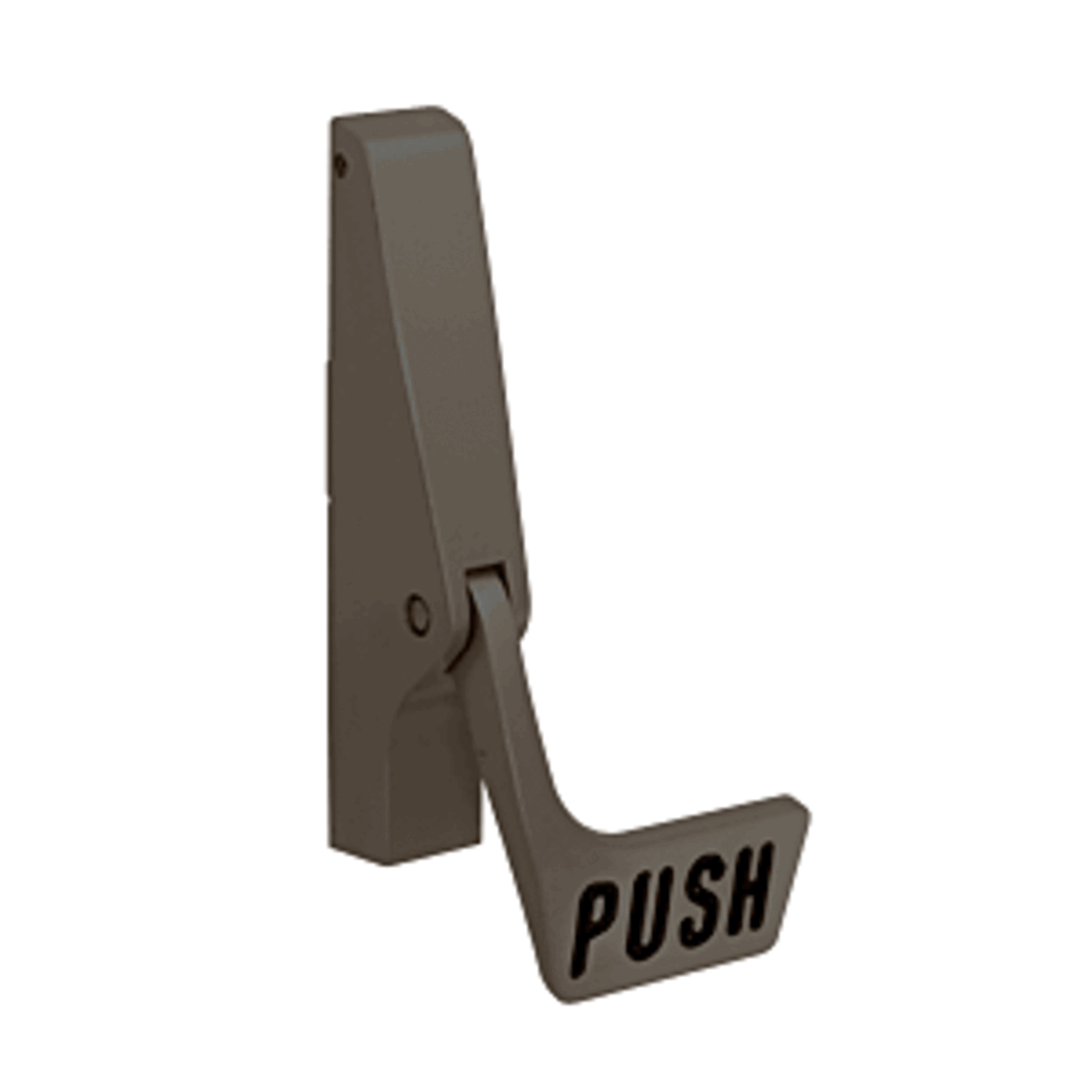

Dark Bronze Jackson 10 Series Left-Hand Reverse Bevel Paddle Concealed Vertical Rod Exit Device
- Designed for Use With 1-3/4" (44 mm) Narrow, Medium, and Wide Stile Aluminum, Wood, or Hollow Metal Doors
- Available with Crossbar or Engraved "Push" Paddle Operation on Active Side
- Concealed Fastening for Added Security
CRL Jackson® Exit Devices are universally recognized as the standard for aluminum storefront hardware. This device is designed with simplicity in mind, yet it will provide many years of smooth, reliable operation. Available in both a Rim and Concealed Vertical Rod version, this device is suitable for use with 1-3/4" (44.5 mm) narrow, medium, and wide stile aluminum, wood, or hollow metal doors. The device is shipped to fit up to 84" (2.13 m) tall door. Extensions for taller doors are available. The 10 Series Paddle Device is the perfect solution when considering a reliable maintenance free device.
SPECIFICATIONS:
Contoured Field Sizeable 48" (1.22 m) Long Crossbar
Dual Dogging Feature - By Outside Cylinder - By Dogging Pins on Panic Housing
Wear Points Insulated by Nylon Sleeves and Rollers
1085 Concealed Vertical Rod Device
Standard Height 84" (2.13 m)
Requires Mortise Cylinder and No. 30821J Mounting Pad for Keyed Entry
MATERIALS:
Body and Arms: High Tensile Strength Aluminum
Mechanical Components: Stainless and Hardened Plated Steel
Latch and Strikes: Sintered Steel
Most shipping weights are approximate and have not been verified. If the exact weight is needed in order to determine shipping costs, and shipping costs are required in order for you to complete your order, please request this prior to submitting your order by contacting CRL Customer Service. Product images shown are of the actual product or a close representation. Colors can vary depending on your computer's video card and on how your monitor's color is adjusted.
Attributes
Brand: Jackson
Certification: ANSI/BHMA 156.3
Compliance and Restrictions: Warning Reproductive Harm - www.p65warnings.ca.gov
Door Thickness: 1-3/4
Finish/ Color:: Dark Bronze
Handing: Left Hand Reverse Bevel (LHR)
Includes: Mounting Hardware
Material - Housing: Aluminum
Material - Latch & Strike: Sintered Steel
Material - Mechanical Components: Stainless and Hardened Plated Steel
Minimum Stile Width: 1-3/4
Model: 1085 Paddle
Paddle Push Width: 3-3/8
Panic Bar Projection: 4-5/8
Panic Dogging: Screw Driver
Panic Head Base Width: 1-1/4 Inches
Panic Head Height: 7-5/16
Panic Type: Rim (Paddle)
Recommended Door Type: Narrow, Medium, Wide Stile Aluminum, Wood, Hollow Metal Doors
Replacement Parts: 30115, 301117313, 301409, DL911SCKDDU, DL911SCKADU
Series: 10
Shipping Limitations: None
UL Listed: Yes
