CRL 311085PL7628 Satin Aluminum Jackson 10 Left-Hand Reverse Bevel Vertical Rod Exit DeviceCRL 311085PL7628 Satin Aluminum Jackson 10 Series Left-Hand Reverse Bevel Paddle Concealed Vertical Rod Exit Device is engineered to deliver unparalleled performance and security for various door types. This exit device is compatible with 1-3/4" (44 mm) narrow, medium, and wide stile aluminum, wood, or hollow metal doors, making it a versatile choice for any commercial application. Designed with a concealed fastening system, this device enhances security while maintaining a sleek appearance. The device features a dual dogging mechanism, allowing for easy operation via an outside cylinder or dogging pins on the panic housing. Its robust construction incorporates high tensile strength aluminum for the body and arms, complemented by stainless and hardened plated steel mechanical components, ensuring durability and long-lasting reliability. Measuring up to 84" (2.13 m) in height, this device is shipped ready for standard doors, with extensions available for taller installations. The contoured, field-sizeable 48" (1.22 m) long crossbar is designed for effortless operation. Additionally, the paddle's push width of 3-3/8" and panic bar projection of 4-5/8" provide a user-friendly experience. Certified to ANSI/BHMA 156.3 standards and UL listed, this exit device exemplifies quality and safety for any architectural setting.

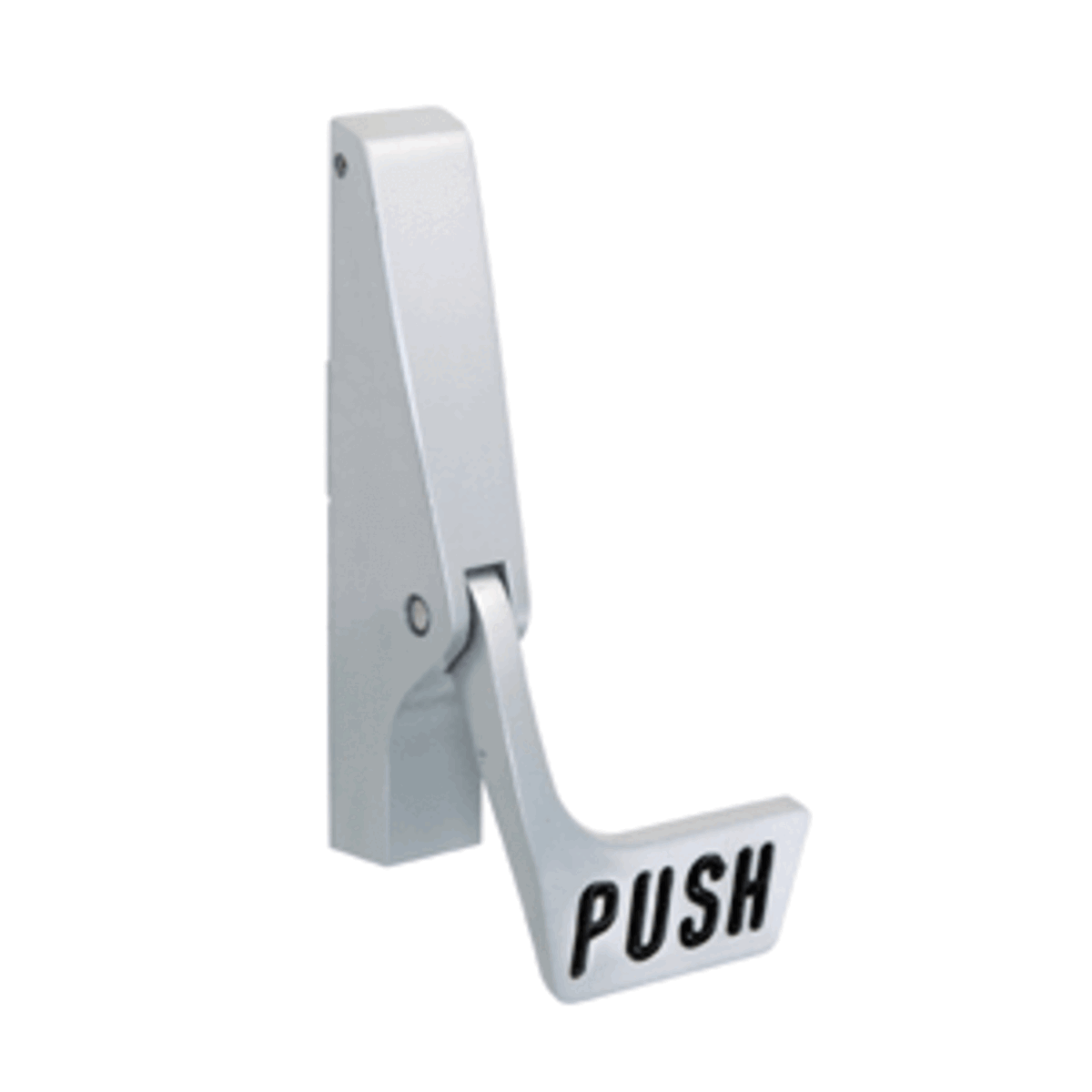

Satin Aluminum Jackson 10 Series Left-Hand Reverse Bevel Paddle Concealed Vertical Rod Exit Device
- Designed for Use With 1-3/4" (44 mm) Narrow, Medium, and Wide Stile Aluminum, Wood or Hollow Metal Doors
- Available with Crossbar or Engraved "Push" Paddle Operation on Active Side
- Concealed Fastening for Added Security
CRL Jackson® Exit Devices are universally recognized as the standard for aluminum storefront hardware. This device is designed with simplicity in mind, yet it will provide many years of smooth, reliable operation. Available in both a Rim and Concealed Vertical Rod version, this device is suitable for use with 1-3/4" (44.5 mm) narrow, medium, and wide stile aluminum, wood, or hollow metal doors. The device is shipped to fit up to 84" (2.13 m) tall door. Extensions for taller doors are available. The 10 Series Paddle Device is the perfect solution when considering a reliable maintenance free device.
SPECIFICATIONS:
Contoured Field Sizeable 48" (1.22 m) Long Crossbar
Dual Dogging Feature - By Outside Cylinder - By Dogging Pins on Panic Housing
Wear Points Insulated by Nylon Sleeves and Rollers
1085 Concealed Vertical Rod Device
Standard Height 84" (2.13 m)
Requires Mortise Cylinder and No. 30821J Mounting Pad for Keyed Entry
MATERIALS:
Body and Arms: High Tensile Strength Aluminum
Mechanical Components: Stainless and Hardened Plated Steel
Latch and Strikes: Sintered Steel
Most shipping weights are approximate and have not been verified. If the exact weight is needed in order to determine shipping costs, and shipping costs are required in order for you to complete your order, please request this prior to submitting your order by contacting CRL Customer Service. Product images shown are of the actual product or a close representation. Colors can vary depending on your computer's video card and on how your monitor's color is adjusted.
Attributes
Brand: Jackson
Certification: ANSI/BHMA 156.3
Compliance and Restrictions: Warning Reproductive Harm - www.p65warnings.ca.gov
Door Thickness: 1-3/4
Finish/ Color:: Satin Aluminum
Handing: Left Hand Reverse Bevel (LHR)
Includes: Mounting Hardware
Material - Housing: Aluminum
Material - Latch & Strike: Sintered Steel
Material - Mechanical Components: Stainless and Hardened Plated Steel
Minimum Stile Width: 1-3/4
Model: 1085 Paddle
Paddle Push Width: 3-3/8
Panic Bar Projection: 4-5/8
Panic Dogging: Screw Driver
Panic Head Base Width: 1-1/4 Inches
Panic Head Height: 7-5/16
Panic Type: Rim (Paddle)
Recommended Door Type: Narrow, Medium, Wide Stile Aluminum, Wood, Hollow Metal Doors
Replacement Parts: 30115, 301117313, 301409, DL911SCKDDU, DL911SCKADU
Series: 10
Shipping Limitations: None
UL Listed: Yes
