CRL 311085PR7628 Satin Aluminum Jackson 10 Series Right Hand Reverse Bevel Exit DeviceC.R. Laurence 311085PR7628 Satin Aluminum Jackson 10 Series Right Hand Reverse Bevel Paddle Concealed Vertical Rod Exit Device combines functionality with durability, making it an excellent choice for various commercial applications. Designed for 1-3/4" (44 mm) narrow, medium, and wide stile aluminum, wood, or hollow metal doors, this exit device is universally recognized as a standard in aluminum storefront hardware. Its concealed fastening enhances security while the dual dogging feature, accessible from the outside cylinder, ensures ease of operation. The device includes a contoured field-sizeable 48" (1.22 m) long crossbar and is designed to fit doors up to 84" (2.13 m) tall, with extensions available for taller installations. Built from high tensile strength aluminum and featuring mechanical components of stainless and hardened plated steel, it guarantees reliable, maintenance-free performance over the years. The paddle operation, available with an engraved "Push" option, adds to its user-friendly design. Additional specifications include a panic bar projection of 4-5/8 in. (117.5 mm) and a paddle push width of 3-3/8 in. (85.7 mm). Certified to ANSI/BHMA 156.3 standards, the Jackson 10 Series Exit Device exemplifies quality and safety, making it a preferred choice for building professionals.

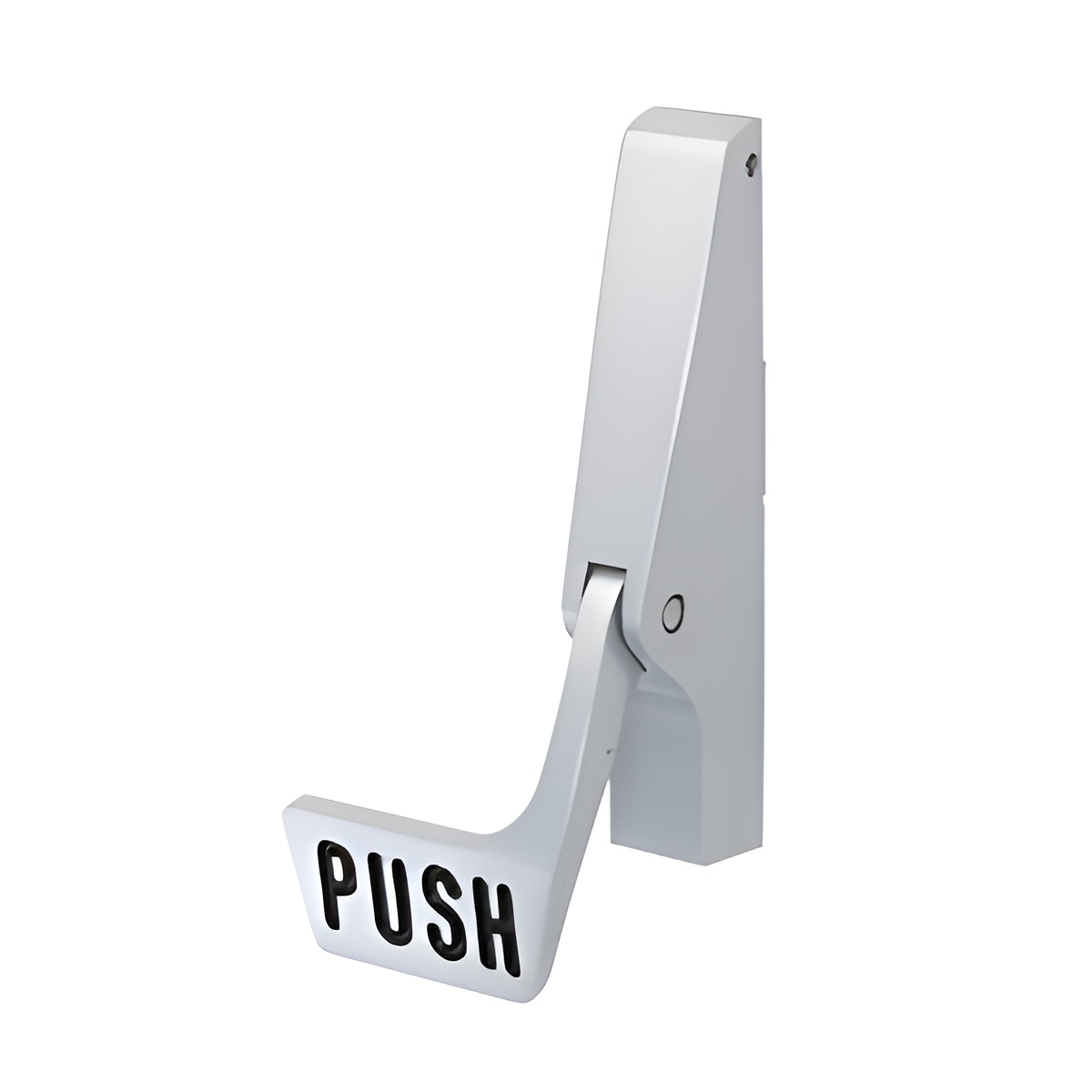

Satin Aluminum Jackson 10 Series Right Hand Reverse Bevel Paddle Concealed Vertical Rod Exit Device
- Designed for Use With 1-3/4" (44 mm) Narrow, Medium, and Wide Stile Aluminum, Wood, or Hollow Metal Doors
- Available with Crossbar or Engraved "Push" Paddle Operation on Active Side
- Concealed Fastening for Added Security
CRL Jackson® Exit Devices are universally recognized as the standard for aluminum storefront hardware. This device is designed with simplicity in mind, yet it will provide many years of smooth, reliable operation. Available in both a Rim and Concealed Vertical Rod version, this device is suitable for use with 1-3/4" (44.5 mm) narrow, medium, and wide stile aluminum, wood, or hollow metal doors. The device is shipped to fit up to 84" (2.13 m) tall door. Extensions for taller doors are available. The 10 Series Paddle Device is the perfect solution when considering a reliable maintenance free device.
SPECIFICATIONS:
Contoured Field Sizeable 48" (1.22 m) Long Crossbar
Dual Dogging Feature – By Outside Cylinder - By Dogging Pins on Panic Housing
Wear Points Insulated by Nylon Sleeves and Rollers
1085 Concealed Vertical Rod Device
Standard Height 84" (2.13 m)
Requires Mortise Cylinder and No. 30821J
Mounting Pad for Keyed Entry
MATERIALS:
Body and Arms: High Tensile Strength Aluminum
Mechanical Components: Stainless and Hardened Plated Steel
Latch and Strikes: Sintered Steel
Most shipping weights are approximate and have not been verified. If the exact weight is needed in order to determine shipping costs, and shipping costs are required in order for you to complete your order, please request this prior to submitting your order by contacting CRL Customer Service. Product images shown are of the actual product or a close representation. Colors can vary depending on your computer's video card and on how your monitor's color is adjusted.
Attributes
Brand: Jackson
Certification: ANSI/BHMA 156.3
Compliance and Restrictions: Warning Reproductive Harm - www.p65warnings.ca.gov
Door Height: 84 in. (2133.6 mm)
Door Thickness: 1-3/4 in. (44.5 mm)
Finish/ Color:: Aluminum
Handing: Right Hand Reverse Bevel (RHR)
Includes: Mounting Hardware
Material - Housing: Aluminum
Material - Latch & Strike: Sintered Steel
Material - Mechanical Components: Stainless and Hardened Plated Steel
Minimum Stile Width: 1-3/4 in. (44.5 mm)
Model: 1085 Paddle
Paddle Push Width: 3-3/8 in. (85.7 mm)
Panic Bar Projection: 4-5/8 in. (117.5 mm)
Panic Dogging: Screw Driver
Panic Head Base Width: 1-1/4 in. (31.8 mm)
Panic Head Height: 7-5/16 in. (185.7 mm)
Panic Type: Concealed Vertical Rods (Paddle)
Recommended Door Type: Narrow, Medium, Wide Stile, Aluminum, Hollow Metal
Replacement Parts: 30115, 301117628, 301117628, 301347, 301348, 30934628, 30320628, DL2170SCKDA, DL2070SCKAA
Series: 10
Shipping Limitations: None
UL Listed: Yes
