CRL 311285L37628 Satin Aluminum 36" Jackson 1285 Left Hand Panic Exit DeviceC.R. Laurence 311285L37628 Satin Aluminum 36" Jackson 1285 Push Pad Concealed Vertical Rod Left Hand Reverse Bevel Panic Exit Device offers a perfect blend of style and functionality. Designed for 1-3/4" (44 mm) narrow, medium, and wide stile aluminum, wood, or hollow metal doors, this exit device is ideal for high-traffic environments. The soft-touch smooth action push-pad allows for easy operation, requiring only a slight pressure for instant release of the locking mechanism. With a sleek design, this device projects just 2-7/8" (73 mm) from the door surface, ensuring minimal obstruction while maintaining a modern aesthetic. It features standard hex key dogging for added security and ease of use, and the base can be cut to size for a customized fit. The vertical rods are shipped to accommodate doors up to 84" (2.13 m) tall, with options for extensions or longer rods available for taller doors. Constructed from durable extruded aluminum and stainless steel components, the 311285L37628 is built to withstand daily wear and tear while ensuring longevity. This exit device is ANSI/BHMA 156.3 certified, providing peace of mind for compliance with safety standards. Enhance your building's exit solutions with the reliability of C.R. Laurence.

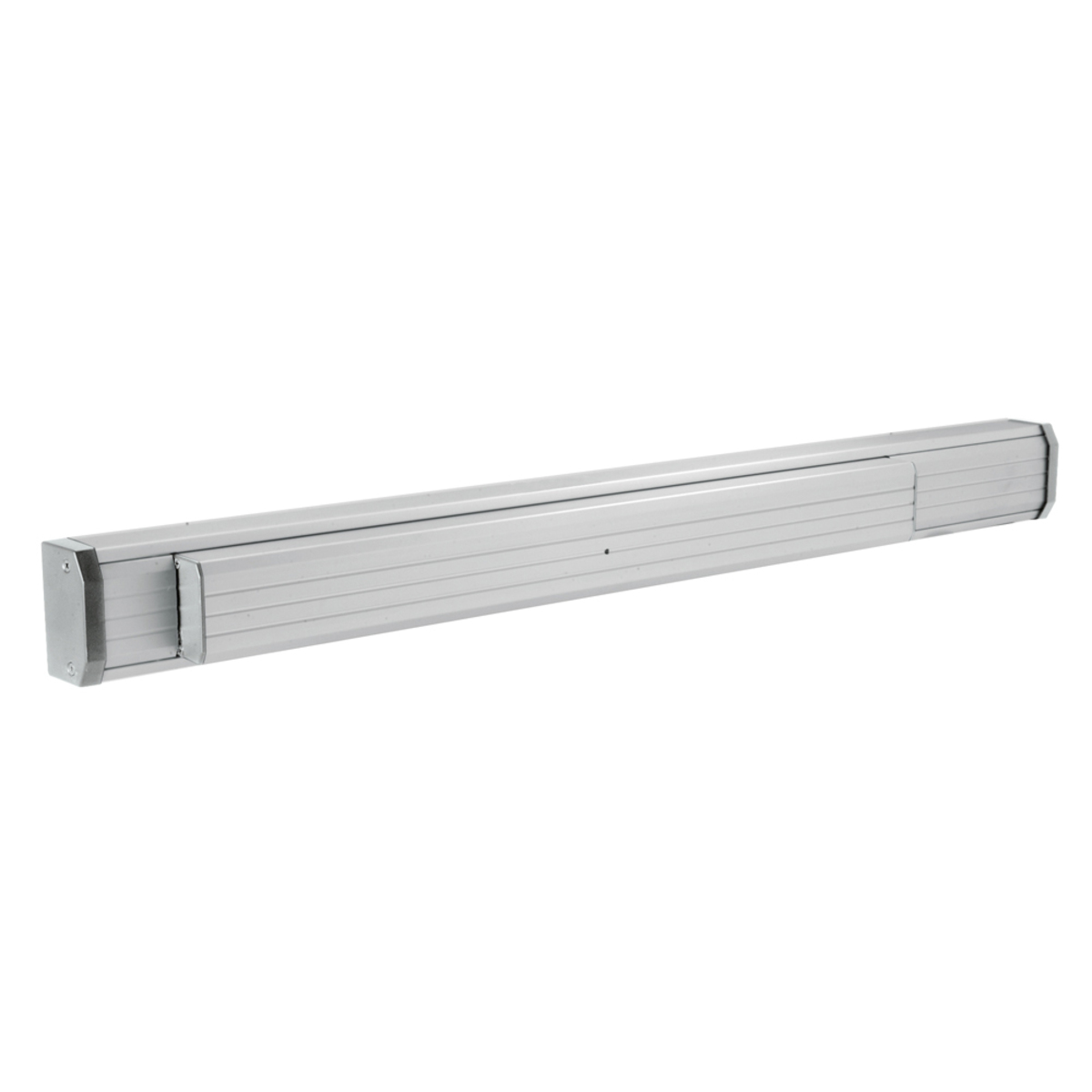

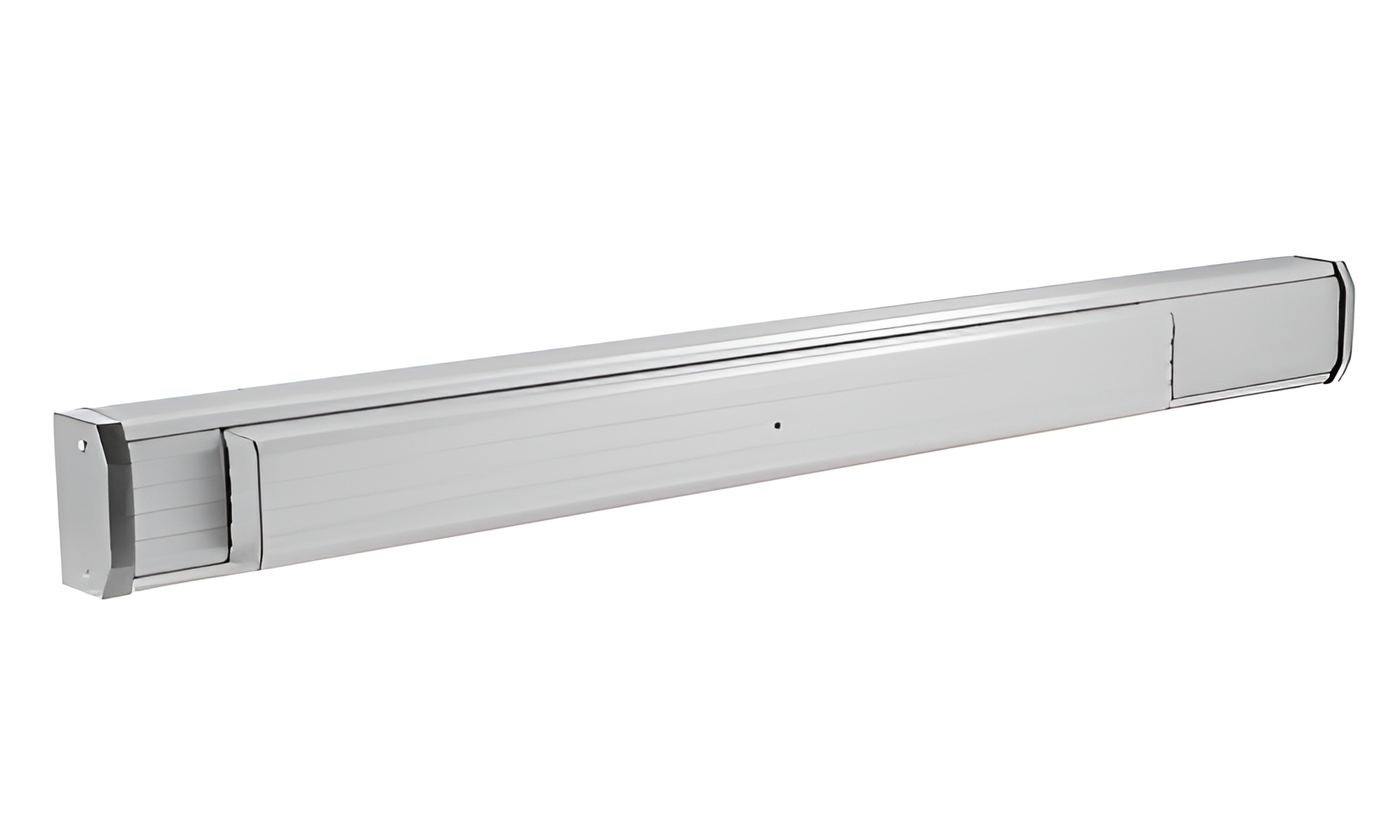

Satin Aluminum 36" Jackson 1285 Push Pad Concealed Vertical Rod Left Hand Reverse Bevel Panic Exit Device
- Designed for Use with 1-3/4" (44 mm) Narrow, Medium, and Wide Stile Aluminum, Wood or Hollow Metal Doors
- Soft-Touch Smooth Action Push-Pad
- Can Be Cut to Size
- Standard Hex Key Dogging
This
CRL Jackson® Exit Device blends the reliability of the time-proven 10 Series Crossbar Device with the sleek, contemporary style of today's modern push-pad exit device. Available in a Rim, Concealed, and Surface Vertical Rod versions, this device is suitable for use with 1-3/4" (44.5 mm) narrow, medium, and wide stile aluminum, wood, or hollow metal doors. The base is easily trimmed for field sizing, and the vertical rods are shipped to fit up to 84" (2.13 m) tall doors. Extensions or longer rods for taller doors are available. This Exit Device features an easy-to-use dogging system, and is also available with keyed cylinder dogging.
The 1200 Series touch pad with "Soft-Touch" insert requires slight pressure anywhere on the bar insert for instant release of the locking mechanism. Overall projection is only 2-7/8" (73 mm) from the door surface, and mounting hardware is concealed. Active outside trim and other panic accessories are available.
SPECIFICATIONS:
1285 Concealed Vertical Rod Device
Stocked in Both 36" and 48" (914 mm and 1.22 m) Widths
Standard Height 84" (2.13 m) - Extension Available
Requires Series 30821J Cylinder Mounting Pad When Using Mortise Cylinder for Keyed Outside Entry
MATERIALS:
Base and Push-Pad: Extruded Aluminum
Mechanical Components: Stainless and Hardened, Plated Steel
Latch and Strikes: Sintered Steel
Metal End Caps
Product Warning:
If this item is ordered with the "Cylinder Dogging" feature, the manufacturer does not provide the cylinder, only the prep. It requires a 1-1/8" (28.6 mm) length mortise cylinder, which is not stocked by CRL, but can be special ordered.
Most shipping weights are approximate and have not been verified. If the exact weight is needed in order to determine shipping costs, and shipping costs are required in order for you to complete your order, please request this prior to submitting your order by contacting CRL Customer Service. Product images shown are of the actual product or a close representation. Colors can vary depending on your computer's video card and on how your monitor's color is adjusted.
Attributes
Brand: Jackson
Certification: ANSI/BHMA 156.3
Compliance and Restrictions: Warning Reproductive Harm - www.p65warnings.ca.gov
Door Height: 84 in. (2133.6 mm)
Door Thickness: 1-3/4 in. (44.5 mm)
Door Width: 36 in. (914.4 mm)
Finish/ Color:: Aluminum
Handing: Left Hand Reverse Bevel (LHR)
Includes: Mounting Hardware
Material - End Cap: Aluminum
Material - Housing: Aluminum
Material - Latch & Strike: Sintered Steel
Material - Mechanical Components: Stainless and Hardened Plated Steel
Minimum Stile Width: 1-3/4 in. (44.5 mm)
Model: 1285
Panic Bar Base Height: 3-3/16 in. (81 mm)
Panic Bar Projection: 2-7/8 in. (73 mm)
Panic Bar Width Net: 34-1/2 in. (876.3 mm)
Panic Dogging: Standard Hex Key Dogging
Panic Type: Concealed Vertical Rods
Push Pad Width: 24 in. (609.6 mm)
Recommended Door Type: Aluminum Narrow, Medium, Wide Stile, Hollow Metal
Replacement Parts: 302861, 30821J628
Series: 1200
Shipping Limitations: None
Tall Door Extention Rods: 301347 & 301348
UL Listed: Yes
