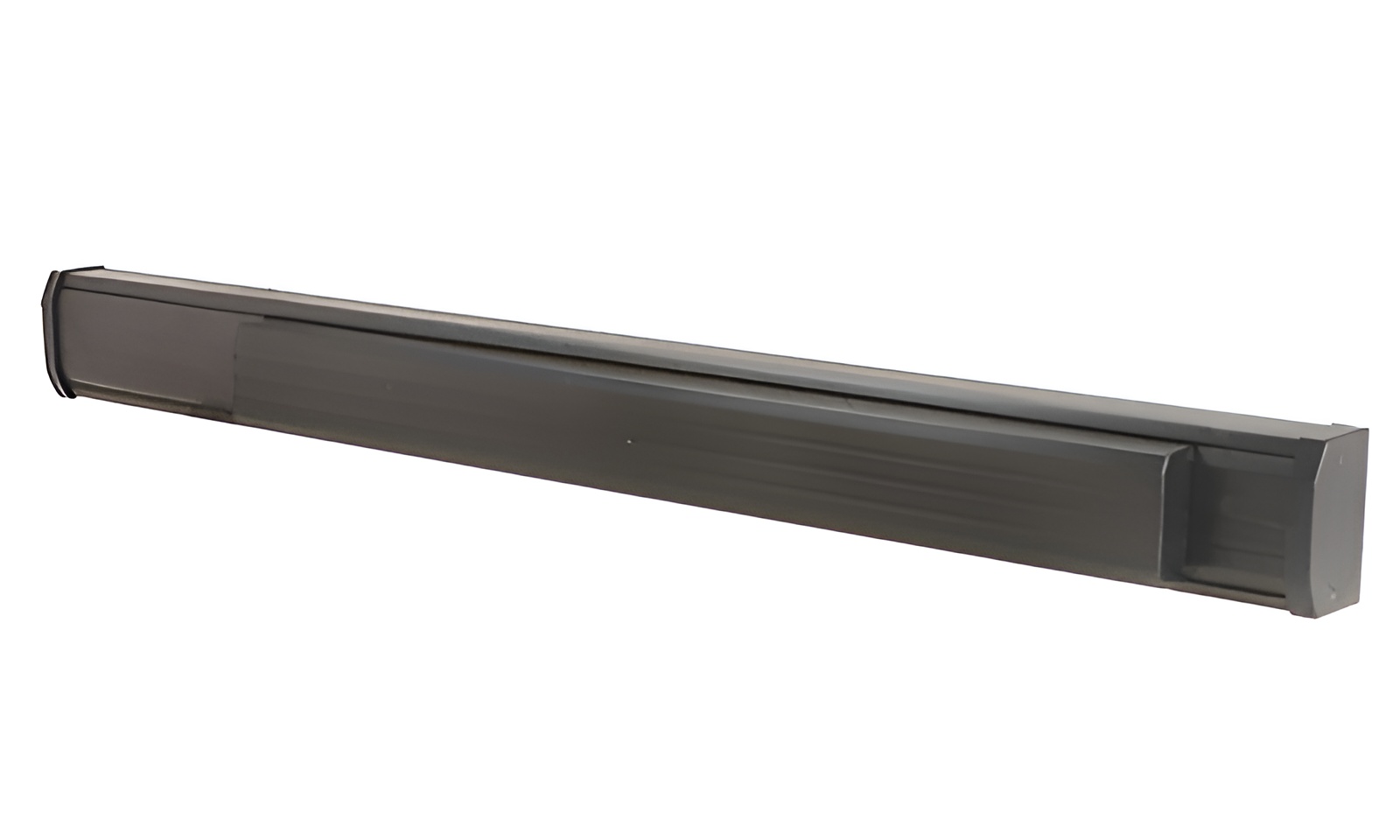

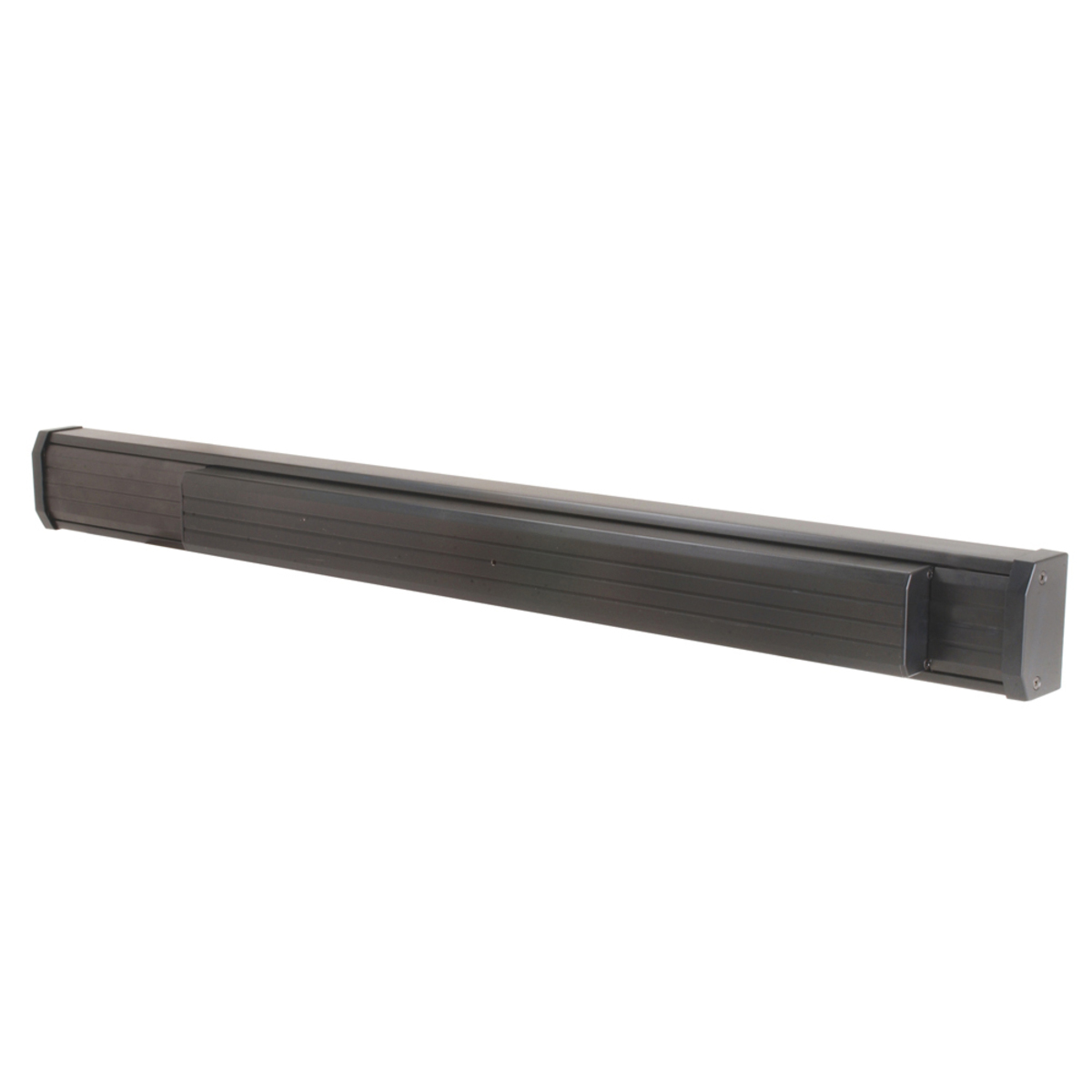

blends the reliability of the time-proven 10 Series Crossbar Device with the sleek, contemporary style of today's modern push-pad exit device. Available in a Rim, Concealed, and Surface Vertical Rod versions, this device is suitable for use with 1-3/4" (44.5 mm) narrow, medium, and wide stile aluminum, wood, or hollow metal doors. The base is easily trimmed for field sizing, and the vertical rods are shipped to fit up to 84" (2.13 m) tall doors. Extensions or longer rods for taller doors are available. This Exit Device features an easy-to-use dogging system, and is also available with keyed cylinder dogging.
The 1200 Series touch pad with "Soft-Touch" insert requires slight pressure anywhere on the bar insert for instant release of the locking mechanism. Overall projection is only 2-7/8" (73 mm) from the door surface, and mounting hardware is concealed. Active outside trim and other panic accessories are available.
Attributes
Brand: Jackson
Certification: ANSI/BHMA 156.3
Compliance and Restrictions: Warning Reproductive Harm - www.p65warnings.ca.gov
Door Height: 84 in. (2133.6 mm)
Door Thickness: 1-3/4 in. (44.5 mm)
Door Width: 36 in. (914.4 mm)
Finish/ Color:: Dark Bronze
Handing: Right Hand Reverse Bevel (RHR)
Includes: Mounting Hardware
Material - End Cap: Aluminum
Material - Housing: Aluminum
Material - Latch & Strike: Sintered Steel
Material - Mechanical Components: Stainless and Hardened Plated Steel
Minimum Stile Width: 1-3/4 in. (44.5 mm)
Model: 1285
Panic Bar Base Height: 3-3/16 in. (81 mm)
Panic Bar Projection: 2-7/8 in. (73 mm)
Panic Bar Width Net: 34-1/2 in. (876.3 mm)
Panic Dogging: Standard Hex Key Dogging
Panic Type: Concealed Vertical Rods
Push Pad Width: 24 in. (609.6 mm)
Recommended Door Type: Aluminum Narrow, Medium, Wide Stile, Hollow Metal
Replacement Parts: 302861, 30821J313
Series: 1200
Shipping Limitations: None
Tall Door Extention Rods: 301347 & 301348
UL Listed: Yes
