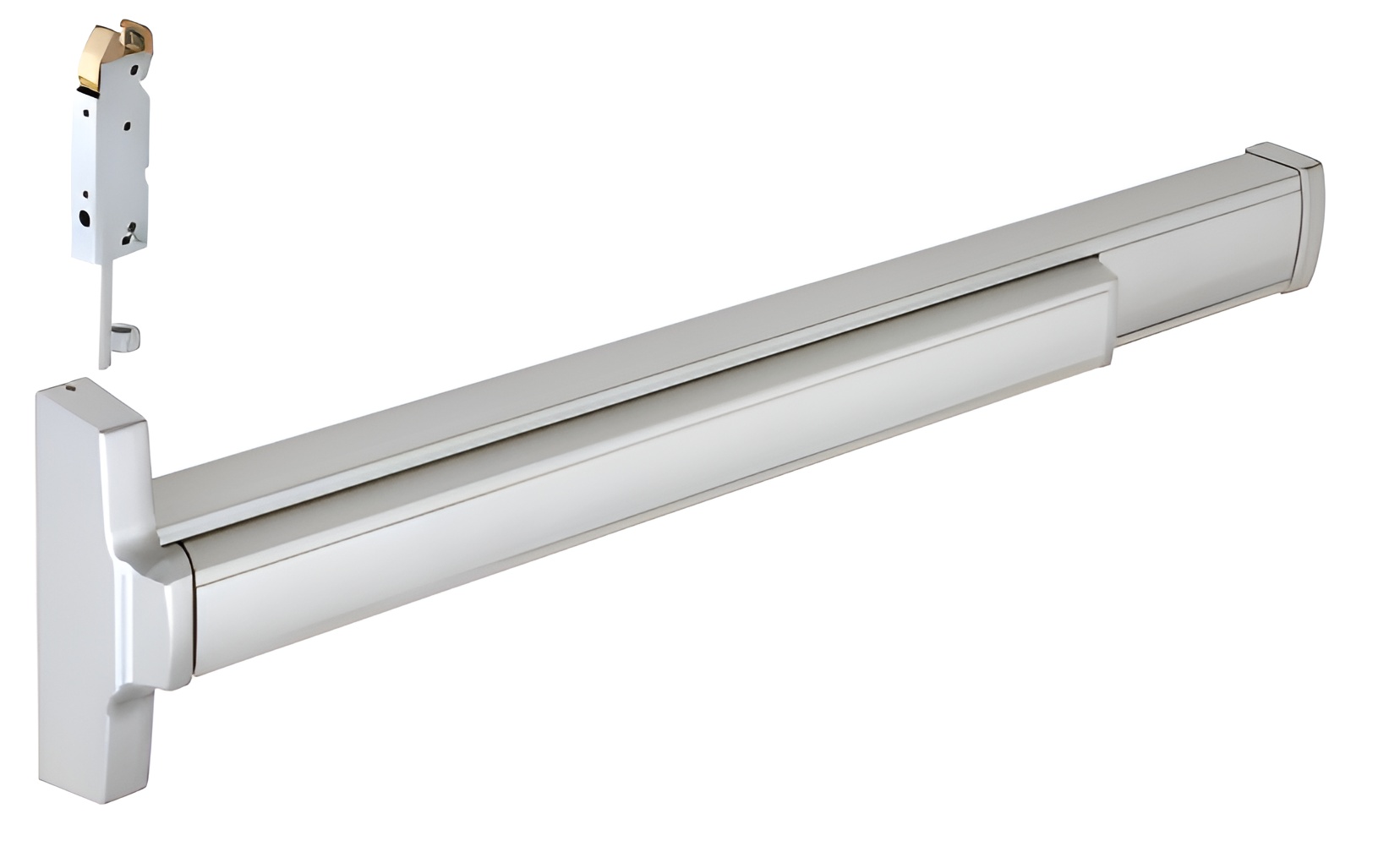

CRL 312085L37628 Satin Aluminum 36" Jackson 2085 Left Hand Panic Exit Device

CRL 312085L37628 Satin Aluminum 36" Jackson 2085 Push Pad Concealed Vertical Rod Left Hand Reverse Bevel Panic Exit Device offers both security and functionality, making it an ideal choice for commercial and high-traffic environments. Specifically designed for use with 1-3/4" (44 mm) narrow, medium, and wide stile aluminum, wood, or hollow metal doors, this exit device features concealed fastening for enhanced security and aesthetics. Complying with ANSI 156.3, Grade 1 specifications, the device is built to withstand wear and tear while maintaining a sleek appearance. The concealed easy-to-use dogging system ensures effortless operation, and the option for cylinder dogging adds versatility. The positive locking, spring-loaded top latch enhances security, while nylon sleeves and rollers insulate wear points for smooth, quiet functionality. This model is standard for 36" (914 mm) wide doors and can be field-sized up to 48" (1.22 m) in width. With a standard height of 84" (2.13 m), it requires a mortise cylinder and a Series 30821J mounting pad for keyed entry. The satin aluminum finish ensures durability and a modern look, making the CRL Jackson 2085 a reliable choice for any building professional.

Satin Aluminum 36" Jackson 2085 Push Pad Concealed Vertical Rod Left Hand Reverse Bevel Panic Exit Device

• Designed for Use with 1-3/4" (44 mm) Narrow, Medium, and Wide Stile Aluminum, Wood, or Hollow Metal Doors
• Concealed Fastening for Added Security
• Complies with ANSI 156.3, Grade 1 Specifications
• Can Be Cut to Size

Resources

• Jackson 2085 Concealed Vertical Rod Panic Exit Device Installation Instructions
• Jackson Door Control Products Limited Warranty and Liability Information
• Specifications SECTION 08 7100 20 Series Push Pad Exit Device Specifications.docx
