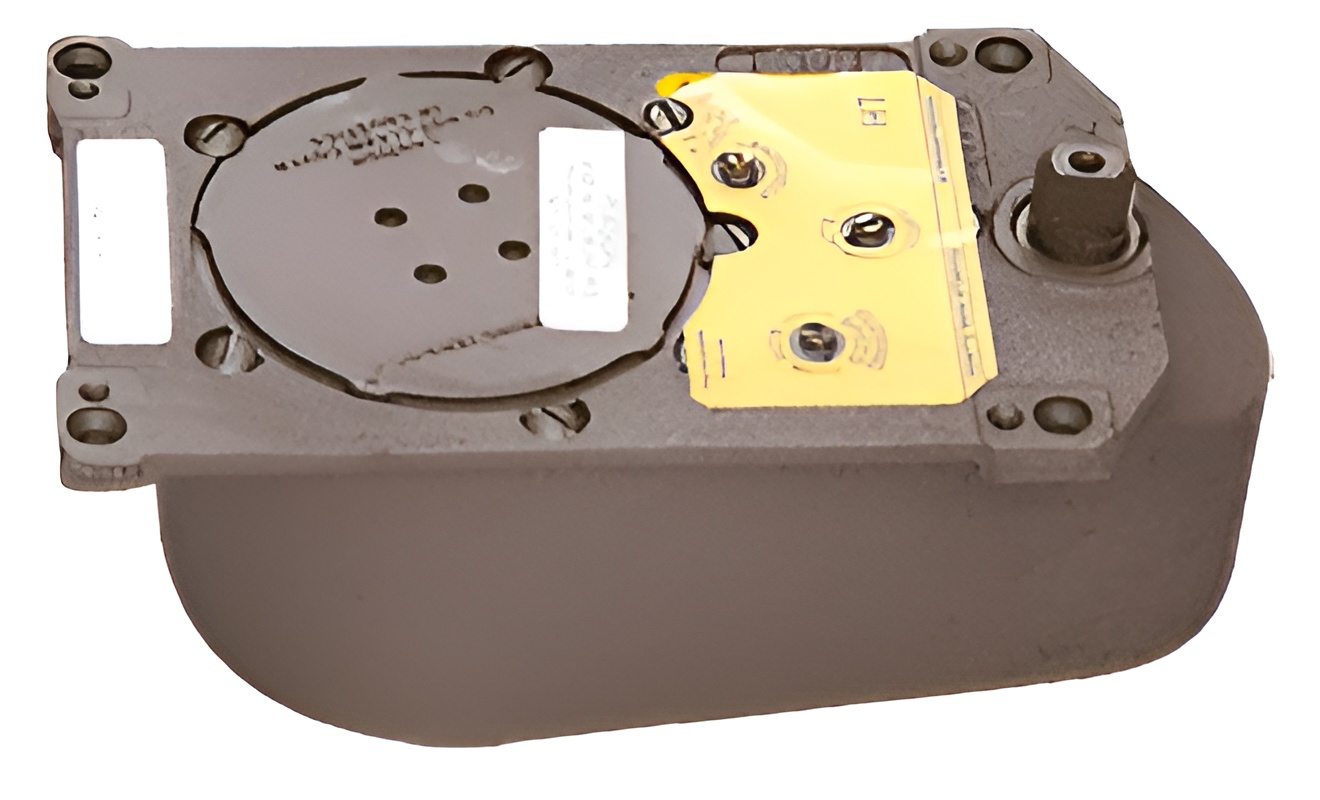

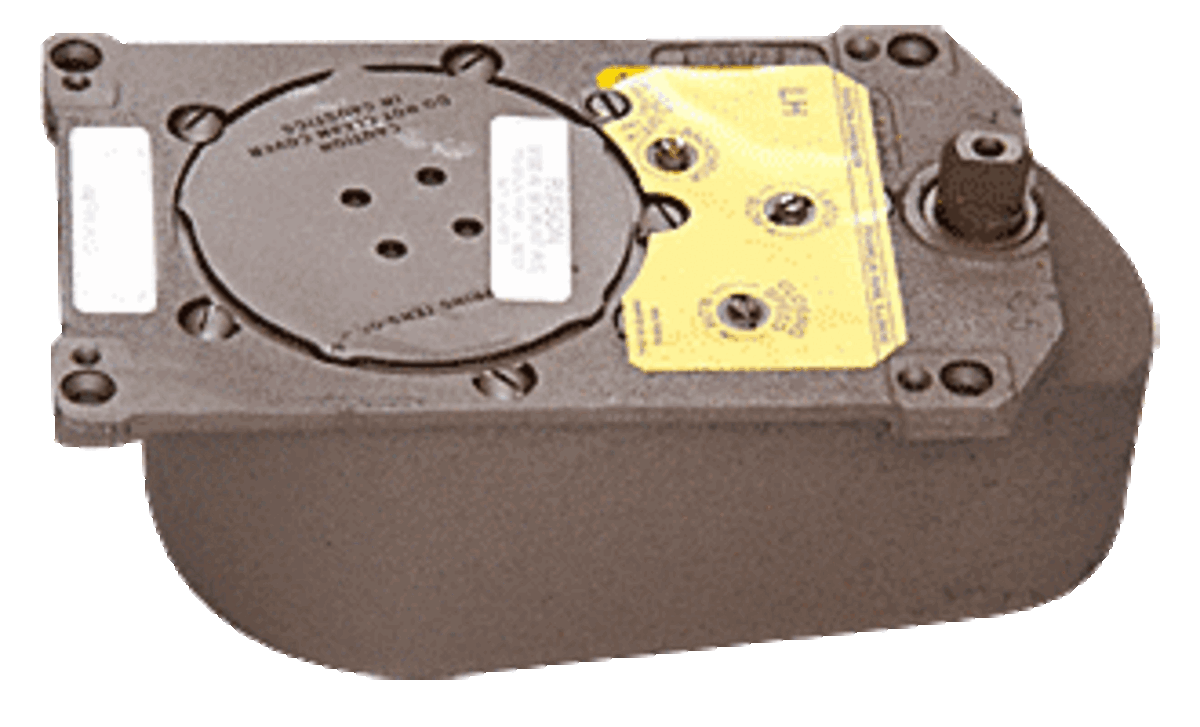

CRL 328105SH0LHB0D Rixson 328 Center-Hung Left Hand Floor-Mounted Closer Body for Patch FittingsC.R. Laurence Rixson 328 Series Center-Hung Left Hand 105 Selective Hold Open Floor Mounted Closer Body Only for Patch Fittings is engineered for optimal door control, providing a robust solution for both exterior and interior installations. This closer supports doors weighing up to 325 lbs. (147 kg) and measuring up to 42" (1.07 m) wide, making it ideal for high-traffic areas. Featuring a tapered spindle design specifically for patch fittings, the Rixson 328 model includes a selective hold open function, allowing for the door to remain open at a 105° angle when desired. Its built-in positive dead stop ensures durability, while independent closing, latching, and back check valves allow for precise adjustments to meet the operational needs of any space. With a body height of 4-1/16 in. (103.2 mm), length of 11-1/8 in. (282.6 mm), and width of 5-7/8 in. (149.2 mm), this closer fits seamlessly into various architectural designs. The Rixson 328 is UL Listed and complies with ANSI 117.1 standards, ensuring reliability and safety. Optional accessories, including a closer cover and cement case, enhance functionality, making this closer a versatile choice for modern building projects.
Rixson 328 Series Center-Hung Left Hand 105 Selective Hold Open Floor Mounted Closer Body Only for Patch Fittings
- Tapered Spindle Design Intended for use with Patch Fittings
- For Exterior or Interior Doors Weighing Up to 325 Lbs. (147 Kg) and 42" (1.07 m) Wide
- Selective On or Off Hold Open
This
Rixson® Model 328 Center-Hung Floor Mounted Door Closer provides the best mechanical means of controlling a door. This model is specifically designed to be used with the tapered spindle insert used for patch fittings. This closer is capable of supporting exterior or interior doors weighing up to 325 lbs. (147 kg) and 42" (1.07 m) wide.
Standard features include selective on or off hold open, build-in positive dead stop, and separate independent valves for closing, latch and back check adjustments.
Optional accessories that may be needed are:
253000 Floor Closer Cement Case
284720LH Closer Cover
Additional finishes and accessories are available upon request for quotation.
Most shipping weights are approximate and have not been verified. If the exact weight is needed in order to determine shipping costs, and shipping costs are required in order for you to complete your order, please request this prior to submitting your order by contacting CRL Customer Service. Product images shown are of the actual product or a close representation. Colors can vary depending on your computer's video card and on how your monitor's color is adjusted.
Attributes
Ship via: No UPS - Common Carrier Only
Adjustable Hydraulic Backcheck: Yes
Body Height: 4-1/16 in. (103.2 mm)
Body Length: 11-1/8 in. (282.6 mm)
Body Widt: 5-7/8 in. (149.2 mm)
Body Width: 5-7/8 in. (149.2 mm)
Brand: Rixson
Built In Positive Dead Stop: Yes
Certification: ANSI 117.1
Closer Body Only: Yes
Closer Type: Floor Closer
Compliance and Restrictions: Warning Reproductive Harm - www.p65warnings.ca.gov
Door Height: 96 in. (2438.4 mm)
Door Opening: 105 °
Handing: Left Hand
Hold Open: 105
Independent Closing and Latching Valves: Yes
Interior Or Exterior Doors: Yes
Maximum Door Width - Exterior: 38 in. (965.2 mm)
Maximum Door Width - Interior: 38 in. (965.2 mm)
Maximum Weight Center Hung: 325 lbs. (147.4 kg)
Non Stocked Parts and Acessories Special Order: Yes
Patch Fitting Usage: Yes
Recommended Door Type: Patch Fittings
Selective Hold Open: Yes
Series: 328
Shipping Limitations: None
Similar: BTS75VBFNHO, BTS7510CPBS, BTS7510CPDU
Tapered Spindle Design: Yes
UL Listed: Yes
