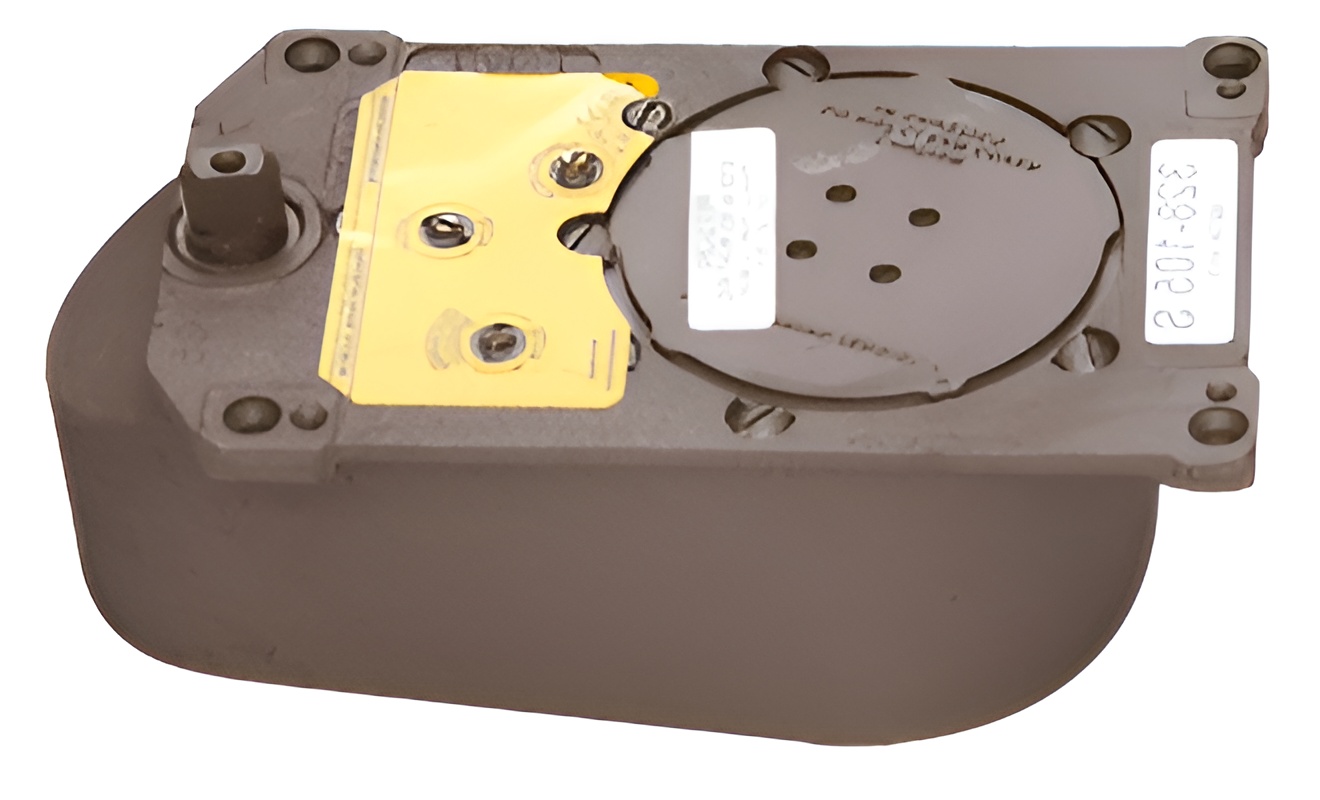

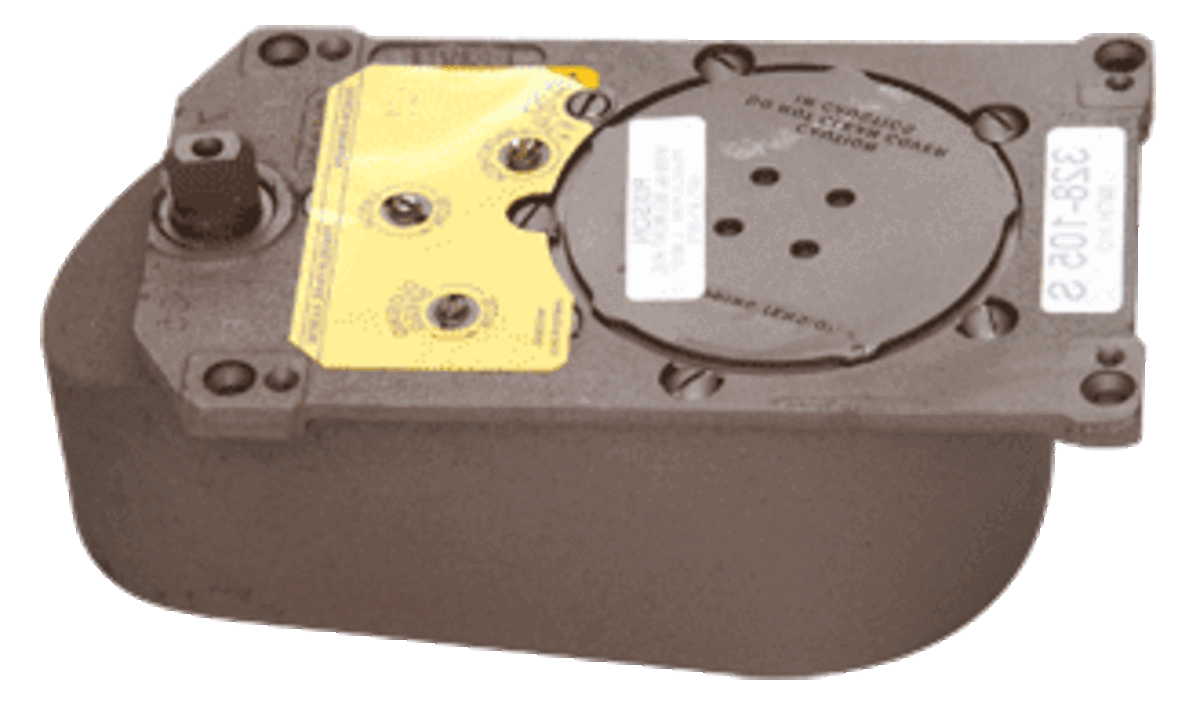

CRL 32890SH0RHB0DY Rixson 328 Center-Hung Right Hand Floor-Mounted Closer Body for Patch FittingsC.R. Laurence Rixson 328 Series Center-Hung Right Hand 90 Selective Hold Open Floor Mounted Closer Body Only for Patch Fittings is designed to provide superior control and functionality for both exterior and interior doors. This robust closer accommodates doors weighing up to 325 lbs. (147 kg) and measuring up to 42" (1.07 m) wide, ensuring reliable performance in high-traffic areas. Featuring a tapered spindle design specifically for patch fittings, this closer includes standard features such as selective on or off hold open and a built-in positive dead stop. Its adjustable hydraulic backcheck allows for customizable closing and latching speeds, catering to varying user needs. With separate independent valves for closing, latch, and back check adjustments, you can fine-tune the operation to achieve optimal performance. The body dimensions-4-1/16 in. (103.2 mm) in height, 11-1/8 in. (282.6 mm) in length, and 5-7/8 in. (149.2 mm) in width-fit seamlessly into a range of architectural applications. This model is ANSI 117.1 certified and UL listed, ensuring compliance with safety standards. For enhanced installation, consider optional accessories like the Floor Closer Cement Case and Closer Cover. C.R. Laurence is your trusted source for Rixson® products, providing expert assistance through our Technical Sales Department.
Rixson 328 Series Center-Hung Right Hand 90 Selective Hold Open Floor Mounted Closer Body Only for Patch Fittings
- Tapered Spindle Design Intended for use with Patch Fittings
- For Exterior or Interior Doors Weighing Up to 325 Lbs. (147 kg) and 42" (1.07 m) Wide
- Selective On or Off Hold Open
This
Rixson® Model 328 Center-Hung Floor Mounted Door Closer provides the best mechanical means of controlling a door. This model is specifically designed to be used with the tapered spindle insert used for patch fittings. This closer is capable of supporting exterior or interior doors weighing up to 325 lbs. (147 kg) and 42" (1.07 m) Wide.
Standard features include selective on or off hold open, build-in positive dead stop, and separate independent valves for closing, latch and back check adjustments.
NOTE: CRL is a stocking Rixson® Specialty Door Control Distributor. If you need Rixson® products please contact our Technical Sales Department for assistance.
Optional accessories that may be needed are:
253000Floor Closer Cement Case
284720RHCloser Cover
Additional finishes and accessories are available upon request for quotation.
Most shipping weights are approximate and have not been verified. If the exact weight is needed in order to determine shipping costs, and shipping costs are required in order for you to complete your order, please request this prior to submitting your order by contacting CRL Customer Service. Product images shown are of the actual product or a close representation. Colors can vary depending on your computer's video card and on how your monitor's color is adjusted.
Attributes
Ship via: No UPS - Common Carrier Only
Adjustable Hydraulic Backcheck: Yes
Body Height: 4-1/16 in. (103.2 mm)
Body Length: 11-1/8 in. (282.6 mm)
Body Widt: 5-7/8 in. (149.2 mm)
Body Width: 5-7/8 in. (149.2 mm)
Brand: Rixson
Built In Positive Dead Stop: Yes
Certification: ANSI 117.1
Closer Body Only: Yes
Closer Type: Floor Closer
Compliance and Restrictions: Warning Reproductive Harm - www.p65warnings.ca.gov
Door Height: 96 in. (2438.4 mm)
Door Opening: 90 °
Handing: Right Hand
Hold Open: 90
Independent Closing and Latching Valves: Yes
Interior Or Exterior Doors: Yes
Maximum Door Width - Exterior: 38 in. (965.2 mm)
Maximum Door Width - Interior: 38 in. (965.2 mm)
Maximum Weight Center Hung: 325 lbs. (147.4 kg)
Non Stocked Parts and Acessories Special Order: Yes
Patch Fitting Usage: Yes
Recommended Door Type: Patch Fittings
Selective Hold Open: Yes
Series: 328
Shipping Limitations: None
Similar: BTS75VBF90HO, J993HOD, J904HOD
Tapered Spindle Design: Yes
UL Listed: Yes
