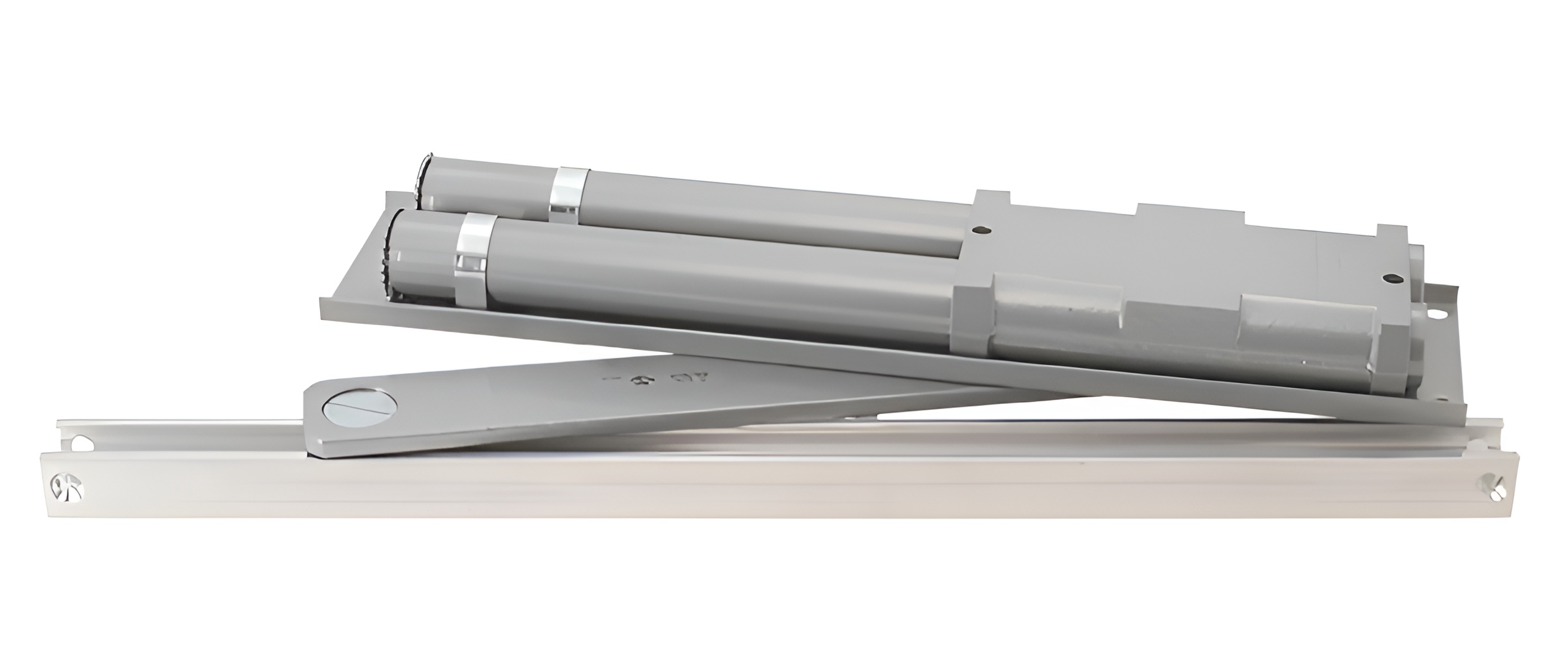

CRL 6031AL LCN Concealed Non Hold-Open Door Closer, Aluminum Finish, ADA Spring Size 1

C.R. Laurence 6031AL LCN Aluminum Finish Overhead Concealed Non Hold-Open Door Closer - ADA Spring Size 1 is engineered for optimal performance in both commercial and residential applications. This heavy-duty closer is designed to fit a transom with minimum dimensions of 1-3/4" x 4" (45 x 102 mm), making it an excellent choice for various door types, including aluminum and hollow metal. Certified to ANSI Standard A156.4, Grade 1, it ensures reliability and durability, while being UL and cUL listed for use on self-closing doors without hold-open features. The LCN 6030 Series Pacer® offers a smooth and quiet door operation, thanks to its single lever arm and roller assembly. It supports double acting applications and is non-handed, providing flexibility during installation. With fixed spring sizes accommodating interior doors up to 54" (1.37 m) and exterior doors up to 42" (1.07 m), this closer meets ADA requirements efficiently. To adjust the door's functionality, backcheck and non-critical speed and latch adjustments are easily accessible. Note that a Center-Hung Top Pivot is required for installation. Enhance your doorway's accessibility and functionality with this reliable overhead concealed door closer from C.R. Laurence.

LCN Aluminum Finish Overhead Concealed Non Hold-Open Door Closer - ADA Spring Size 1

• Requires Minimum 1-3/4" x 4" (45 x 102 mm) Wide Transom
• Certified to ANSI Standard A156.4, Grade 1
• UL and cUL Listed for Self-Closing Doors Without Hold-Open
• Fixed Spring Sizes Available for Interior Doors to 54" (1.37 m) and Exterior to 42" (1.07 m)
• Backcheck and Non-Critical Speed and Latch Adjustments

Resources

• How to Order Overhead Concealed Closers.pdf
• Installation Instructions LCN 6030 install.pdf
