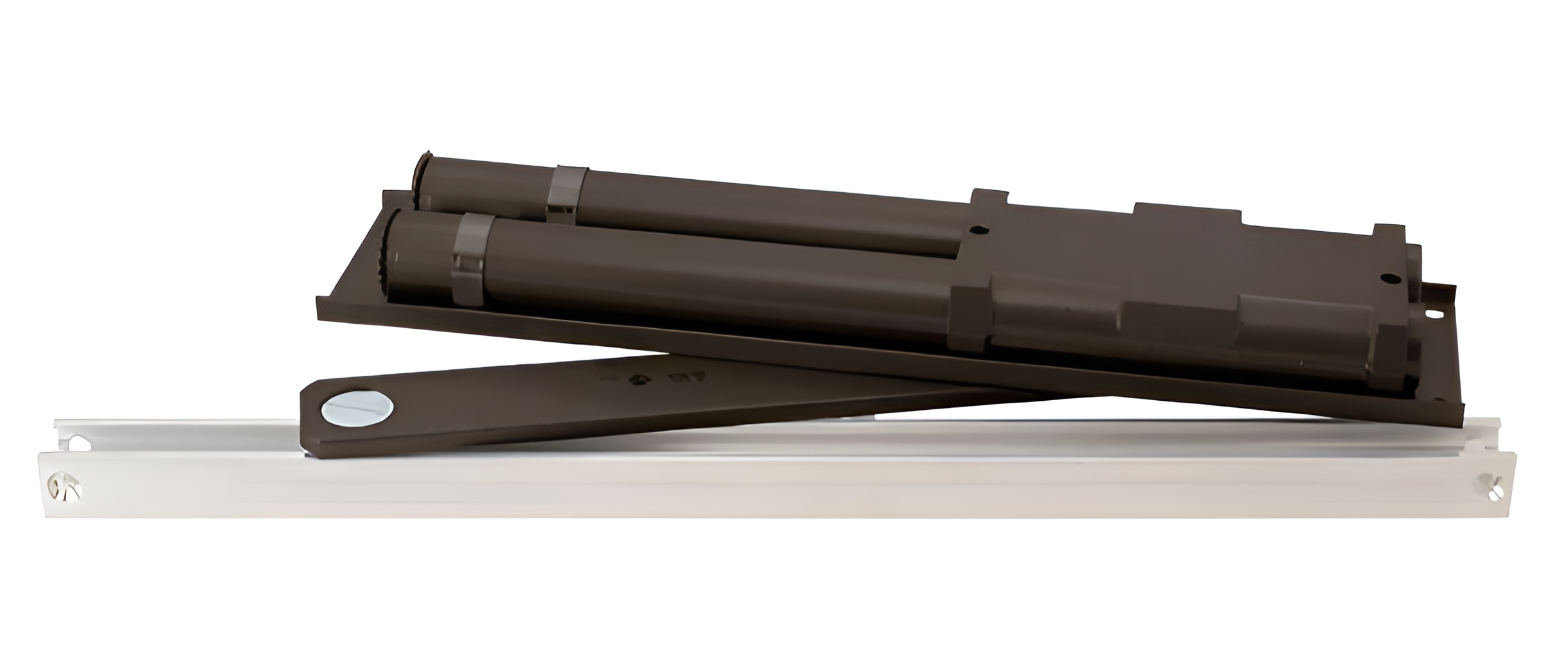

CRL 6031DU LCN Dark Bronze Concealed Non Hold-Open Door Closer - ADA Spring Size 1
Images may not represent actual product and finish

CRL 6031DU LCN Dark Bronze Concealed Non Hold-Open Door Closer - ADA Spring Size 1

Your Price: $2,307.49
Retail Price:$2,762.48
Your Savings:$454.99(16%)
The CRL 6031DU LCN Dark Bronze Overhead Concealed Door Closer offers ADA compliance, smooth operation, and durable construction for reliable performance.
Part Number : CRL_6031DU
Availability: 7 In Stock
CRL 6031DU LCN Dark Bronze Concealed Non Hold-Open Door Closer - ADA Spring Size 1

LCN Dark Bronze Finish Overhead Concealed Non Hold-Open Door Closer - ADA Spring Size 1

  • Requires Minimum 1-3/4" x 4" (45 x 102 mm) Wide Transom
  • Certified to ANSI Standard A156.4, Grade 1
  • UL and cUL Listed for Self-Closing Doors Without Hold-Open
  • Fixed Spring Sizes Available for Interior Doors to 54" (1.37 m) and Exterior to 42" (1.07 m)
  • Backcheck and Non-Critical Speed and Latch Adjustments

The LCN 6030 Series Pacer® Overhead Concealed Door Closer is a heavy-duty closer designed to fit a shallow 1-3/4" (45 mm) x 4" (102 mm) transom. The single lever arm and roller assembly provides smooth, quiet door control, and the choice of painted finishes and track functions meet virtually all architectural requirements. The closer is non-handed and center-hung for double acting applications. A Center-Hung Top Pivot is required for this application but must be ordered separately. Available in fixed spring sizes that will meet ADA requirements and accommodate interior doors to 54" (1.37 m) and exterior doors to 42" (1.07 m). The series is UL and cUL listed for self-closing doors without hold-open.


Product Warning:

Reduced Force ADA Closers installed and adjusted based on ADA or other reduced opening force requirements may not provide sufficient force to reliably close and latch the door.

Most shipping weights are approximate and have not been verified. If the exact weight is needed in order to determine shipping costs, and shipping costs are required in order for you to complete your order, please request this prior to submitting your order by contacting CRL Customer Service. Product images shown are of the actual product or a close representation. Colors can vary depending on your computer's video card and on how your monitor's color is adjusted.


Attributes

Americans with Disabilities Act: Yes

Body Height: 1-3/4

Body Length: 16-7/8

Body Widt: 3-23/32

Body Width: 3-23/32

Closer Type: Overhead Concealed

Compliance and Restrictions: Warning Reproductive Harm - www.p65warnings.ca.gov

Cover Plate Length: 18-1/4

Cover Plate Width: 4

Door Height: 96

Handing: Double Acting

Hold Open Option Available: Yes

Maximum Door Width - Exterior: 36 Inches

Maximum Door Width - Interior: 36 Inches

Recommended Door Type: Aluminum,Hollow Metal

Shipping Limitations: None

Slide Track Depth: 1-7/16

Slide Track Length: 22-1/2

Spring Size: 5

UL Listed: Yes
