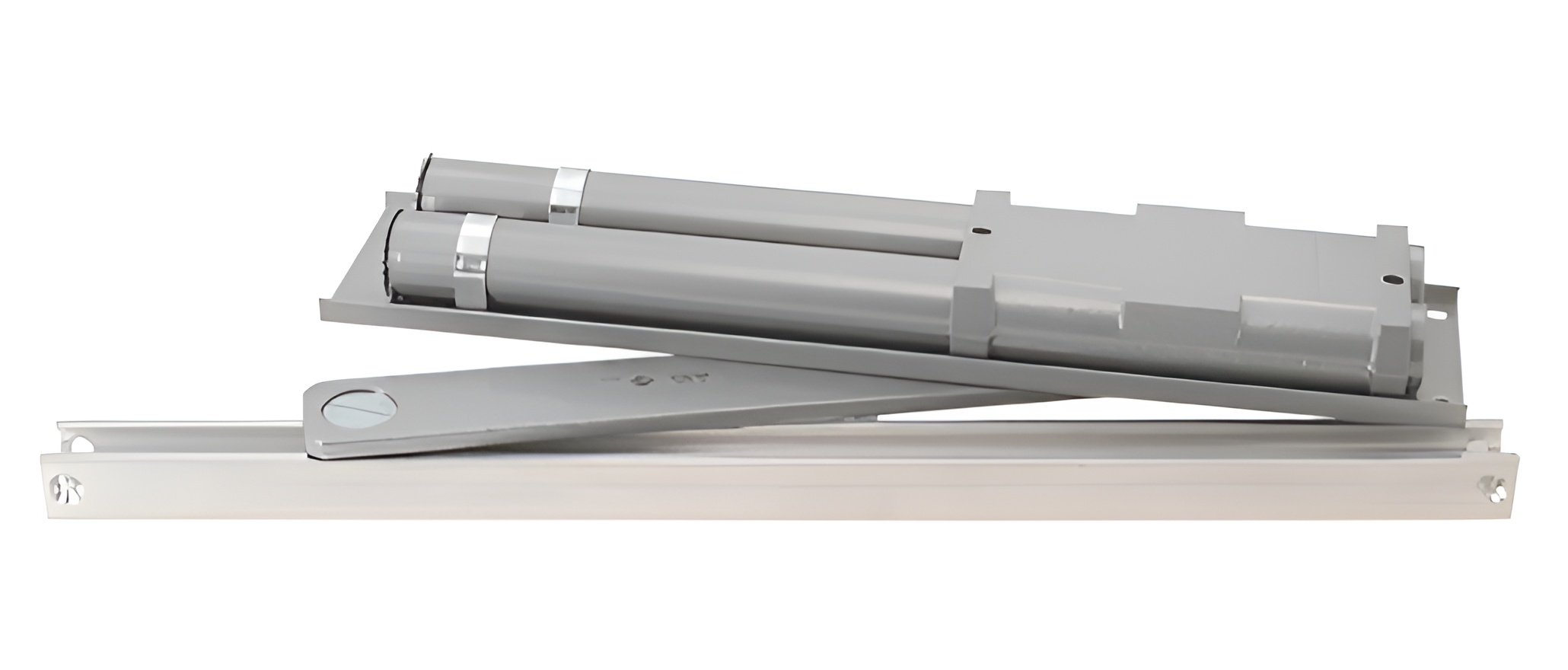

CRL 6033AL LCN ADA Size 3 Concealed Overhead Door Closer - Non Hold-Open, Aluminum Finish

C.R. Laurence 6033AL LCN Aluminum Finish Overhead Concealed Non Hold-Open Door Closer - ADA Spring Size 3 is engineered for reliability and efficiency in high-traffic areas. Designed to fit a transom of at least 1-3/4" by 4" (45 x 102 mm), this heavy-duty closer meets ANSI Standard A156.4, Grade 1 certification, assuring top-tier performance. The UL and cUL listing confirms its suitability for self-closing doors without hold-open functionality. The LCN 6030 Series Pacer® features a single lever arm and roller assembly that facilitates smooth, quiet operation, making it ideal for both commercial and residential applications. It supports fixed spring sizes for interior doors up to 54" (1.37 m) and exterior doors up to 42" (1.07 m), adhering to ADA requirements for accessibility. Backcheck and adjustable speed settings enhance safety and usability, allowing for tailored performance. This non-handed, center-hung closer is perfect for double-acting doors and requires a Center-Hung Top Pivot, sold separately. The aluminum finish not only ensures durability but also complements various architectural styles. With a body size of 1-3/4" in height and a cover plate length of 18-1/4", the 6033AL model combines functionality with a sleek design, making it a superior choice for your door control needs.

LCN Aluminum Finish Overhead Concealed Non Hold-Open Door Closer - ADA Spring Size 3

• Requires Minimum 1-3/4" x 4" (45 x 102 mm) Wide Transom
• Certified to ANSI Standard A156.4, Grade 1
• UL and cUL Listed for Self-Closing Doors without Hold-Open
• Fixed Spring Sizes Available for Interior Doors to 54" (1.37 m) and Exterior to 42" (1.07 m)
• Backcheck and Non-Critical Speed and Latch Adjustments

Resources

• How to Order Overhead Concealed Closers.pdf
• Installation Instructions LCN 6030 install.pdf
