CRL 6760 Adjustable 90 Hold Open Concealed Closer Body Only

CRL 6760 Adjustable 90 Hold Open Concealed Closer Body Only

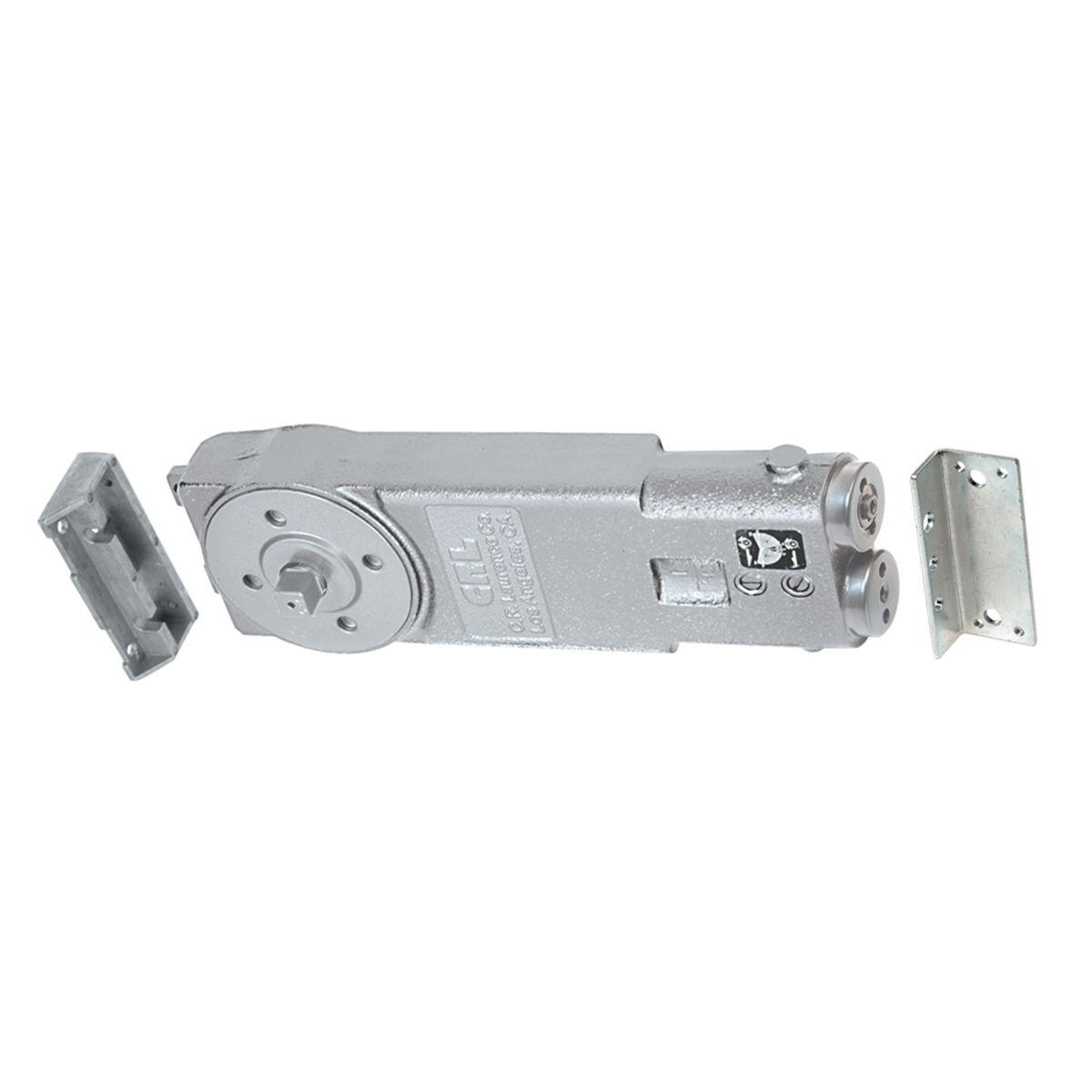

C.R. Laurence 6760 Adjustable Spring Power 90 Hold Open Overhead Concealed Closer Body Only offers a reliable and versatile solution for your door control needs. Designed to interchange with all Jackson® style overhead concealed door closers, this product comes in a range of 20 models, ensuring you find the perfect fit for your project. Each closer body is conveniently packaged with mounting clips, templates, and easy-to-follow instructions, simplifying installation and reducing downtime. This closer features independent adjustment valves, allowing for precise control of both closing and latching speeds. Special retaining rings are integrated to prevent adjustment valve screws from being fully removed, enhancing durability and ease of maintenance. The 6760 model is UL Listed, ensuring compliance with safety standards. With a maximum door weight capacity of 200 lbs and accommodating exterior door widths up to 42 inches and interior widths of 36 inches, it’s suitable for various applications. A recommended auxiliary floor or overhead stop helps prevent damage from over-extension. Please note, while this closer complies with A.D.A. specified opening forces, varying site conditions may affect its effectiveness. Trust C.R. Laurence for quality and reliability in your door hardware solutions.

Adjustable Spring Power 90 Hold Open Overhead Concealed Closer Body Only

• Interchangeable with All Jackson® Style Overhead Concealed Door Closers
• 20 Models Available
• Conveniently Packaged with Templates and Instructions
• 5 Year Limited Warranty
• UL Listed

There are two advantages to buying our Door Closer Bodies with Mounting Clips. The first is if you are only replacing a worn out Door Closer, you will reduce your costs by not purchasing unnecessary hardware. The second is that by adding accessories you can get a Door Closer with the exact accessories you need for the job you are doing. Just select a Door Closer and add the different accessory parts (Pivots, Arms, etc.) you need to create the Door Closer package of your choice. Each Door Closer Body comes packaged with Mounting Clips, Templates, and Instructions.

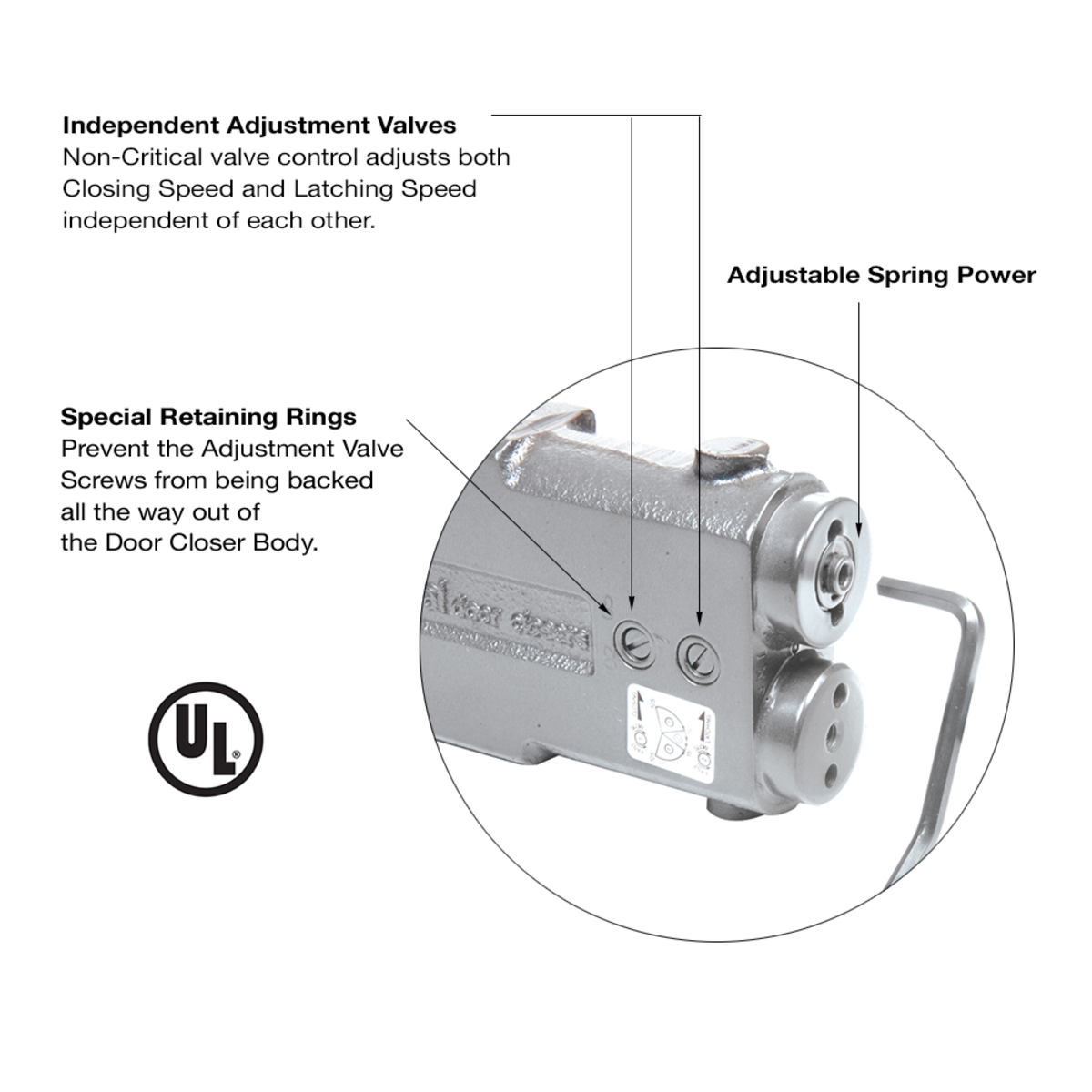

Independent Adjustment Valves
Non-Critical valve control adjusts both Closing Speed and Latching Speed independent of each other.

Special Retaining Rings Prevent the Adjustment Valve Screws from being backed all the way out of the Door Closer Body.

NOTE: An auxiliary floor or overhead door stop is recommended to prevent possible damage to both the door closer and entry way due to over-extension of maximum allowable door swing.

Weight and Size Limitations
Door Weight: 200 Lbs. (91 kg)
Exterior Door Width: 42" (1.07 m)
Interior Door Width: 48" (1.22 m)
All Doors Height: 96" (2.44 m)

NOTE: Although A.D.A. Series Door Closers comply with A.D.A. specified opening forces, they might not provide adequate spring power to control and close the door due to varying site conditions and door size.


Product Warning:

Closers set to comply with A.D.A. specified opening forces might not provide adequate spring power to control and close the door due to varying site conditions and door size.

Resources

• Door Closer Warranty
• How to Order Overhead Concealed Closers.pdf
• OHC Spring Power Adjustment CRL OHC SPRING POWER ADJUSTMENT.pdf
• OHC Template Instructions CRL OHC TEMPLATE INSTRUCTIONS.pdf
• Specifications Closer2.pdf
