CRL 6870 A.D.A. 5 lbs. Concealed Overhead Closer Body Only, Hold Open 105

CRL 6870 A.D.A. 5 lbs. Concealed Overhead Closer Body Only, Hold Open 105

C.R. Laurence 6870 A.D.A. 5 Lbs. Interior 105 Hold Open Overhead Concealed Closer Body Only is engineered for seamless integration and superior performance in various door applications. This overhead concealed closer is interchangeable with all Jackson® style door closers, offering flexibility and ease of installation. With 20 models available, you can select the perfect match for your project needs. Designed with user convenience in mind, each closer body comes packaged with mounting clips, templates, and clear instructions, ensuring a straightforward setup. It features independent adjustment valves that allow for precise control over both closing and latching speeds, enhancing door operation. The special retaining rings prevent adjustment screws from being unintentionally removed, reinforcing durability. This closer supports a maximum door weight of 200 lbs and is suitable for doors up to 48 inches wide and 96 inches tall. Notably, it complies with A.D.A. specified opening forces, although site conditions may affect its closing capabilities. The 6870 model is UL listed, providing peace of mind regarding safety standards. For optimal performance, an auxiliary door stop is recommended to prevent damage from excessive door swing. Enjoy a reliable solution for your interior door needs with this high-quality closer.

A.D.A. 5 Lbs. Interior 105 Hold Open Overhead Concealed Closer Body Only

• Interchangeable with All Jackson® Style Overhead Concealed Door Closers
• 20 Models Available
• Conveniently Packaged with Templates and Instructions
• 5 Year Limited Warranty
• UL Listed

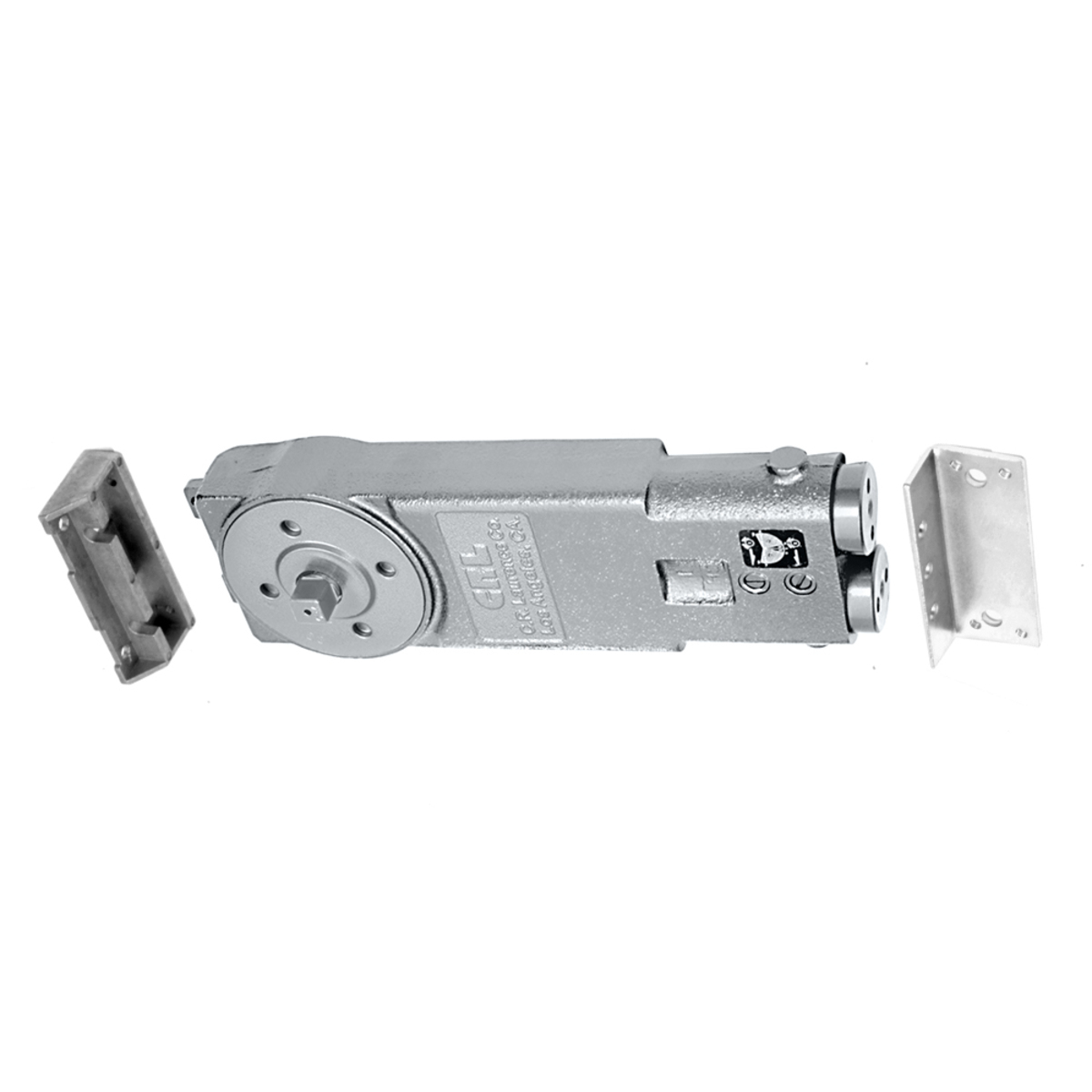

There are two advantages to buying our Door Closer Bodies with Mounting Clips. The first is if you are only replacing a worn out Door Closer, you will reduce your costs by not purchasing unnecessary hardware. The second is that by adding accessories you can get a Door Closer with the exact accessories you need for the job you are doing. Just select a Door Closer and add the different accessory parts (Pivots, Arms, etc.) you need to create the Door Closer package of your choice. Each Door Closer Body comes packaged with Mounting Clips, Templates, and Instructions.

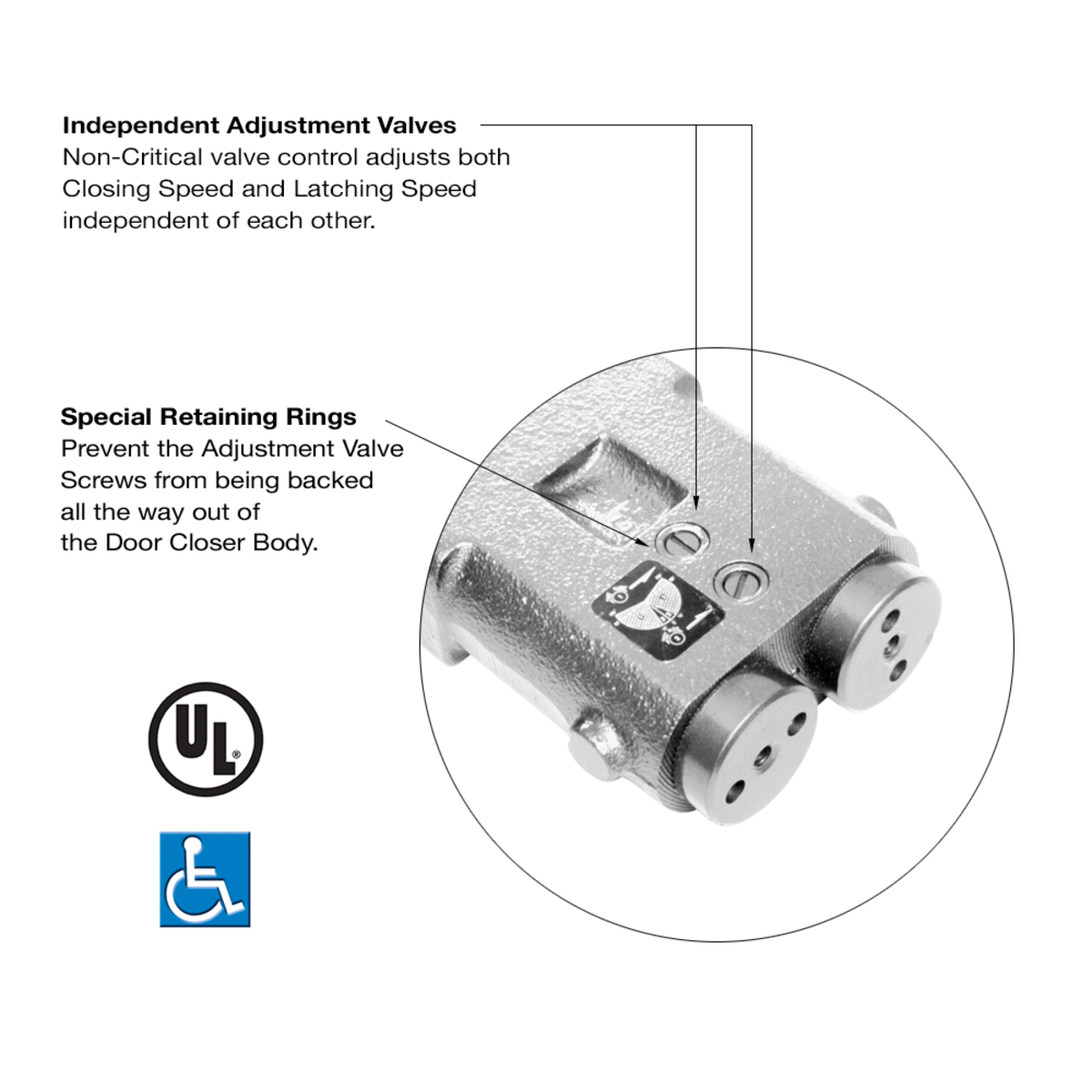

Independent Adjustment Valves
Non-Critical valve control adjusts both Closing Speed and Latching Speed independent of each other.

Special Retaining Rings Prevent the Adjustment Valve Screws from being backed all the way out of the Door Closer Body.

NOTE: An auxiliary floor or overhead door stop is recommended to prevent possible damage to both the door closer and entry way due to over-extension of maximum allowable door swing.

Weight and Size Limitations
Door Weight: 200 Lbs. (91 kg)
Exterior Door Width: 42" (1.07 m)
Interior Door Width: 48" (1.22 m)
All Doors Height: 96" (2.44 m)

NOTE: Although A.D.A. Series Door Closers comply with A.D.A. specified opening forces, they might not provide adequate spring power to control and close the door due to varying site conditions and door size.


Product Warning:

Closers set to comply with A.D.A. specified opening forces might not provide adequate spring power to control and close the door due to varying site conditions and door size.
