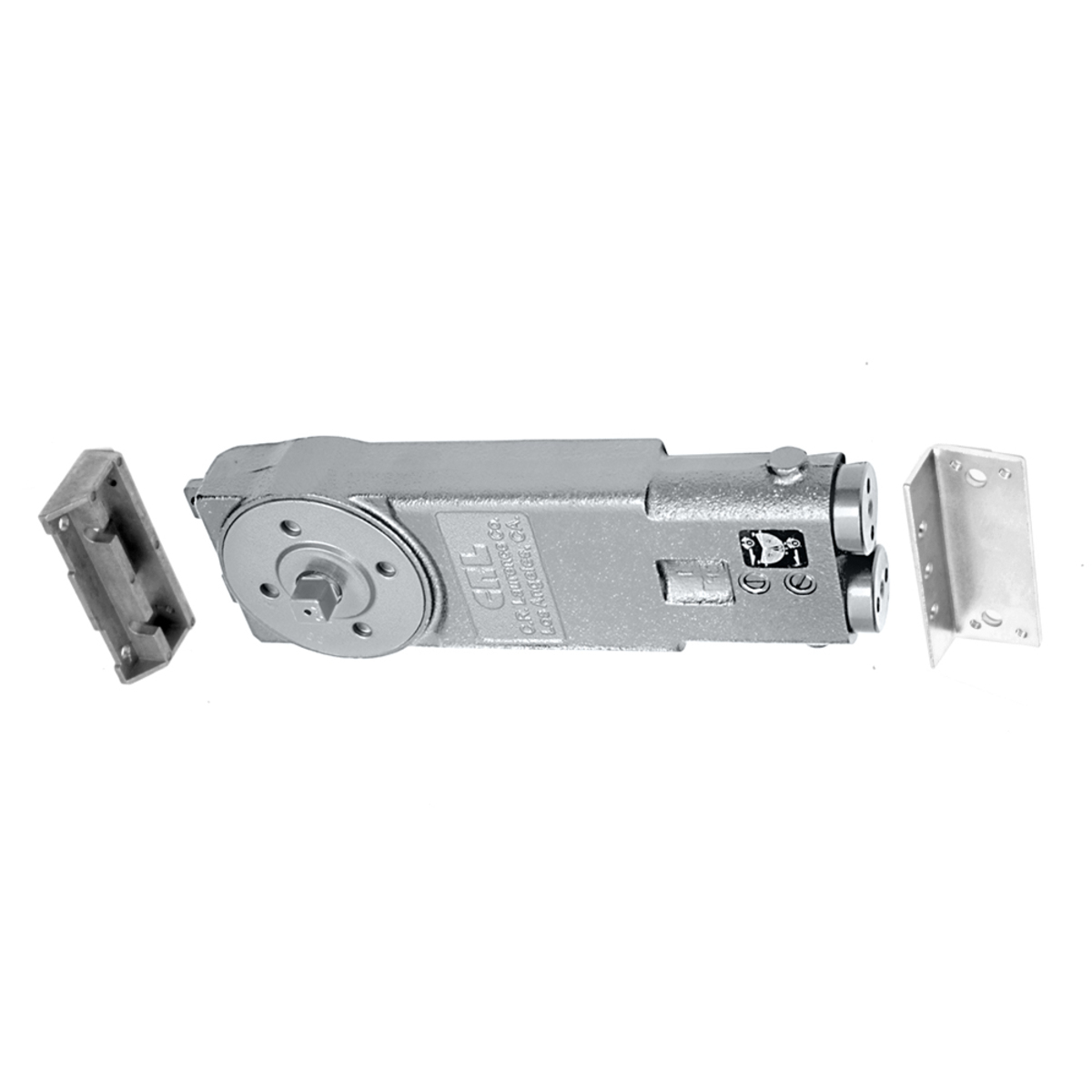

CRL 6970 A.D.A. 8.5 lb Exterior 105 Hold Open Concealed Closer Body Only

CRL 6970 A.D.A. 8.5 lb Exterior 105 Hold Open Concealed Closer Body Only

C.R. Laurence 6970 A.D.A. 8.5 Lb. Exterior 105 Hold Open Overhead Concealed Closer Body Only offers a reliable solution for both functionality and compliance. Designed to interchange seamlessly with all Jackson® style overhead concealed door closers, this model boasts versatility with 20 available configurations. Its lightweight design accommodates doors weighing up to 200 lbs, making it suitable for a variety of residential and commercial applications. This closer comes with independent adjustment valves, allowing precise control over both closing and latching speeds. Each unit is conveniently packaged with mounting clips, templates, and instructions, simplifying installation. UL listed for safety, the closer is compliant with A.D.A. specified opening forces, although it’s important to note that specific site conditions may affect performance. With a hold-open feature at 105°, it enhances accessibility and user experience. The recommended door types include aluminum and hollow metal, and it supports doors up to 36 inches wide and 96 inches high. Backed by a 5-year limited warranty, this overhead closer provides peace of mind and durability. For optimal performance and to prevent potential damage, an auxiliary floor or overhead door stop is recommended.

A.D.A. 8.5 Lb. Exterior 105 Hold Open Overhead Concealed Closer Body Only

• Interchangeable with All Jackson® Style Overhead Concealed Door Closers
• 20 Models Available
• Conveniently Packaged with Templates and Instructions
• 5 Year Limited Warranty
• UL Listed

There are two advantages to buying our Door Closer Bodies with Mounting Clips. The first is if you are only replacing a worn out Door Closer, you will reduce your costs by not purchasing unnecessary hardware. The second is that by adding accessories you can get a Door Closer with the exact accessories you need for the job you are doing. Just select a Door Closer and add the different accessory parts (Pivots, Arms, etc.) you need to create the Door Closer package of your choice. Each Door Closer Body comes packaged with Mounting Clips, Templates, and Instructions.

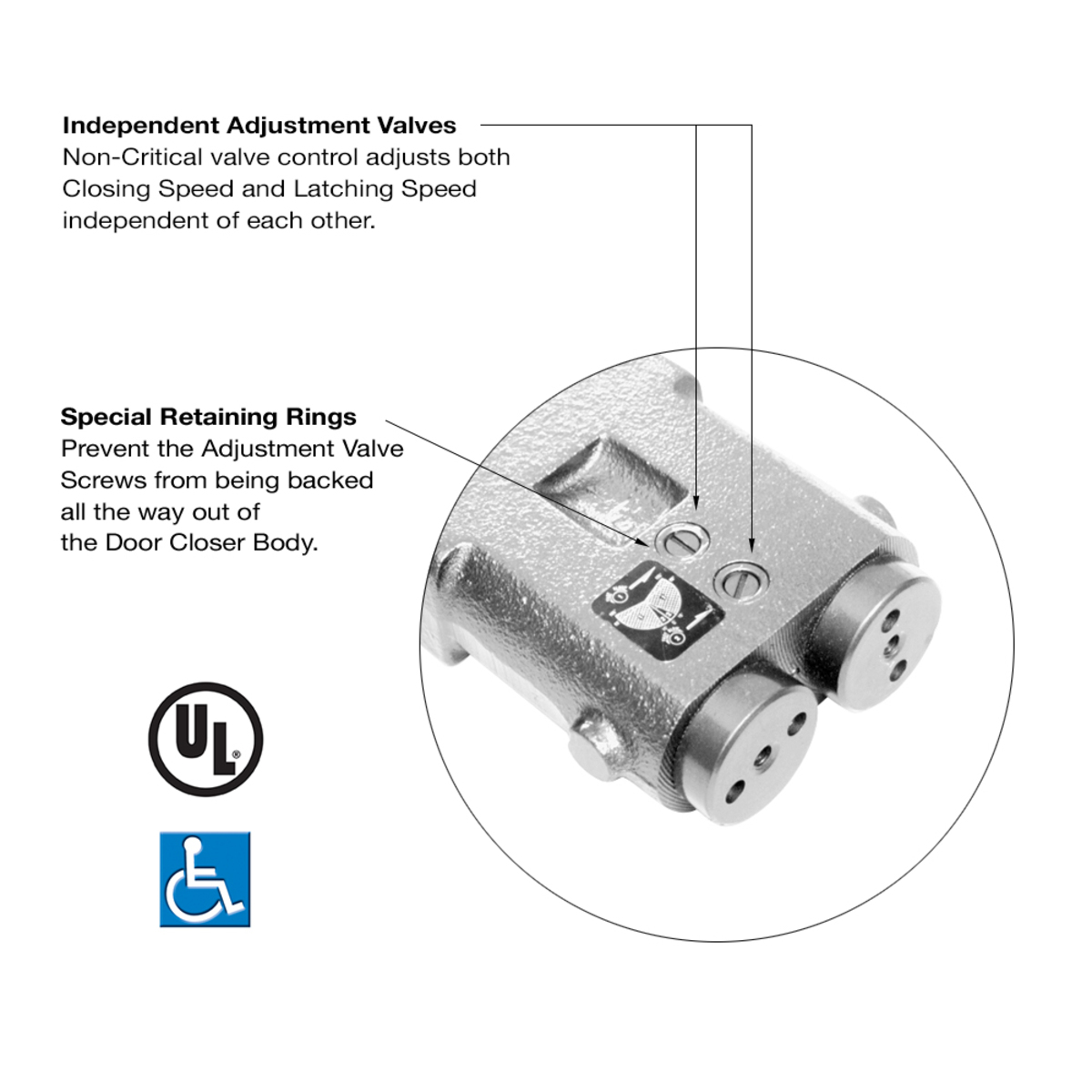

Independent Adjustment Valves
Non-Critical valve control adjusts both Closing Speed and Latching Speed independent of each other.

Special Retaining Rings Prevent the Adjustment Valve Screws from being backed all the way out of the Door Closer Body.

NOTE: An auxiliary floor or overhead door stop is recommended to prevent possible damage to both the door closer and entry way due to over-extension of maximum allowable door swing.

Weight and Size Limitations
Door Weight: 200 Lbs. (91 kg)
Exterior Door Width: 42" (1.07 m)
Interior Door Width: 48" (1.22 m)
All Doors Height: 96" (2.44 m)

NOTE: Although A.D.A. Series Door Closers comply with A.D.A. specified opening forces, they might not provide adequate spring power to control and close the door due to varying site conditions and door size.


Product Warning:

Closers set to comply with A.D.A. specified opening forces might not provide adequate spring power to control and close the door due to varying site conditions and door size.

Resources

• Door Closer Warranty
• How to Order Overhead Concealed Closers.pdf
• Specifications Closer2.pdf
• Template OHC-800 CC HT-NA-CC-30DV-CRL.pdf
