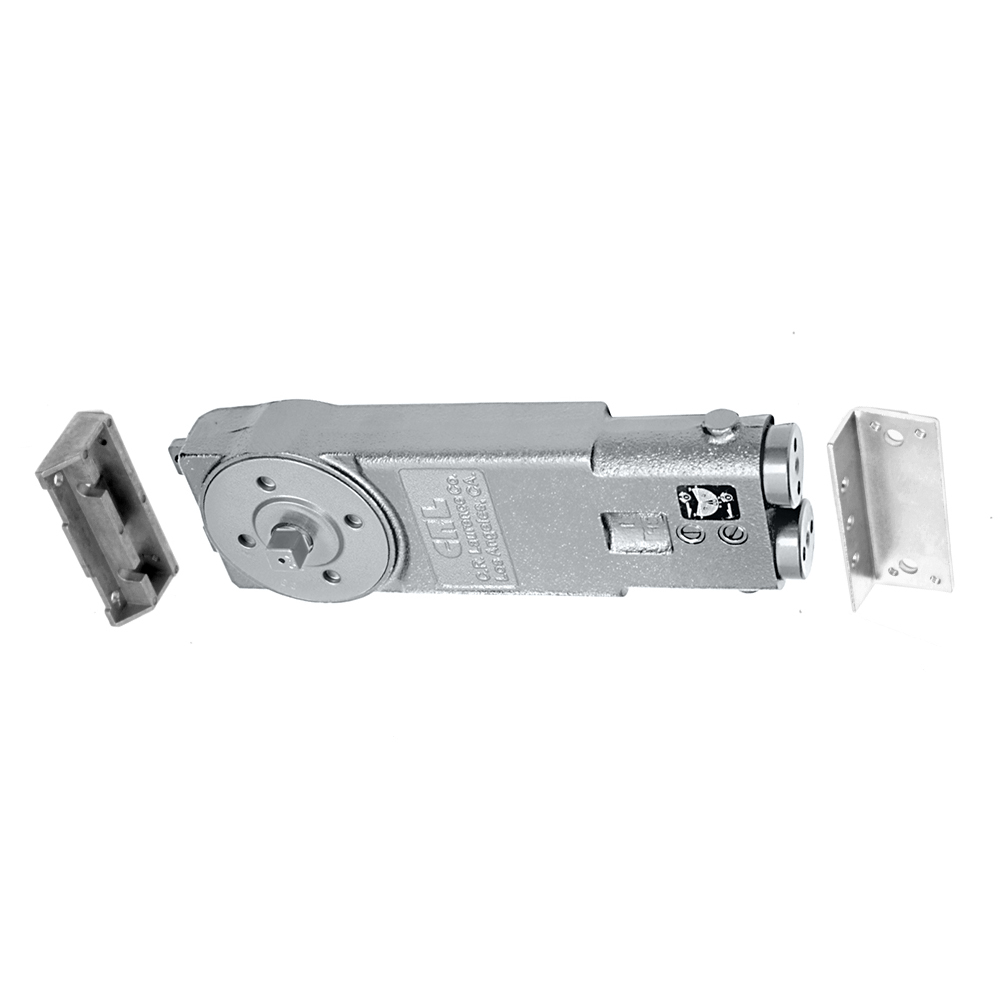

CRL 7062 Light Duty 90 Concealed Overhead Closer Body OnlyC.R. Laurence 7062 Light Duty 90 No Hold Open Overhead Concealed Closer Body Only is engineered for seamless integration into your door systems, providing an ideal solution for both new installations and replacements. This model is interchangeable with all Jackson® style overhead concealed door closers, ensuring versatility and compatibility across various projects. The closer is designed to support doors weighing up to 200 lbs (91 kg) and accommodates exterior doors up to 42 inches (1.07 m) wide and interior doors up to 48 inches (1.22 m) wide, with a maximum height of 96 inches (2.44 m). Its independent adjustment valves allow for precise control over both closing and latching speeds, enhancing user convenience. Conveniently packaged with mounting clips, templates, and instructions, the C.R. Laurence 7062 simplifies installation. Additionally, it's UL listed, reflecting its compliance with rigorous safety standards. The product also includes a 5-year limited warranty for added peace of mind. With special retaining rings preventing adjustment screw loss and a recommendation for an auxiliary door stop, this overhead closer combines reliability with functionality. Ideal for aluminum and hollow metal doors, the C.R. Laurence 7062 is the perfect choice for building professionals seeking a dependable door closer solution.
Light Duty 90 No Hold Open Overhead Concealed Closer Body Only
- Interchangeable with All Jackson® Style Overhead Concealed Door Closers
- 20 Models Available
- Conveniently Packaged with Templates and Instructions
- 5 Year Limited Warranty
- UL Listed
There are two advantages to buying our
Door Closer Bodies with Mounting Clips. The first is if you are only replacing a worn out Door Closer, you will reduce your costs by not purchasing unnecessary hardware. The second is that by adding accessories you can get a Door Closer with the exact accessories you need for the job you are doing. Just select a Door Closer and add the different accessory parts (Pivots, Arms, etc.) you need to create the Door Closer package of your choice. Each Door Closer Body comes packaged with Mounting Clips, Templates, and Instructions.

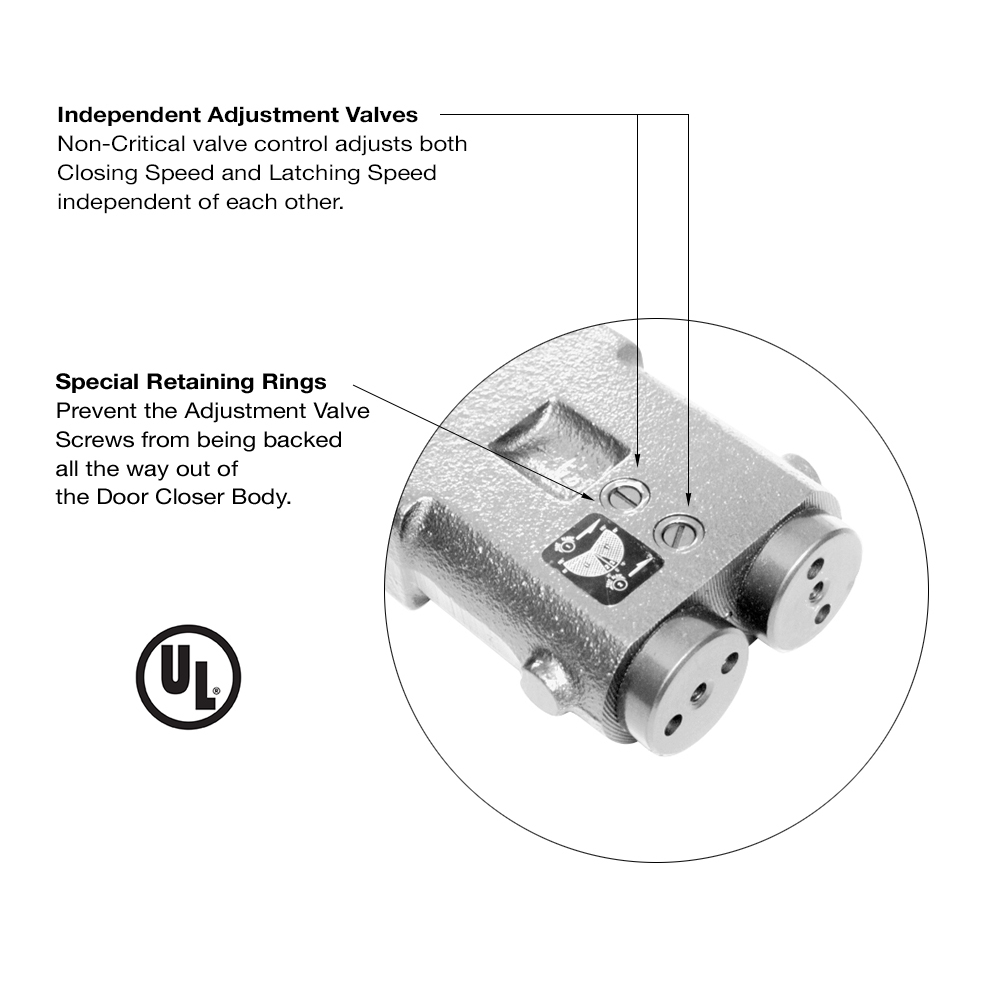

Independent Adjustment Valves
Non-Critical valve control adjusts both Closing Speed and Latching Speed independent of each other.
Special Retaining Rings Prevent the Adjustment Valve Screws from being backed all the way out of the Door Closer Body.
NOTE: An auxiliary floor or overhead door stop is recommended to prevent possible damage to both the door closer and entry way due to over-extension of maximum allowable door swing.
Weight and Size Limitations
Door Weight: 200 Lbs. (91 kg)
Exterior Door Width: 42" (1.07 m)
Interior Door Width: 48" (1.22 m)
All Doors Height: 96" (2.44 m)
Most shipping weights are approximate and have not been verified. If the exact weight is needed in order to determine shipping costs, and shipping costs are required in order for you to complete your order, please request this prior to submitting your order by contacting CRL Customer Service. Product images shown are of the actual product or a close representation. Colors can vary depending on your computer's video card and on how your monitor's color is adjusted.
Attributes
Americans with Disabilities Act: Yes
Body Height: 1-11/16
Body Length: 11-5/8
Body Widt: 3-11/16
Body Width: 3-11/16
Case Quantity: 6
Closer Type: Overhead Concealed
Compliance and Restrictions: Warning Reproductive Harm - www.p65warnings.ca.gov
Door Height: 96
Handing: Double Acting
Includes: CRL8010FS
Maximum Door Weight: 200
No Hold Open: 90°
Recommended Door Type: Aluminum, Hollow Metal
Shipping Limitations: None
Spindle: 1/2
Spring Size: 8.5
UL Listed: Yes
