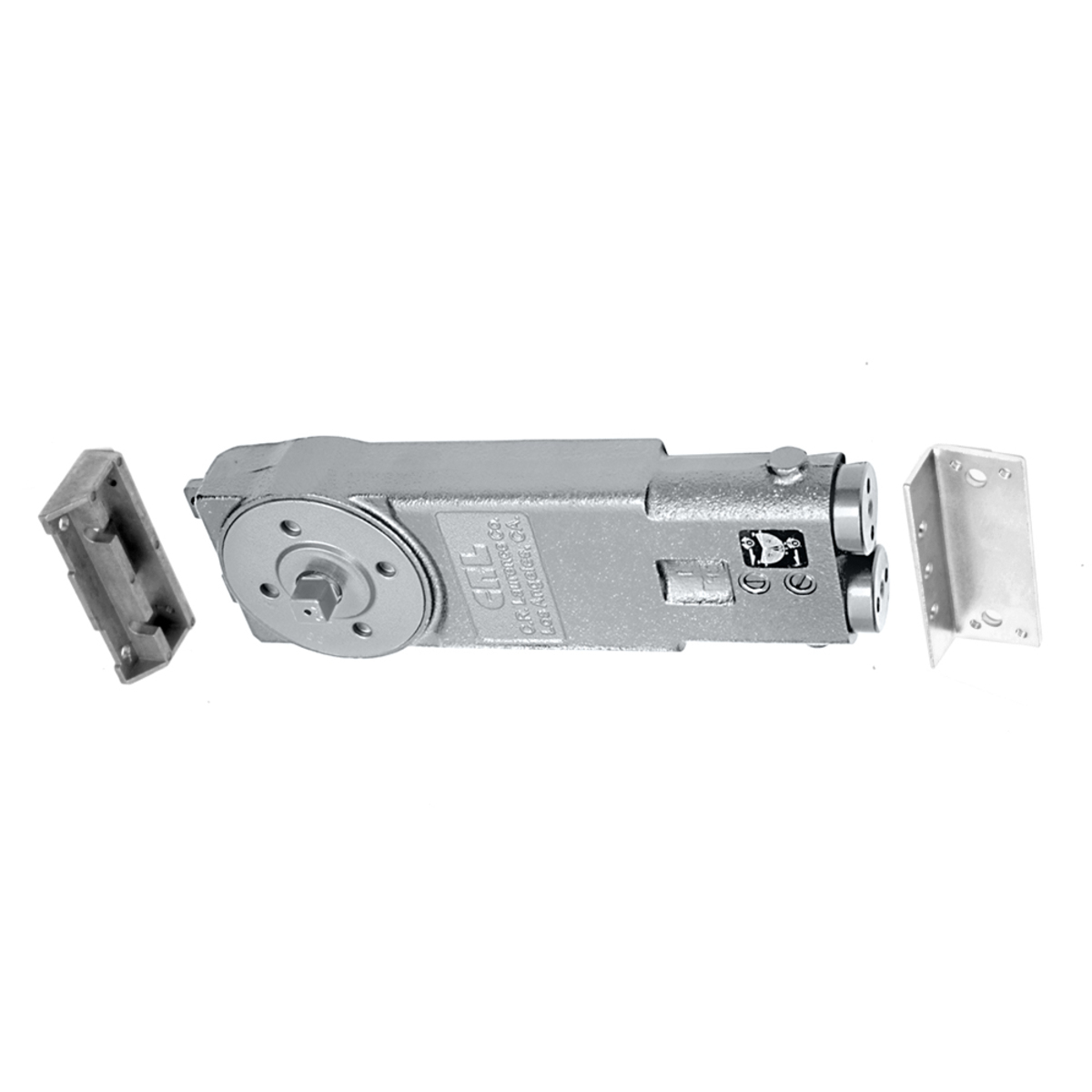

CRL 7162 Medium Duty 90 Concealed Overhead Closer Body OnlyC.R. Laurence 7162 Medium Duty 90 No Hold Open Overhead Concealed Closer Body offers an efficient solution for door control with its robust design and versatility. This closer body is interchangeable with all Jackson® style overhead concealed door closers, ensuring compatibility and ease of installation. With 20 different models available, you can select the ideal option tailored to fit your specific application. Each closer body is packaged conveniently with mounting clips, templates, and instructions, making the installation process straightforward. Designed for doors weighing up to 200 lbs and widths of up to 48 inches, it is suitable for both exterior and interior applications, with a maximum height of 96 inches. The independent adjustment valves allow for precise control over closing and latching speeds, enhancing usability and efficiency. Additionally, this product is UL Listed, ensuring it meets rigorous safety standards. The special retaining rings prevent the adjustment valve screws from being accidentally removed, promoting longevity and reliability. For optimal performance, it is recommended to use an auxiliary floor or overhead door stop to prevent potential damage from over-extension. With a 5-year limited warranty, the C.R. Laurence 7162 is a trusted choice for both building professionals and discerning homeowners seeking quality and performance in door closers.
Medium Duty 90 No Hold Open Overhead Concealed Closer Body Only
- Interchangeable with All Jackson® Style Overhead Concealed Door Closers
- 20 Models Available
- Conveniently Packaged with Templates and Instructions
- 5 Year Limited Warranty
- UL Listed
There are two advantages to buying our
Door Closer Bodies with Mounting Clips. The first is if you are only replacing a worn out Door Closer, you will reduce your costs by not purchasing unnecessary hardware. The second is that by adding accessories you can get a Door Closer with the exact accessories you need for the job you are doing. Just select a Door Closer and add the different accessory parts (Pivots, Arms, etc.) you need to create the Door Closer package of your choice. Each Door Closer Body comes packaged with Mounting Clips, Templates, and Instructions.

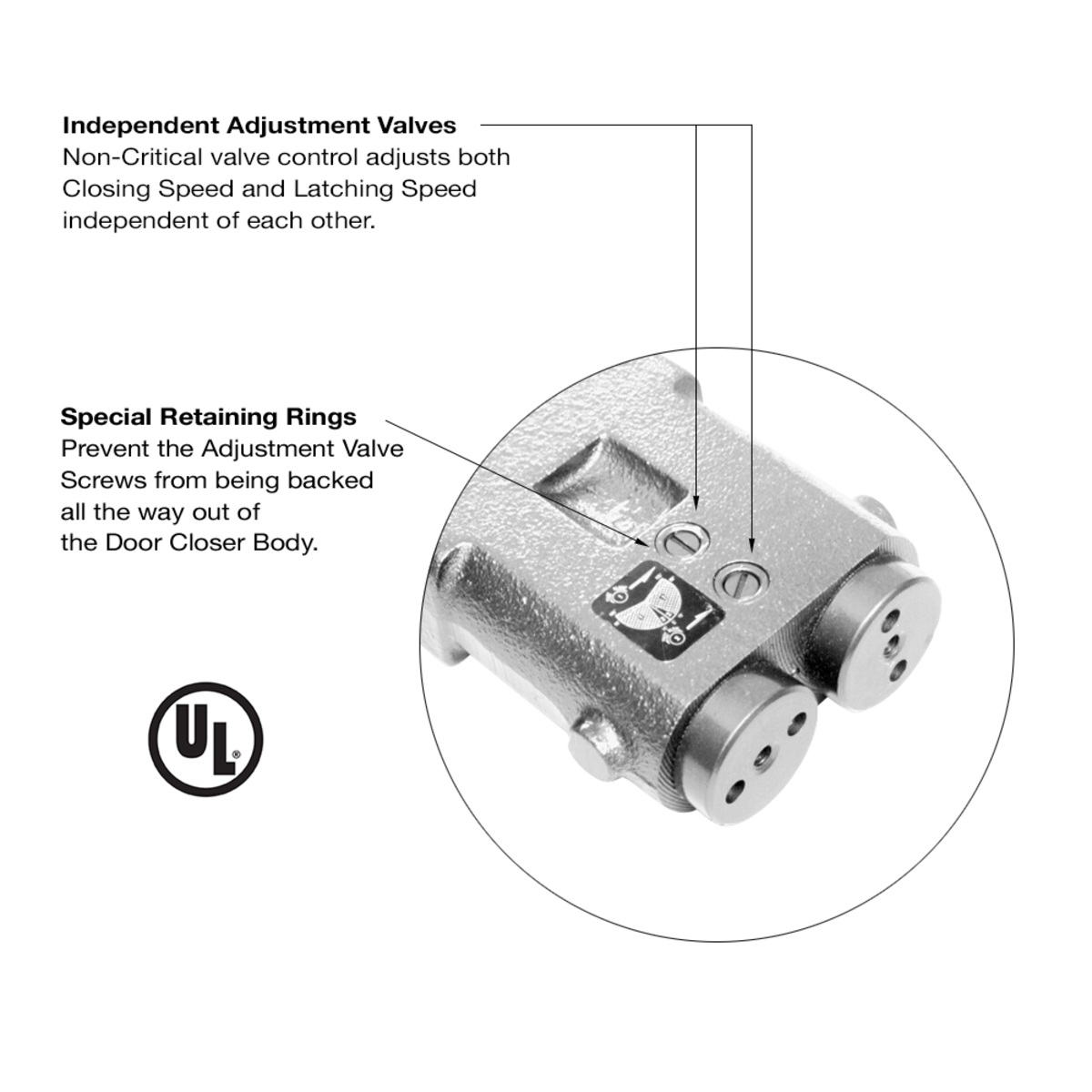

Independent Adjustment Valves
Non-Critical valve control adjusts both Closing Speed and Latching Speed independent of each other.
Special Retaining Rings Prevent the Adjustment Valve Screws from being backed all the way out of the Door Closer Body.
NOTE: An auxiliary floor or overhead door stop is recommended to prevent possible damage to both the door closer and entry way due to over-extension of maximum allowable door swing.
WEIGHT AND SIZE LIMITATIONS
Door Weight: 200 Lbs. (91 kg)
Exterior Door Width: 42" (1.07 m)
Interior Door Width: 48" (1.22 m)
All Doors Height: 96" (2.44 m)
Most shipping weights are approximate and have not been verified. If the exact weight is needed in order to determine shipping costs, and shipping costs are required in order for you to complete your order, please request this prior to submitting your order by contacting CRL Customer Service. Product images shown are of the actual product or a close representation. Colors can vary depending on your computer's video card and on how your monitor's color is adjusted.
Attributes
Americans with Disabilities Act: Yes
Body Height: 1-11/16
Body Length: 11-5/8
Body Widt: 3-11/16
Body Width: 3-11/16
Case Quantity: 6
Closer Type: Overhead Concealed
Compliance and Restrictions: Warning Reproductive Harm - www.p65warnings.ca.gov
Door Height: 96
Handing: Double Acting
Includes: CRL8010FS
Maximum Door Weight: 200
No Hold Open: 90°
Recommended Door Type: Aluminum, Hollow Metal
Shipping Limitations: None
Spindle: 1/2
Spring Size: 8.5
UL Listed: Yes
