CRL 8170A Medium Duty 105 Hold Open Concealed Closer with A End-Load HardwareC.R. Laurence 8170A Medium Duty 105 Hold Open Overhead Concealed Closer with "A" End-Load Hardware Package offers a robust solution for your door closure needs. Designed for doors with a 1" deep top rail, this overhead closer is perfect for both aluminum and hollow metal doors, accommodating a maximum weight of 200 lbs. The adjustable dual-purpose bottom pivot set allows for versatile floor or threshold mounting, providing ease of installation and flexibility. This closer features independent adjustment valves that allow you to control closing and latching speeds separately, ensuring a smooth and safe door operation. The design includes special retaining rings to prevent adjustment screws from backing out, enhancing durability and reliability. Notably, the 105° hold open feature allows for easy passage while maintaining control over the door's movement. The CRL 8170A is UL listed and comes with a five-year limited warranty, reflecting its quality and performance. With a compact body size of 1-11/16" in height, 11-5/8" in length, and 3-11/16" in width, it integrates seamlessly into various environments. An auxiliary floor or overhead door stop is recommended to protect both the closer and entryway from damage. Upgrade your door systems with the dependable CRL 8170A overhead closer today.
Medium Duty 105 Hold Open Overhead Concealed Closer with "A" End-Load Hardware Package
- A Center-Hung End-Load Hardware Package for Doors with 1" Deep Top Rails
- For Doors with 1" (25 mm) Top Rail Depth
- Adjustable Dual-Purpose Bottom Pivot Set for Floor or Threshold Mounting
- U.L. Listed with a Five Year Limited Warranty
These

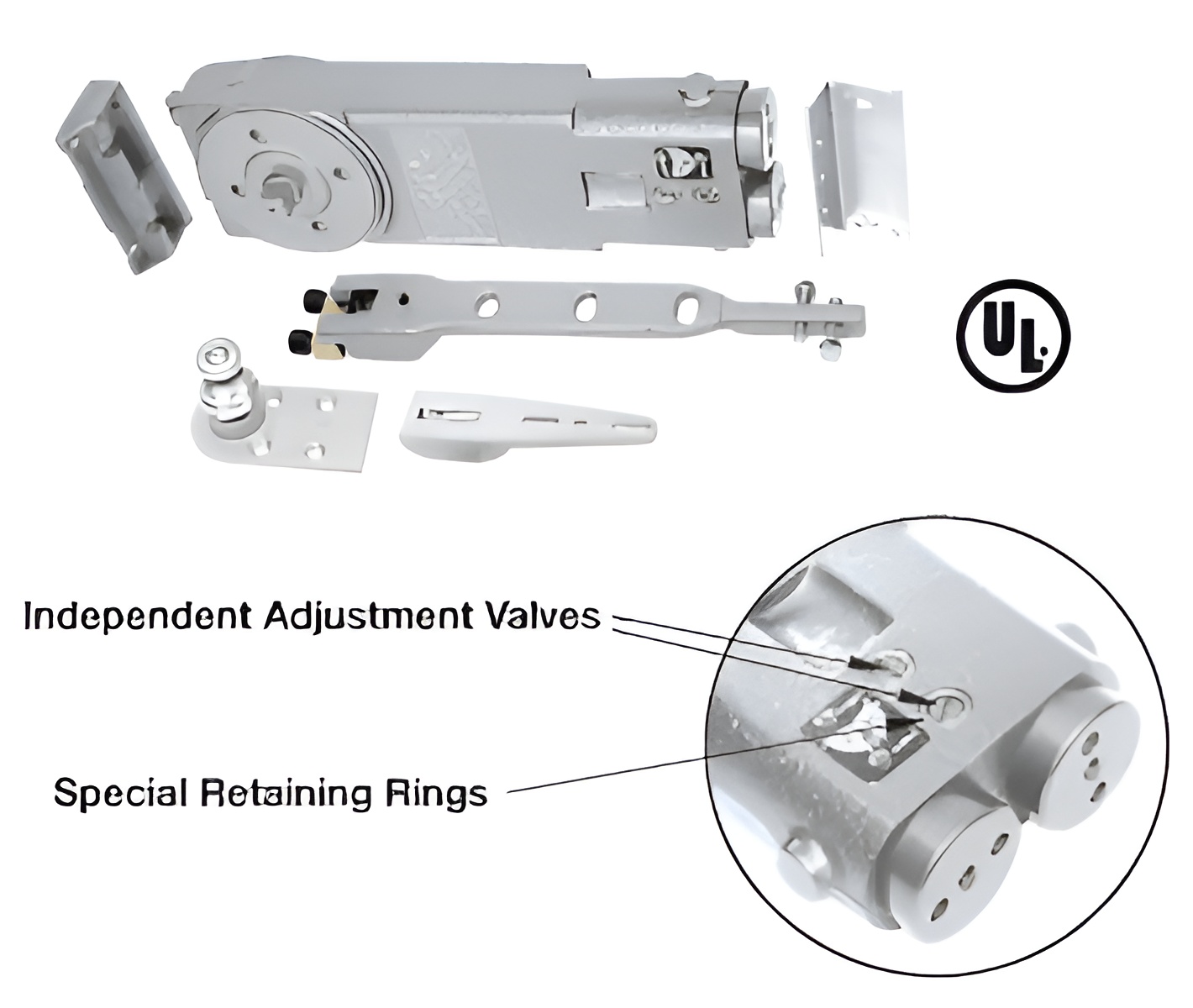

CRL Overhead Door Closer Kits consist of a Medium Spring Size Door Closer, Mounting Clips, Type "A" End-Load Arm, and a "DP" Adjustable Dual-Purpose Bottom Pivot Set. The Door Closer has independent, dual-action valves to control closing and latching speeds. Both 90 and 105º Hold Open and No Hold Open models are available. Door Closer Bodies fit into standard 1-3/4" x 4" (44 x 102 mm), or larger, extrusions. Door Closers with different spring sizes or hardware options and Door Closer Bodies with Mounting Clips and Overhead Concealed Door Closer Accessories are available.
Independent Adjustment Valves
Non-Critical valve control adjusts both Closing Speed and Latching Speed independent of each other.
Special Retaining Rings
Prevent the Adjustment Valve Screws from being backed all the way out of the Door Closer Body.
NOTE: An auxiliary floor or overhead door stop is recommended to prevent possible damage to both the door closer and entry way due to over-extension of maximum allowable door swing.
Product Warning:
This Closer is not to be used for doors weighing in excess of 200 Lbs.
Most shipping weights are approximate and have not been verified. If the exact weight is needed in order to determine shipping costs, and shipping costs are required in order for you to complete your order, please request this prior to submitting your order by contacting CRL Customer Service. Product images shown are of the actual product or a close representation. Colors can vary depending on your computer's video card and on how your monitor's color is adjusted.
Attributes
Arm Type: End Load
Body Height: 1-11/16
Body Length: 11-5/8
Body Widt: 3-11/16
Body Width: 3-11/16
Bottom Door Rail Depth: 1
Bottom Pivot Type: Floor Mount Pivot
Case Quantity: 6
Closer Type: Overhead Concealed
Compliance and Restrictions: Warning Reproductive Harm - www.p65warnings.ca.gov
Handing: Double Acting
Hold Open: 105°
Includes: CRL7070, CRL9010FS, CRL8010A, CRL8010DP
Material: Aluminum
Maximum Door Weight: 200
Package Type: End Load A
Recommended Door Type: Aluminum, Hollow Metal
Replacement Parts: CRL8010CPAL, CRL8010CPDU, HMC035, DCH4SAS, DCH4DUS, ELB2, ELS1
Shipping Limitations: None
Similar: CRL8760A
Spindle: 1/2
Spring Size: Medium
Top Rail Depth: 1
Type: Center Hung
UL Listed: Yes
