CRL 8170S Medium Duty 105 Concealed Overhead Closer with Side-Load HardwareC.R. Laurence 8170S Medium Duty 105 Hold Open Overhead Concealed Closer with S-Side-Load Hardware Package is engineered for durability and ease of use in various door applications. Designed specifically for doors with a 1/2" top rail depth, this closer provides an adjustable dual-purpose bottom pivot set that can be mounted either on the floor or threshold, ensuring flexible installation options. This comprehensive kit includes all necessary components, such as a medium spring size door closer, mounting clips, and a type S-side-load arm, making it a convenient choice for building professionals. The independent dual-action valves allow for precise control over both closing and latching speeds, enhancing functionality and safety. With a hold-open feature at 105 degrees, it provides added convenience in high-traffic areas. Constructed from durable aluminum, the 8170S model is UL Listed and comes with a 5-year limited warranty, ensuring reliability and peace of mind. It is important to note that this closer is rated for doors weighing up to 200 lbs, making it suitable for a variety of aluminum and hollow metal doors. For optimal performance, it's recommended to use an auxiliary door stop to prevent over-extension, safeguarding both the closer and the door frame.
Medium Duty 105 Hold Open Overhead Concealed Closer with S-Side-Load Hardware Package
- For Doors with 1/2" (13 mm) Top Rail Depth
- Adjustable Dual-Purpose Bottom Pivot Set for Floor or Threshold Mounting
- Includes All Necessary Parts
- 5 Year Limited Warranty
- UL Listed
These

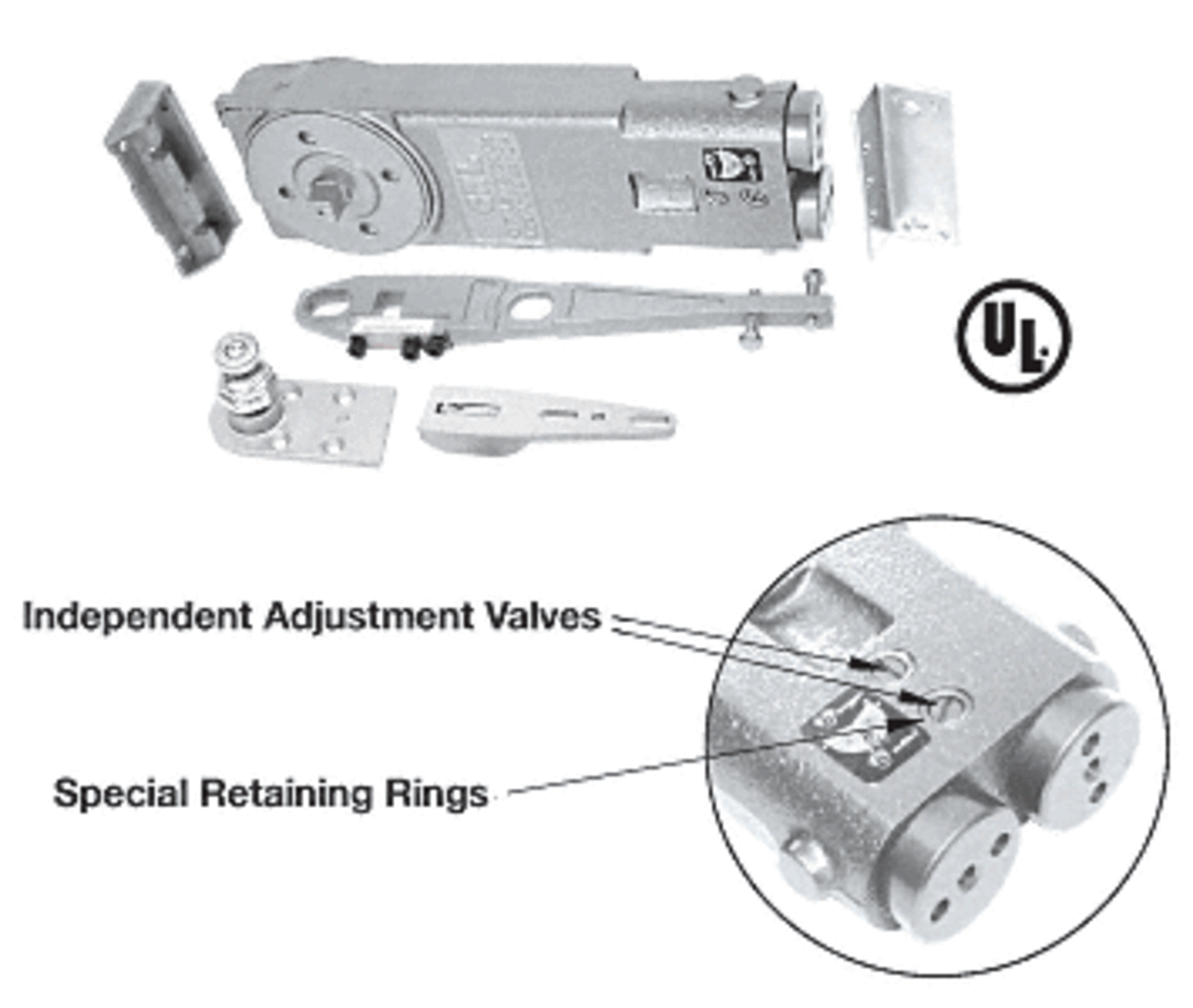

CRL Overhead Door Closer Kits consist of a Medium Spring Size Door Closer, Mounting Clips, Type S-Side-Load Arm, and a DP-Adjustable Dual-Purpose Bottom Pivot Set or GE- Bottom Pivot Set. The Door Closer has independent, dual-action valves to control closing and latching speeds. Both 90 and 105º Hold Open and No Hold Open models are available. Door Closer Bodies fit into standard 1-3/4" x 4" (44 x 102 mm), or larger, extrusions. Door Closers with different spring sizes or hardware options and Door Closer Bodies with Mounting Clips and Overhead Concealed Door Closer Accessories are available.
Independent Adjustment Valves
Non-Critical valve control adjusts both Closing Speed and Latching Speed independent of each other.
Special Retaining Rings
Prevent the Adjustment Valve Screws from being backed all the way out of the Door Closer Body.
NOTE: An auxiliary floor or overhead door stop is recommended to prevent possible damage to both the door closer and entry way due to over-extension of maximum allowable door swing.
Product Warning:
This Closer is not to be used for doors weighing in excess of 200 Lbs.
Most shipping weights are approximate and have not been verified. If the exact weight is needed in order to determine shipping costs, and shipping costs are required in order for you to complete your order, please request this prior to submitting your order by contacting CRL Customer Service. Product images shown are of the actual product or a close representation. Colors can vary depending on your computer's video card and on how your monitor's color is adjusted.
Attributes
Body Height: 1-11/16
Body Length: 11-5/8
Body Widt: 3-11/16
Body Width: 3-11/16
Bottom Door Rail Depth: 1
Bottom Pivot Type: Dual Purpose Pivot
Case Quantity: 6
Closer Type: Overhead Concealed
Compliance and Restrictions: Warning Reproductive Harm - www.p65warnings.ca.gov
Handing: Double Acting
Hold Open: 105°
Includes: CRL7170, CRL8010FS, CRL8010S, CRL8010DP
Material: Aluminum
Maximum Door Weight: 200
Package Type: Side Load S
Recommended Door Type: Aluminum, Hollow Metal
Replacement Parts: CRL8010CPAL, CRL8010CPDU, HMC035, DCH4SAS, DCH4DUS, CRL8010SCP, SLB3, SLS1
Shipping Limitations: None
Similar: CRL8770S
Spindle: 1/2
Spring Size: Medium
Top Rail Depth: 1/2
Type: Center Hung
UL Listed: Yes
