CRL 8360 Medium Duty 90 Hold Open Low Profile Floor CloserC.R. Laurence 8360 Medium Duty 90 Hold Open Low Profile Floor Mounted Closer is an ideal solution for installations requiring a compact design without compromising functionality. With a capacity of 264 lbs and compatibility with doors up to 42 inches wide, this closer is perfect for both commercial and residential applications. Its low-profile design, featuring a depth of just 1-9/16 inches (40 mm), allows for easy installation, especially on upper floors where space is limited. This closer is equipped with independent closing and latching valves, enabling precise control over door movement. The 90-degree hold-open feature provides convenience in high-traffic areas, while the interchangeable spindle heights offer flexibility for various finished floor elevations. The 8360 model is UL Listed, assuring compliance with safety standards, and comes with a 5-year limited warranty for peace of mind. It is recommended to use an auxiliary floor or overhead door stop to prevent damage from over-extension of the door swing. Suitable for aluminum and hollow metal doors, this floor closer blends durability with sleek aesthetics, making it a reliable choice for any project where performance and design are paramount.
Medium Duty 90 Hold Open Low Profile Floor Mounted Closer
- 264 Lb. Capacity, 42" Doors

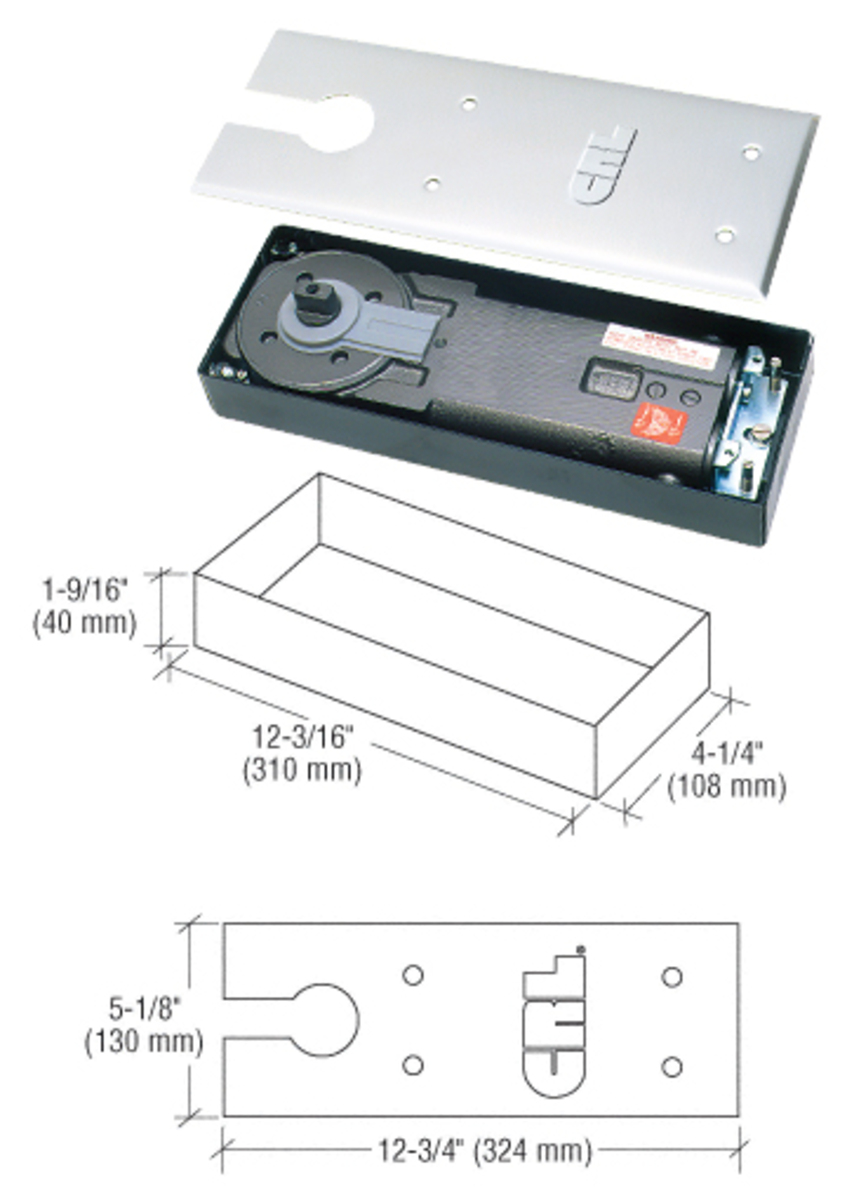

- Low Profile 1-9/16" (40 mm) Depth
- Interchangeable Spindle Heights
- 5 Year Limited Warranty
- UL Listed
These
CRL Shallow Depth Floor Mounted Door Closers are preferred for many types of installations because they only require a shallow 1-9/16" (40 mm) cut-out in the floor. This is especially important on floors above the ground floor. The shallow cut-out leaves enough remaining floor under the Door Closer to support the door weight. The Door Closer has separate valves to control closing and latching speeds. Both 90º and 105º Hold Open and No Hold Open models are available.
The 1/8" (3 mm) collar height Spindle is supplied with the door closer, providing a 5/16" (8 mm) clearance from finished floor to door bottom. Optional Spindles to accommodate different finished floor heights are also available. Other accessories, such as Cover Plates, Pivots, Center-Hung and Offset Arms are also available.
NOTE: An auxiliary floor or overhead door stop is recommended to prevent possible damage to both the door closer and entryway due to over-extension of maximum allowable door swing.
SPECIFICATIONS:
Maximum Door Weight: 264 Lbs. (120 kg)
Maximum Interior Door Width: 42" (1.07 m)
Maximum Exterior Door Width: 38" (965 mm)
Most shipping weights are approximate and have not been verified. If the exact weight is needed in order to determine shipping costs, and shipping costs are required in order for you to complete your order, please request this prior to submitting your order by contacting CRL Customer Service. Product images shown are of the actual product or a close representation. Colors can vary depending on your computer's video card and on how your monitor's color is adjusted.
Attributes
Auxiliary Stop Recommended: Yes
Awning Operator: Yes
Body Height: 1-9/16
Body Length: 12-3/16
Body Widt: 4-1/4
Body Width: 4-1/4
Closer Body With Box: Yes
Closer Type: Floor Closer
Compliance and Restrictions: Warning Reproductive Harm - www.p65warnings.ca.gov
Door Height: 96
Handing: Double Acting
Hold Open: 90°
Includes: CRL8372, CRL9040S3
Independent Closing and Latching Valves: Yes
Interchangeable Spindles: Yes
Maximum Door Width - Exterior: 48 Inches
Maximum Door Width - Interior: 54 Inches
Maximum Weight Center Hung: 264 Pounds
Not Recommended for Exterior Application: Yes
Opening Degree: 90
Recommended Door Type: Aluminum, Hollow Metal
Replacement Parts: CRL8372, CRL9040S4
Shipping Limitations: None
Spindle Included: Yes
Spring Size: Medium
UL Listed: Yes
