CRL 8422 Light Spring 180 Narrow Floor-Mounted Closer, No Hold OpenC.R. Laurence 8422 Light Spring 180 No Hold Open Narrow Width Floor Mounted Closer is the ideal choice for doors utilizing CRL's Patch Hardware, providing an elegant and streamlined look. With its narrower cover plates, this door closer enhances aesthetics without sacrificing performance. It features independent closing and latching valves, allowing for customized speed control for optimal functionality. Designed for versatility, this closer accommodates doors up to 264 lbs and offers a maximum width of 42 inches for interior doors and 38 inches for exterior applications. The standard 1/8" (3 mm) collar height spindle ensures a 5/16" (8 mm) clearance from the finished floor to the door bottom, with additional interchangeable spindles available for varying floor heights. UL Listed for safety, the 8422 model also comes with a 5-year limited warranty, underscoring its reliability. It is important to note that this door closer operates up to a maximum of 180º, and an auxiliary floor or overhead stop is necessary for limited opening angles. Whether for commercial or residential use, the CRL 8422 is the perfect floor-mounted solution, combining durability with refined design. Enhance your space with this efficient and attractive door closer.
Light Spring 180 No Hold Open Narrow Width Floor Mounted Closer
- The Perfect Door Closer to Support CRL's Patch Hardware
- Interchangeable Spindle Heights
- 5 Year Limited Warranty
- UL Listed
These
CRL Narrow Width Floor Mounted Door Closers are preferred on doors installed with Patch Hardware because smaller cover plates are more attractive in this type of installation. The Door Closer has separate valves to control closing and latching speeds. 90º Hold Open and No Hold Open models are available.
The 1/8" (3 mm) collar height Spindle is supplied with the door closer, providing a 5/16" (8 mm) clearance from finished floor to door bottom. Optional Spindles to accommodate different finished floor heights are also available. Other accessories, such as Cover Plates, Pivots, Center-Hung and Offset Arms are also available.
NOTE: This Door Closer is designed to open to a maximum of 180º. An auxiliary floor or overhead stop is required to stop the door at less than 180º.
SPECIFICATIONS:
Maximum Door Weight: 264 Lbs. (120 kg)
Maximum Interior Door Width: 42" (1.07 m)
Maximum Exterior Door Width: 38" (965 mm)
Product Warning:
The
8400 Series Floor Closer is designed to open to a maximum of 180º. An auxiliary floor or overhead stop is required to stop the door at less than 180º.
Most shipping weights are approximate and have not been verified. If the exact weight is needed in order to determine shipping costs, and shipping costs are required in order for you to complete your order, please request this prior to submitting your order by contacting CRL Customer Service. Product images shown are of the actual product or a close representation. Colors can vary depending on your computer's video card and on how your monitor's color is adjusted.

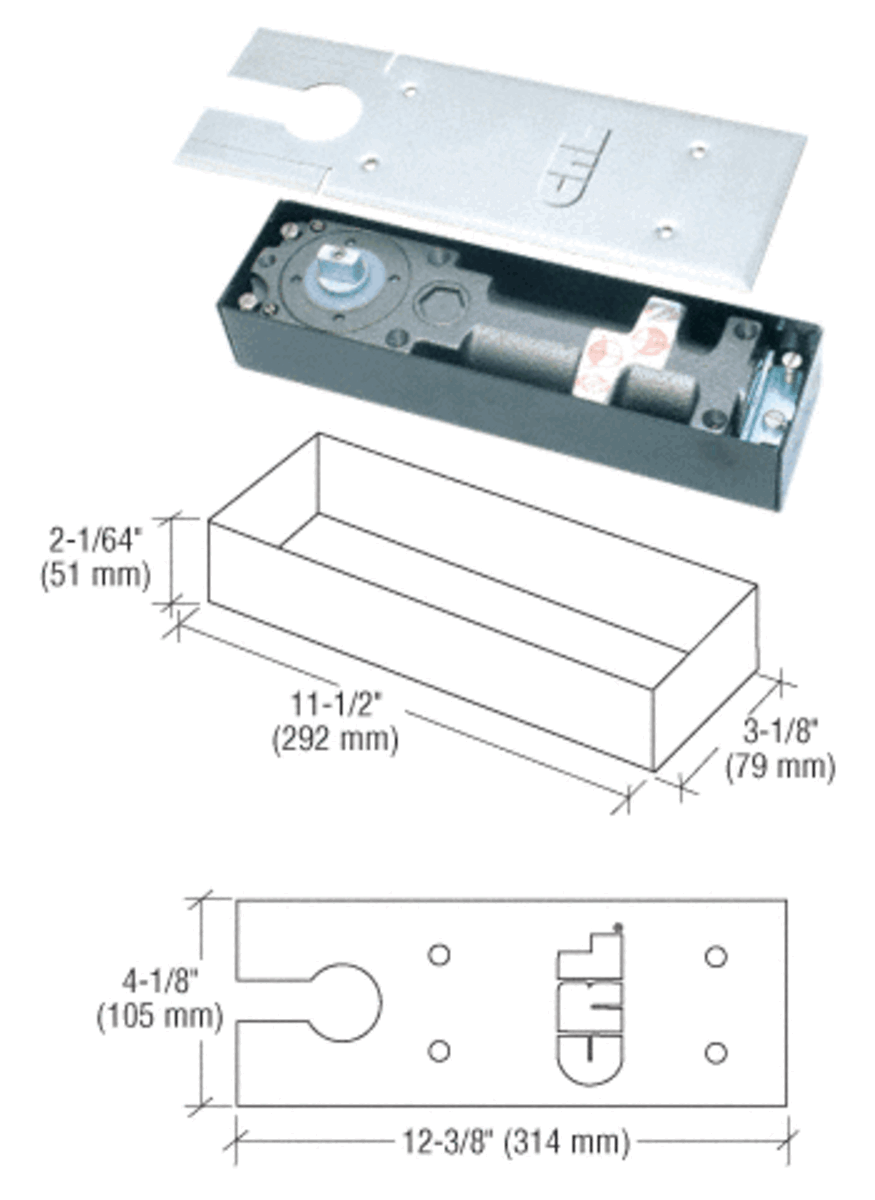

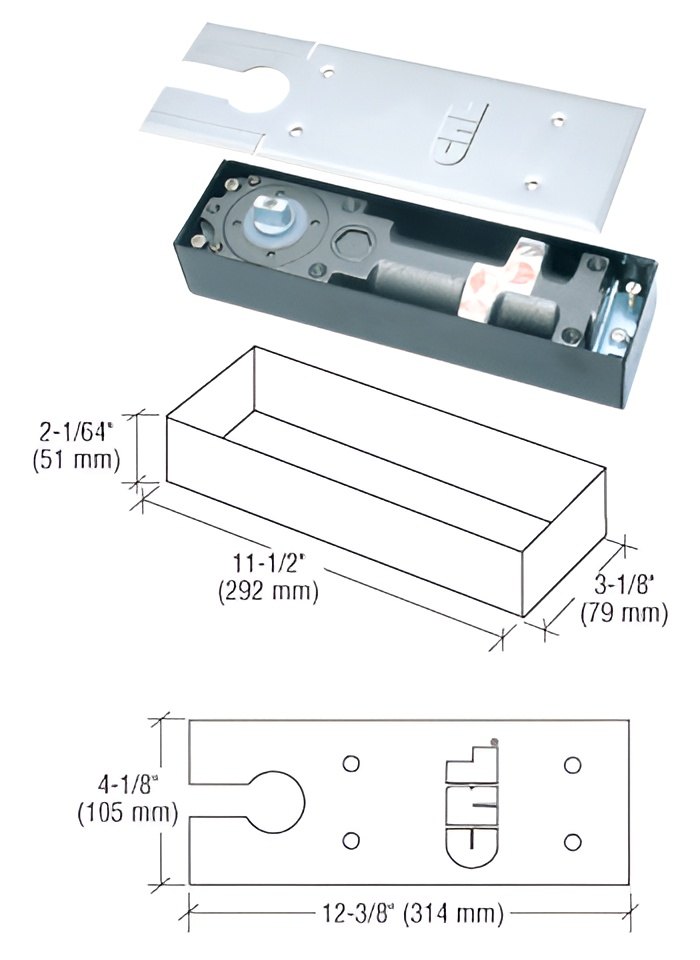

Attributes
Auxiliary Stop Recommended: Yes
Body Height: 2-1/64
Body Length: 11-1/2
Body Widt: 3-1/8
Body Width: 3-1/8
Closer Body With Box: Yes
Closer Type: Floor Closer
Compliance and Restrictions: Warning Reproductive Harm - www.p65warnings.ca.gov
Door Height: 96
Handing: Double Acting
Includes: CRL84CB, CRL9040S2
Independent Closing and Latching Valves: Yes
Interchangeable Spindles: Yes
Interior Or Exterior Doors: Yes
Maximum Door Width - Exterior: 48 Inches
Maximum Door Width - Interior: 54 Inches
Maximum Weight Center Hung: 264
No Hold Open: 180°
Recommended Door Type: Aluminum, Hollow Metal
Replacement Parts: CRL84CB, CRL9040S3
Shipping Limitations: None
Similar: CRL8532, J990NHOD
Spindle Included: Yes
Spring Size: Light
UL Listed: Yes
