CRL 8460 Medium Duty 180 Hold Open 90 Narrow Floor-Mounted CloserC.R. Laurence 8460 Medium Duty 180 Hold Open at 90 Narrow Width Floor Mounted Closer is the ideal solution for doors utilizing CRL's Patch Hardware, offering a sleek and attractive installation with smaller cover plates. This durable floor closer is designed with independent closing and latching valves, allowing for precise control of door speeds. It supports a maximum door weight of 264 lbs (120 kg) and accommodates interior doors up to 54 inches wide and exterior doors up to 48 inches wide. With an interchangeable spindle height feature, the 1/8" (3 mm) collar height spindle provides a clearance of 5/16" (8 mm) from the finished floor to the door bottom. Optional spindles are available to cater to varying floor heights. The closer is UL Listed and comes with a generous 5-year limited warranty, ensuring reliability and peace of mind. The 8460 model allows the door to open up to 180 degrees, although an auxiliary stop is recommended to prevent excessive swinging. This closer is compatible with aluminum and hollow metal doors, making it a versatile choice for various applications. Additionally, accessories such as cover plates and pivots are readily available to enhance functionality.
Medium Duty 180 Hold Open at 90 Narrow Width Floor Mounted Closer
- The Perfect Door Closer to Support CRL's Patch Hardware
- Interchangeable Spindle Heights
- 5 Year Limited Warranty
- UL Listed
These
CRL Narrow Width Floor Mounted Door Closers are preferred on doors installed with Patch Hardware because smaller cover plates are more attractive in this type of installation. The Door Closer has separate valves to control closing and latching speeds. 90º Hold Open and No Hold Open models are available.
The 1/8" (3 mm) collar height Spindle is supplied with the door closer, providing a 5/16" (8 mm) clearance from finished floor to door bottom. Optional Spindles to accommodate different finished floor heights are also available. Other accessories, such as Cover Plates, Pivots, Center-Hung and Offset Arms are also available.
NOTE: This Door Closer is designed to open to a maximum of 180º. An auxiliary floor or overhead stop is required to stop the door at less than 180 degrees.
SPECIFICATIONS:
Maximum Door Weight: 264 Lbs. (120 kg)
Maximum Interior Door Width: 42" (1.07 m)
Maximum Exterior Door Width: 38" (965 mm)
Product Warning:
The
8400 Series Floor Closer is designed to open to a maximum of 180 degree. An auxiliary floor or overhead stop is required to stop the door at less than 180 degree.
Most shipping weights are approximate and have not been verified. If the exact weight is needed in order to determine shipping costs, and shipping costs are required in order for you to complete your order, please request this prior to submitting your order by contacting CRL Customer Service. Product images shown are of the actual product or a close representation. Colors can vary depending on your computer's video card and on how your monitor's color is adjusted.
Attributes
Auxiliary Stop Recommended: Yes

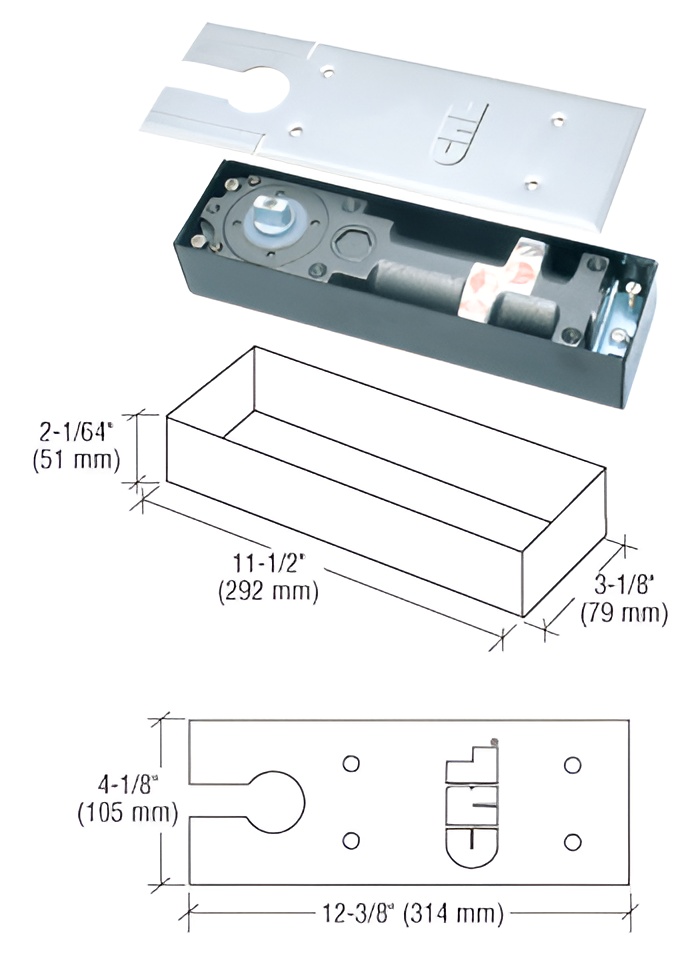

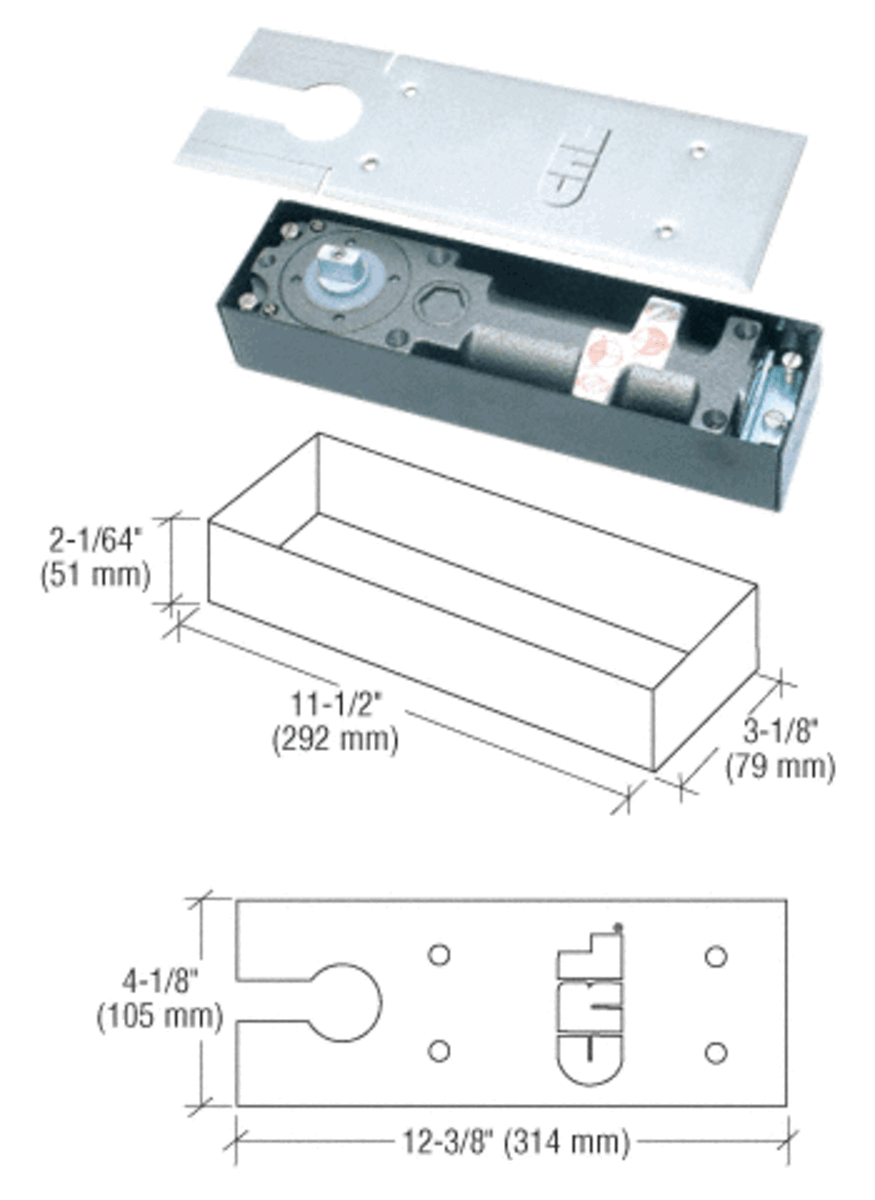

Body Height: 2-1/64
Body Length: 11-1/2
Body Widt: 3-1/8
Body Width: 3-1/8
Closer Body With Box: Yes
Closer Type: Floor Closer
Compliance and Restrictions: Warning Reproductive Harm - www.p65warnings.ca.gov
Door Height: 96
Handing: Double Acting
Hold Open: 180°
Includes: CRL84CB, CRL9040S2
Independent Closing and Latching Valves: Yes
Interchangeable Spindles: Yes
Interior Or Exterior Doors: Yes
Maximum Door Width - Exterior: 48 Inches
Maximum Door Width - Interior: 54 Inches
Maximum Weight Center Hung: 264
Opening Degree: 90
Recommended Door Type: Aluminum, Hollow Metal
Replacement Parts: CRL84CB, CRL9040S3
Shipping Limitations: None
Similar: CRL8544, J990NHOD
Spindle Included: Yes
Spring Size: Medium
UL Listed: Yes
