CRL 8462 Medium Duty 180 Narrow Floor-Mounted Closer, No Hold OpenC.R. Laurence 8462 Medium Duty 180 No Hold Open Narrow Width Floor Mounted Closer delivers exceptional performance and reliability for high-traffic areas. Designed specifically to complement CRL's Patch Hardware, this door closer features a streamlined aesthetic that integrates seamlessly into modern installations. With a 180º maximum opening capability, it provides flexibility while requiring an auxiliary stop for openings less than 180º. The independent closing and latching speed valves allow for precise control, ensuring smooth operation every time. The door closer is compatible with doors weighing up to 264 lbs and widths of up to 42" for interior doors and 38" for exterior doors, catering to a variety of architectural needs. Included with the closer is a 1/8" (3 mm) collar height spindle, providing a 5/16" (8 mm) clearance from the finished floor, with optional spindles available for different floor heights. The unit is UL Listed and backed by a 5-year limited warranty, ensuring a dependable choice for both professionals and discerning homeowners. For enhanced functionality, a range of accessories such as cover plates and offset arms are available, making the CRL 8462 an ideal solution for both commercial and residential applications.
Medium Duty 180 No Hold Open Narrow Width Floor Mounted Closer
- The Perfect Door Closer to Support CRL's Patch Hardware
- Interchangeable Spindle Heights
- 5 Year Limited Warranty
- UL Listed
These
CRL Narrow Width Floor Mounted Door Closers are preferred on doors installed with Patch Hardware because smaller cover plates are more attractive in this type of installation. The Door Closer has separate valves to control closing and latching speeds. 90º Hold Open and No Hold Open models are available.
The 1/8" (3 mm) collar height Spindle is supplied with the door closer, providing a 5/16" (8 mm) clearance from finished floor to door bottom. Optional Spindles to accommodate different finished floor heights are also available. Other accessories, such as Cover Plates, Pivots, Center-Hung and Offset Arms are also available.
NOTE: This Door Closer is designed to open to a maximum of 180º. An auxiliary floor or overhead stop is required to stop the door at less than 180º.
SPECIFICATIONS:
Maximum Door Weight: 264 Lbs. (120 kg)
Maximum Interior Door Width: 42" (1.07 m)
Maximum Exterior Door Width: 38" (965 mm)
Product Warning:
The
8400 Series Floor Closer is designed to open to a maximum of 180º. An auxiliary floor or overhead stop is required to stop the door at less than 180º.
Most shipping weights are approximate and have not been verified. If the exact weight is needed in order to determine shipping costs, and shipping costs are required in order for you to complete your order, please request this prior to submitting your order by contacting CRL Customer Service. Product images shown are of the actual product or a close representation. Colors can vary depending on your computer's video card and on how your monitor's color is adjusted.
Attributes
Auxiliary Stop Recommended: Yes

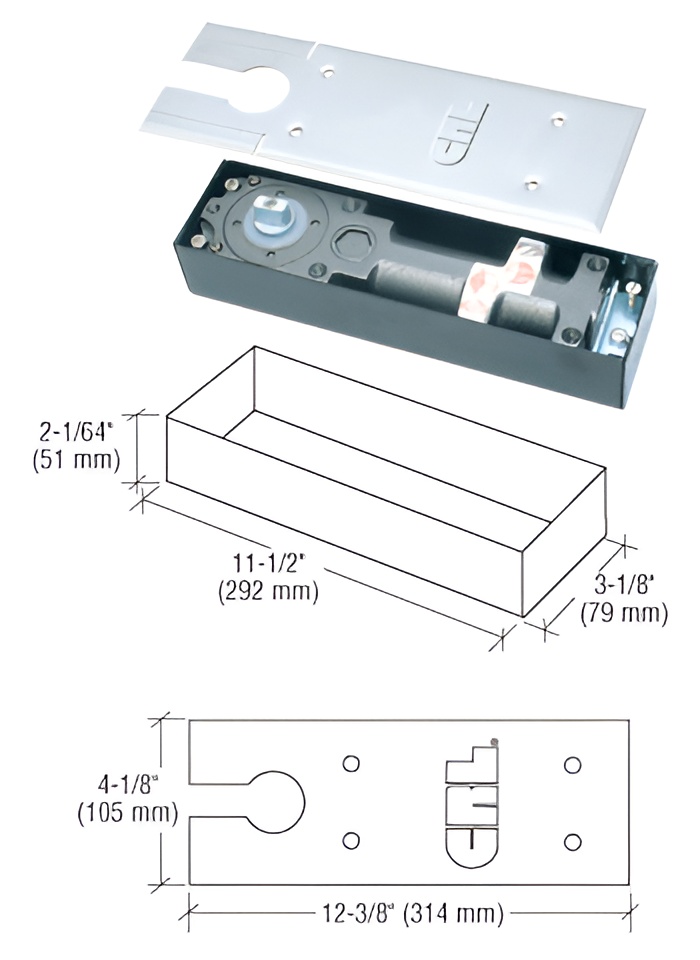

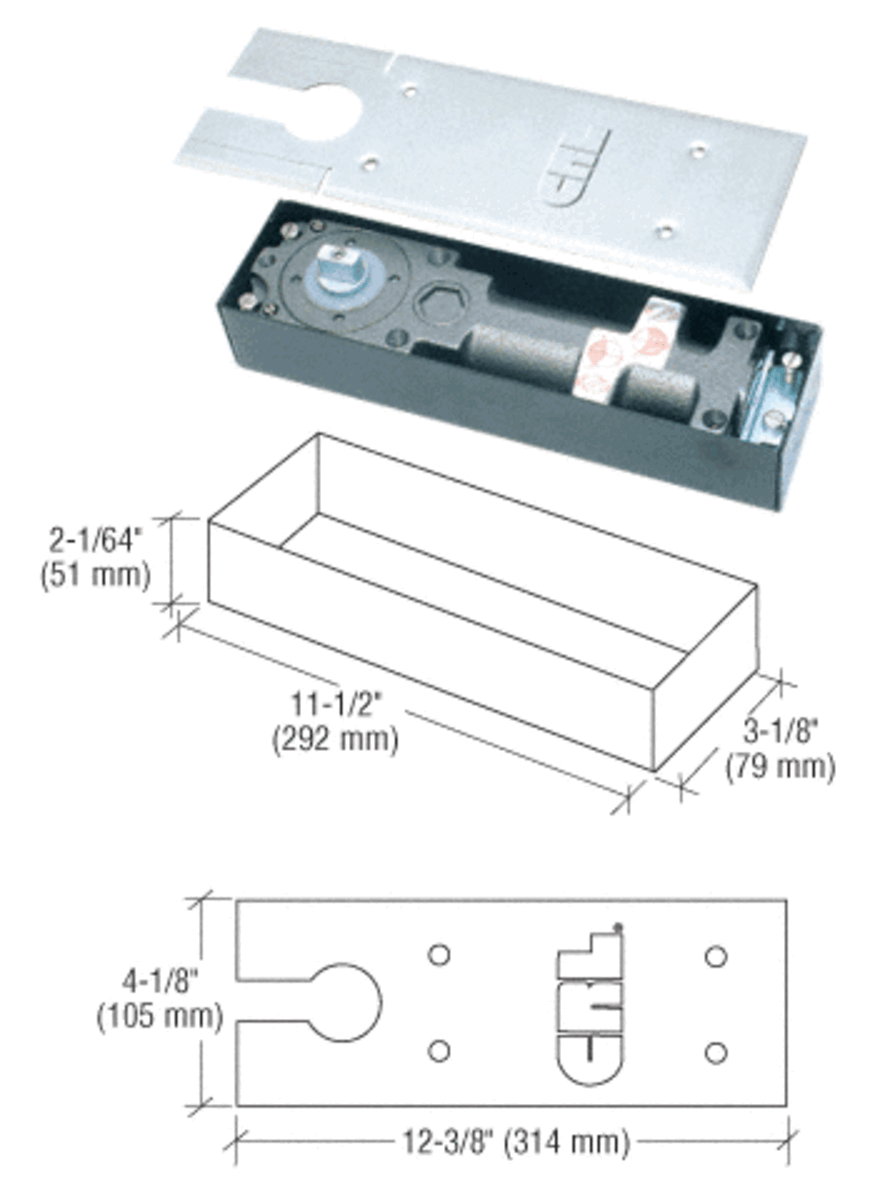

Body Height: 2-1/64
Body Length: 11-1/2
Body Widt: 3-1/8
Body Width: 3-1/8
Closer Body With Box: Yes
Closer Type: Floor Closer
Compliance and Restrictions: Warning Reproductive Harm - www.p65warnings.ca.gov
Door Height: 96
Handing: Double Acting
Includes: CRL84CB, CRL9040S2
Independent Closing and Latching Valves: Yes
Interchangeable Spindles: Yes
Interior Or Exterior Doors: Yes
Maximum Door Width - Exterior: 48 Inches
Maximum Door Width - Interior: 54 Inches
Maximum Weight Center Hung: 264
No Hold Open: 180°
Recommended Door Type: Aluminum, Hollow Metal
Replacement Parts: CRL84CB, CRL9040S3
Shipping Limitations: None
Similar: CRL8542, J990NHOD
Spindle Included: Yes
Spring Size: Medium
UL Listed: Yes
