C.R. Laurence 8534 90 Hold Open Size 3 Spring Heavy Weight Floor Mounted Door Closer is the ideal solution for supporting CRL's robust Door Rail System. With a remarkable capacity to handle doors weighing up to 800 lbs. (363 kg), this floor-mounted closer is designed for heavy-duty applications without compromising on performance. It features interchangeable spindle heights, ensuring compatibility with various finished floor heights, making installation straightforward and adaptable. This model offers independent closing and latching speed adjustments, allowing for precise control over door operation. Available in both 90º and 105º hold open options, it caters to diverse user needs. The closer is UL Listed, reflecting its adherence to rigorous safety standards. Designed for both interior and exterior doors, the 8534 is suitable for a maximum interior door width of 42" (1.07 m) and a maximum exterior width of 36" (0.96 m). It is recommended to use an auxiliary floor or overhead door stop to prevent potential damage from over-extension. With a 5-year limited warranty, you can trust in the durability and reliability of this exceptional door closer, making it a prudent choice for any building professional or knowledgeable homeowner.
90 Hold Open Size 3 Spring Heavy Weight Floor Mounted Door Closer
Most shipping weights are approximate and have not been verified. If the exact weight is needed in order to determine shipping costs, and shipping costs are required in order for you to complete your order, please request this prior to submitting your order by contacting CRL Customer Service. Product images shown are of the actual product or a close representation. Colors can vary depending on your computer's video card and on how your monitor's color is adjusted.
Auxiliary Stop Recommended: Yes

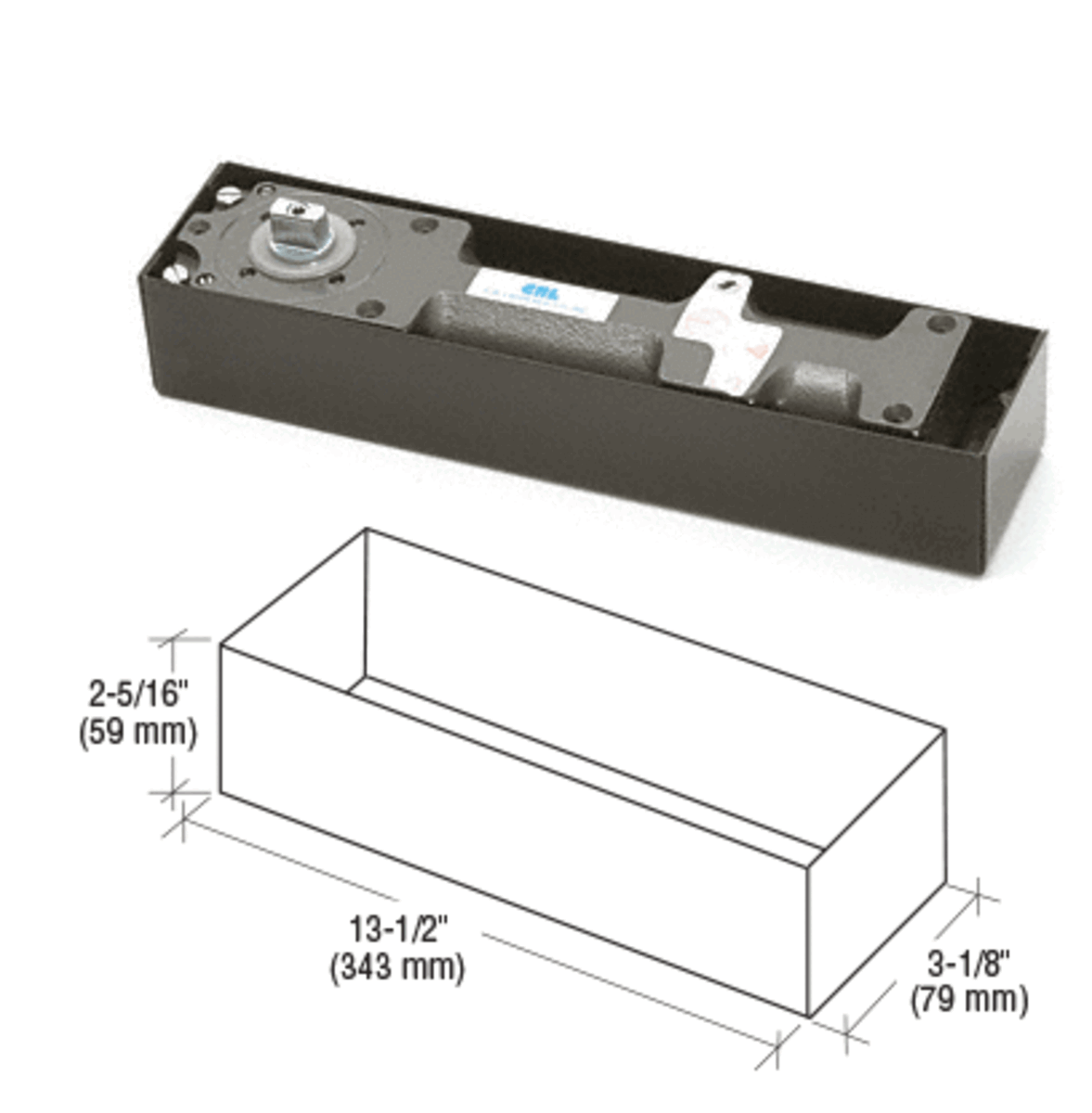

Body Height: 2-5/16
Body Length: 13-1/2
Body Widt: 3-1/8
Body Width: 3-1/8
Closer Body With Box: Yes
Closer Type: Floor Closer
Compliance and Restrictions: Warning Reproductive Harm - www.p65warnings.ca.gov
Door Height: 96
Handing: Double Acting
Hold Open: 90°
Includes: CRL85CB, CRL9040S3
Independent Closing and Latching Valves: Yes
Interchangeable Spindles: Yes
Interior Or Exterior Doors: Yes
Maximum Door Width - Exterior: 48 Inches
Maximum Door Width - Interior: 54 Inches
Maximum Weight Center Hung: 800 Pounds
Opening Degree: 90
Recommended Door Type: Aluminum, Hollow Metal
Replacement Parts: CRL85CB, CRL9040S3
Shipping Limitations: None
Similar: CRL846, J993HOD
Spindle Included: Yes
Spring Size: 3
UL Listed: Yes
