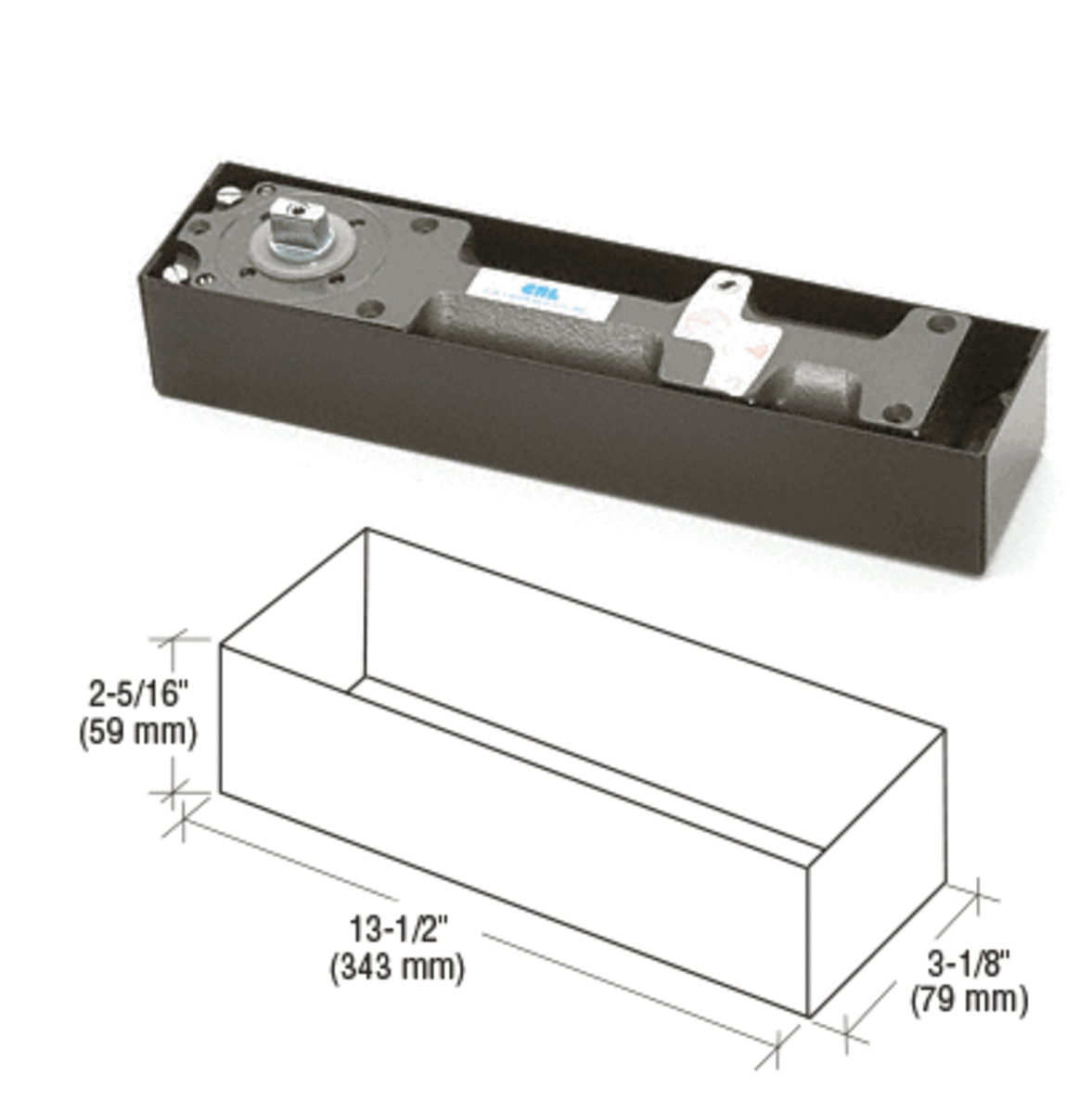

CRL 8536 105 Hold Open Size 3 Spring Heavy Weight Floor Mounted Door Closer is the ideal solution for high-traffic environments requiring robust door control. Designed to support CRL's Door Rail System, this heavy-duty closer can handle doors weighing up to 800 lbs (363 kg), making it suitable for both interior and exterior applications. With interchangeable spindle heights, the CRL 8536 accommodates various finished floor levels, ensuring a precise fit for any installation. It features independent closing and latching speed adjustments, allowing for custom performance tailored to specific needs. This versatility is complemented by the option for either a 90º or 105º hold open, providing flexibility based on door usage. The closer is UL Listed, ensuring compliance with safety standards, and comes with a 5-year limited warranty for added peace of mind. Its dimensions-2-5/16" height, 13-1/2" length, and 3-1/8" width-make it a compact yet powerful choice for heavy applications. For optimal performance, it is recommended to pair the closer with an auxiliary floor or overhead door stop to prevent over-extension damage. Invest in the reliability and durability of the CRL 8536 for efficient door management in your building projects.
105 Hold Open Size 3 Spring Heavy Weight Floor Mounted Door Closer
Most shipping weights are approximate and have not been verified. If the exact weight is needed in order to determine shipping costs, and shipping costs are required in order for you to complete your order, please request this prior to submitting your order by contacting CRL Customer Service. Product images shown are of the actual product or a close representation. Colors can vary depending on your computer's video card and on how your monitor's color is adjusted.
Auxiliary Stop Recommended: Yes
Body Height: 2-5/16
Body Length: 13-1/2
Body Widt: 3-1/8
Body Width: 3-1/8
Closer Body With Box: Yes
Closer Type: Floor Closer
Compliance and Restrictions: Warning Reproductive Harm - www.p65warnings.ca.gov
Door Height: 96
Handing: Double Acting
Hold Open: 105°
Includes: CRL85CB, CRL9040S3
Independent Closing and Latching Valves: Yes
Interchangeable Spindles: Yes
Interior Or Exterior Doors: Yes
Maximum Door Width - Exterior: 48 Inches
Maximum Door Width - Interior: 54 Inches
Maximum Weight Center Hung: 800 Pounds
Opening Degree: 105
Recommended Door Type: Aluminum, Hollow Metal
Replacement Parts: CRL85CB, CRL9040S3
Shipping Limitations: None
Similar: CRL8460, J994HOD
Spindle Included: Yes
Spring Size: 3
UL Listed: Yes
