C.R. Laurence 8544 90 Hold Open Size 4 Spring Heavy Weight Floor Mounted Door Closer combines strength and versatility to meet the demands of high-traffic environments. Designed to support CRL's Door Rail System, this robust door closer is capable of managing doors weighing up to 800 lbs (363 kg), making it an ideal choice for both commercial and industrial applications. Featuring interchangeable spindle heights, the 8544 model allows for seamless installation across different finished floor heights, ensuring a perfect fit for a variety of door types, including aluminum and hollow metal doors. The independent closing and latching speed adjustments provide enhanced control, allowing users to customize the door's performance for optimal functionality. With a hold-open feature at 90 degrees, this door closer maximizes accessibility while preventing the door from swinging too far-an auxiliary floor or overhead stop is recommended to avoid potential damage. The unit is UL listed for safety and comes with a 5-year limited warranty, reflecting CRL's commitment to quality and durability. Whether you're outfitting a new installation or upgrading existing hardware, the C.R. Laurence 8544 is engineered to deliver reliability and ease of use for years to come.
90 Hold Open Size 4 Spring Heavy Weight Floor Mounted Door Closer
Most shipping weights are approximate and have not been verified. If the exact weight is needed in order to determine shipping costs, and shipping costs are required in order for you to complete your order, please request this prior to submitting your order by contacting CRL Customer Service. Product images shown are of the actual product or a close representation. Colors can vary depending on your computer's video card and on how your monitor's color is adjusted.
Auxiliary Stop Recommended: Yes

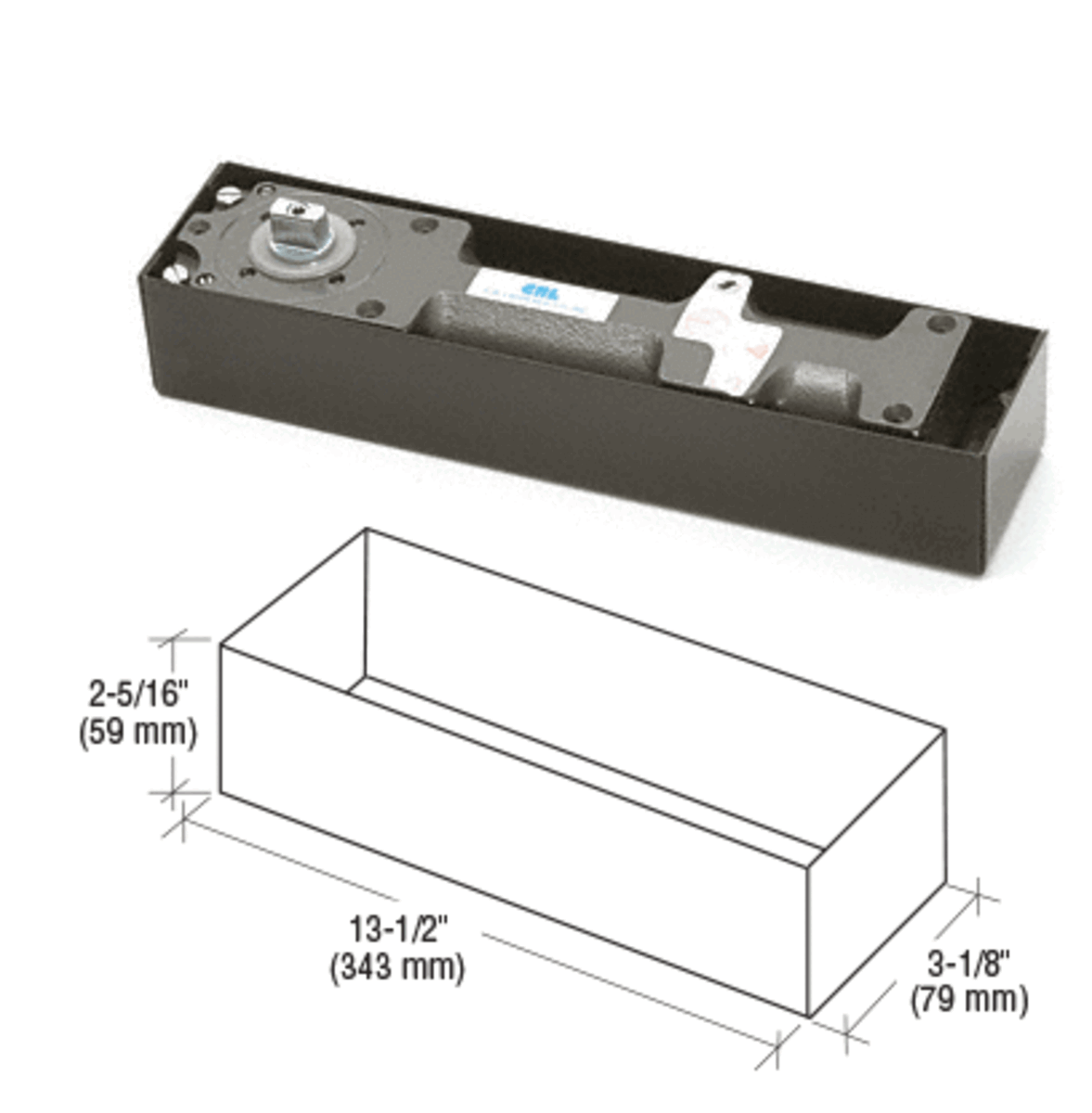

Body Height: 2-5/16
Body Length: 13-1/2
Body Widt: 3-1/8
Body Width: 3-1/8
Closer Body With Box: Yes
Closer Type: Floor Closer
Compliance and Restrictions: Warning Reproductive Harm - www.p65warnings.ca.gov
Door Height: 96
Handing: Double Acting
Hold Open: 90°
Includes: CRL85CB, CRL9040S3
Independent Closing and Latching Valves: Yes
Interchangeable Spindles: Yes
Interior Or Exterior Doors: Yes
Maximum Door Width - Exterior: 48 Inches
Maximum Door Width - Interior: 54 Inches
Maximum Weight Center Hung: 800 Pounds
Opening Degree: 90
Recommended Door Type: Aluminum, Hollow Metal
Replacement Parts: CRL85CB, CRL9040S3
Shipping Limitations: None
Similar: CRL8462, J993HOD
Spindle Included: Yes
Spring Size: 4
UL Listed: Yes
