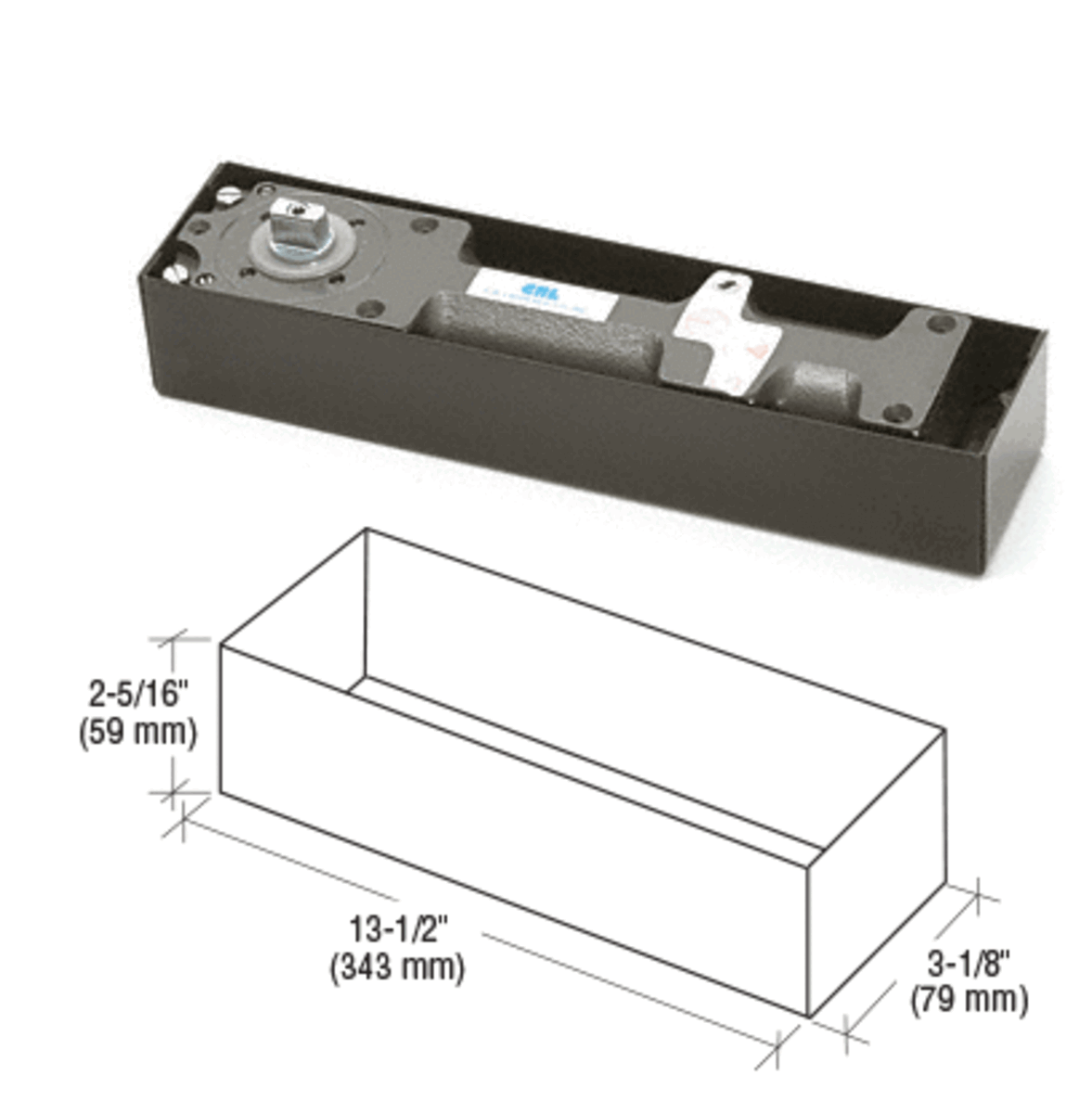

C.R. Laurence 8546 105 Hold Open Size 4 Spring Heavy Weight Floor Mounted Door Closer is engineered to seamlessly support CRL's Door Rail System while providing reliable performance for heavy doors. With a remarkable capacity, this door closer accommodates doors weighing up to 800 lbs (363 kg) and is suitable for both interior and exterior applications. Designed with user convenience in mind, it features interchangeable spindle heights, allowing for easy adjustments to match various finished floor heights. The closer is equipped with independent closing and latching speed adjustments, ensuring controlled and safe door operation. Available in both 90º and 105º Hold Open options, it caters to a variety of installation needs. This floor closer boasts a robust construction, with a body measuring 2-5/16" in height and 13-1/2" in length. The maximum door widths are 48" (1.2 m) for interior doors and 42" (1.07 m) for exterior doors. UL Listed and backed by a 5-year limited warranty, the CRL 8546 is a dependable choice for any building professional. An auxiliary door stop is recommended to prevent damage from over-extension, further enhancing the product's reliability. Choose the C.R. Laurence 8546 for quality and performance in door hardware solutions.
105 Hold Open Size 4 Spring Heavy Weight Floor Mounted Door Closer
Most shipping weights are approximate and have not been verified. If the exact weight is needed in order to determine shipping costs, and shipping costs are required in order for you to complete your order, please request this prior to submitting your order by contacting CRL Customer Service. Product images shown are of the actual product or a close representation. Colors can vary depending on your computer's video card and on how your monitor's color is adjusted.
Auxiliary Stop Recommended: Yes
Body Height: 2-5/16
Body Length: 13-1/2
Body Widt: 3-1/8
Body Width: 3-1/8
Closer Body With Box: Yes
Closer Type: Floor Closer
Compliance and Restrictions: Warning Reproductive Harm - www.p65warnings.ca.gov
Door Height: 96
Handing: Double Acting
Hold Open: 105°
Includes: CRL85CB, CRL9040S3
Independent Closing and Latching Valves: Yes
Interchangeable Spindles: Yes
Interior Or Exterior Doors: Yes
Maximum Door Width - Exterior: 48 Inches
Maximum Door Width - Interior: 54 Inches
Maximum Weight Center Hung: 800 Pounds
Recommended Door Type: Aluminum, Hollow Metal
Replacement Parts: CRL85CB, CRL9040S3
Shipping Limitations: None
Similar: CRL8460, J990NHOD, J994HOD
Spindle Included: Yes
Spring Size: 4
UL Listed: Yes
