C.R. Laurence 8554 90 Hold Open Size 5 Spring Heavy Weight Floor Mounted Door Closer is the ideal solution for high-traffic areas requiring reliable door control. Designed to support CRL's Door Rail System, this heavy-duty closer accommodates doors weighing up to 800 lbs. (363 kg) and is suitable for both interior and exterior applications, with maximum door widths of 54 inches and 48 inches, respectively. This floor-mounted closer features interchangeable spindle heights, allowing for easy adjustments to fit various finished floor heights. Its independent closing and latching speed adjustments provide customizable operation, ensuring doors close securely while maintaining a smooth user experience. The 90° hold open option adds convenience for areas where doors are frequently held ajar. Constructed with durability in mind, the 8554 model is UL Listed and comes with a 5-year limited warranty, highlighting its reliability in commercial settings. Additional accessories, including cover plates and offsets, are available to enhance functionality. For optimal performance, an auxiliary floor or overhead door stop is recommended to prevent potential damage from over-extension. Trust C.R. Laurence to deliver a robust and efficient solution that meets your architectural needs.
90 Hold Open Size 5 Spring Heavy Weight Floor Mounted Door Closer
Most shipping weights are approximate and have not been verified. If the exact weight is needed in order to determine shipping costs, and shipping costs are required in order for you to complete your order, please request this prior to submitting your order by contacting CRL Customer Service. Product images shown are of the actual product or a close representation. Colors can vary depending on your computer's video card and on how your monitor's color is adjusted.
Auxiliary Stop Recommended: Yes

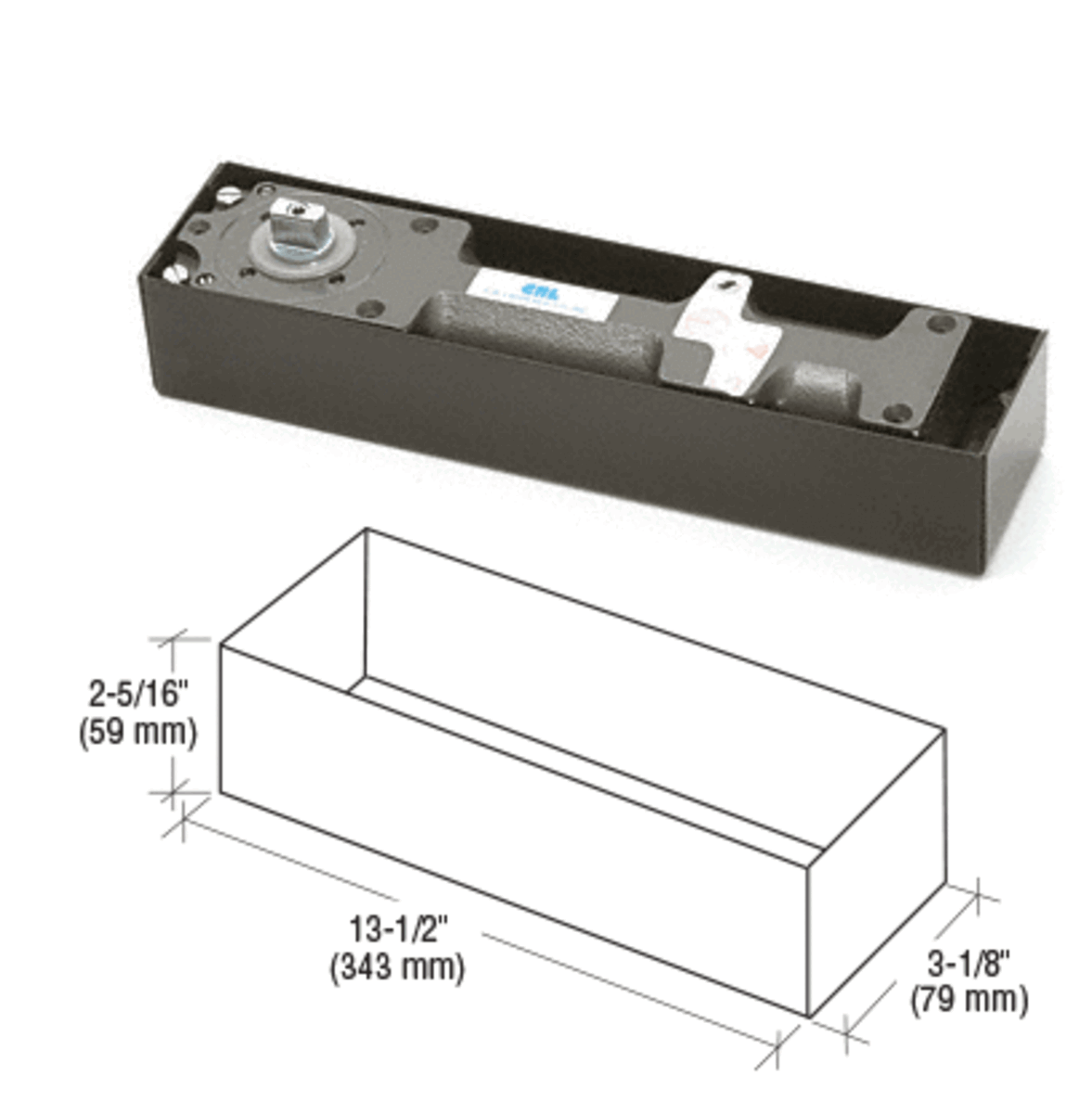

Body Height: 2-5/16
Body Length: 13-1/2
Body Widt: 3-1/8
Body Width: 3-1/8
Closer Body With Box: Yes
Closer Type: Floor Closer
Compliance and Restrictions: Warning Reproductive Harm - www.p65warnings.ca.gov
Door Height: 96
Handing: Double Acting
Hold Open: 90°
Includes: CRL85CB, CRL9040S3
Independent Closing and Latching Valves: Yes
Interchangeable Spindles: Yes
Interior Or Exterior Doors: Yes
Maximum Door Width - Exterior: 48 Inches
Maximum Door Width - Interior: 54 Inches
Maximum Weight Center Hung: 800 Pounds
Opening Degree: 90
Recommended Door Type: Aluminum, Hollow Metal
Replacement Parts: CRL85CB, CRL9040S3
Shipping Limitations: None
Similar: CRL8420, CRL8462, J993HOD
Spindle Included: Yes
Spring Size: 5
UL Listed: Yes
