CRL 8962S 90 No Hold Open Concealed Closer Package for Side-Load A.D.A. Installation

CRL 8962S 90 No Hold Open Concealed Closer Package for Side-Load A.D.A. Installation

C.R. Laurence 8962S 90 No Hold Open Overhead Concealed Closer Package for Side-Load Installation A.D.A. "S" Package is designed to provide seamless door operation while ensuring compliance with accessibility standards. This package is ideal for doors with a 1/2" top rail depth and supports a maximum door weight of 200 lbs., making it suitable for both aluminum and hollow metal doors. Included in this comprehensive kit are a Medium Spring Size Door Closer, mounting clips, and a Type "S" Side-Load Arm, along with an adjustable dual-purpose bottom pivot set. The door closer features independent dual-action valves that allow for precise adjustments of closing and latching speeds, ensuring smooth operation tailored to your specific needs. The 8962S is UL Listed for safety and comes with a 5-year limited warranty, underscoring C.R. Laurence's commitment to quality. While it meets A.D.A. specified opening forces, it's important to note that varying site conditions may affect its performance. An auxiliary floor or overhead door stop is recommended to prevent damage from over-extension. With its durable aluminum construction and user-friendly design, the CRL 8962S is an excellent choice for enhancing both functionality and accessibility in commercial and residential environments.

90 No Hold Open Overhead Concealed Closer Package for Side-Load Installation A.D.A. "S" Package

• For Doors with 1/2" (13 mm) Top Rail Depth
• Adjustable Dual-Purpose Bottom Pivot Set for Floor or Threshold Mounting
• Includes All Necessary Parts
• 5 Year Limited Warranty
• UL Listed

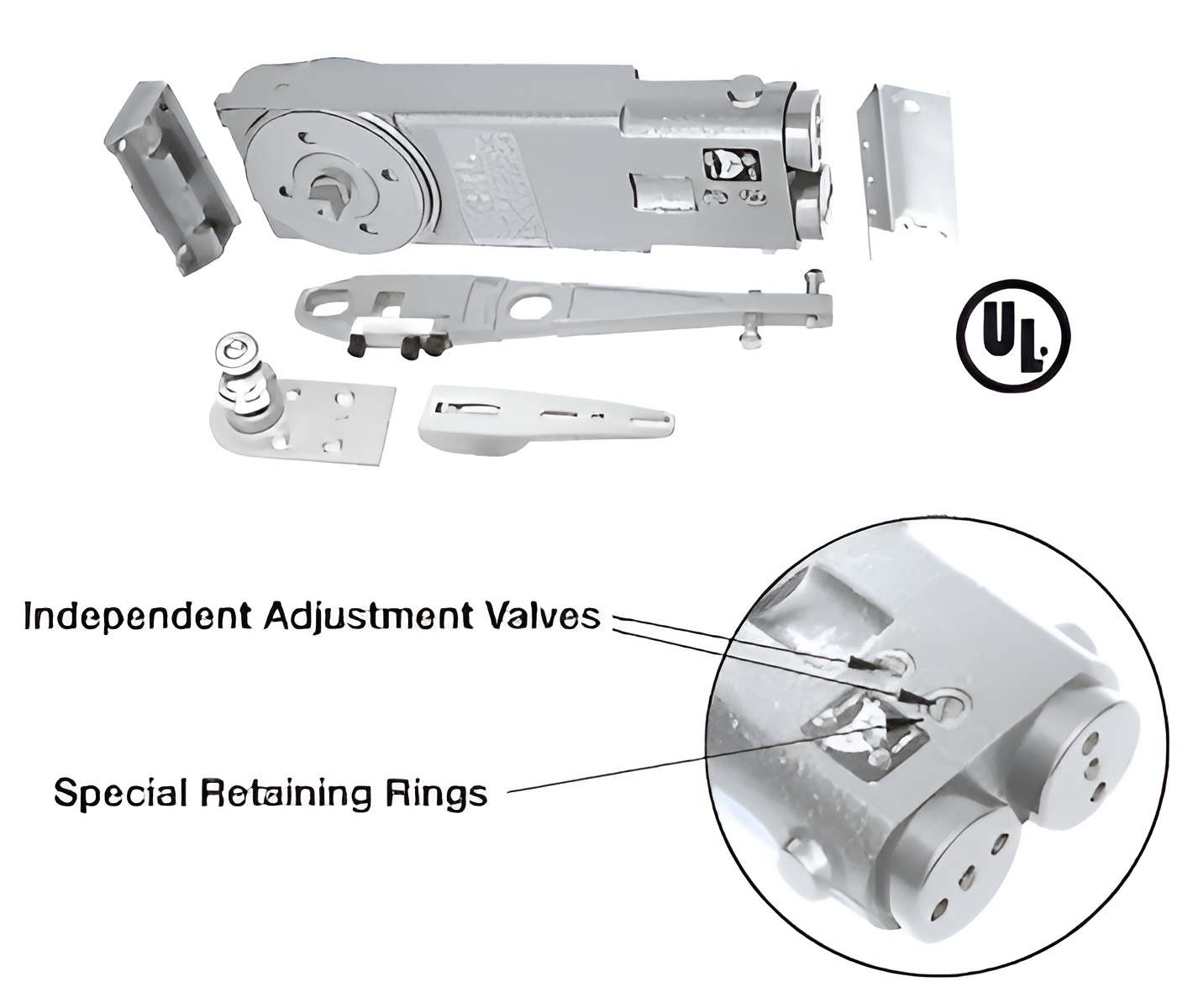

These CRL Overhead Door Closer Kits consist of a Medium Spring Size Door Closer, Mounting Clips, Type "S" Side-Load Arm, and a "DP" Adjustable Dual-Purpose Bottom Pivot Set or "GE" Bottom Pivot Set. The Door Closer has independent, dual-action valves to control closing and latching speeds. Both 90º and 105º Hold Open and No Hold Open models are available. Door Closer Bodies fit into standard 1-3/4" x 4" (44 x 102 mm), or larger, extrusions. Door Closers with different spring sizes or hardware options and Door Closer Bodies with Mounting Clips and Overhead Concealed Door Closer Accessories are available.

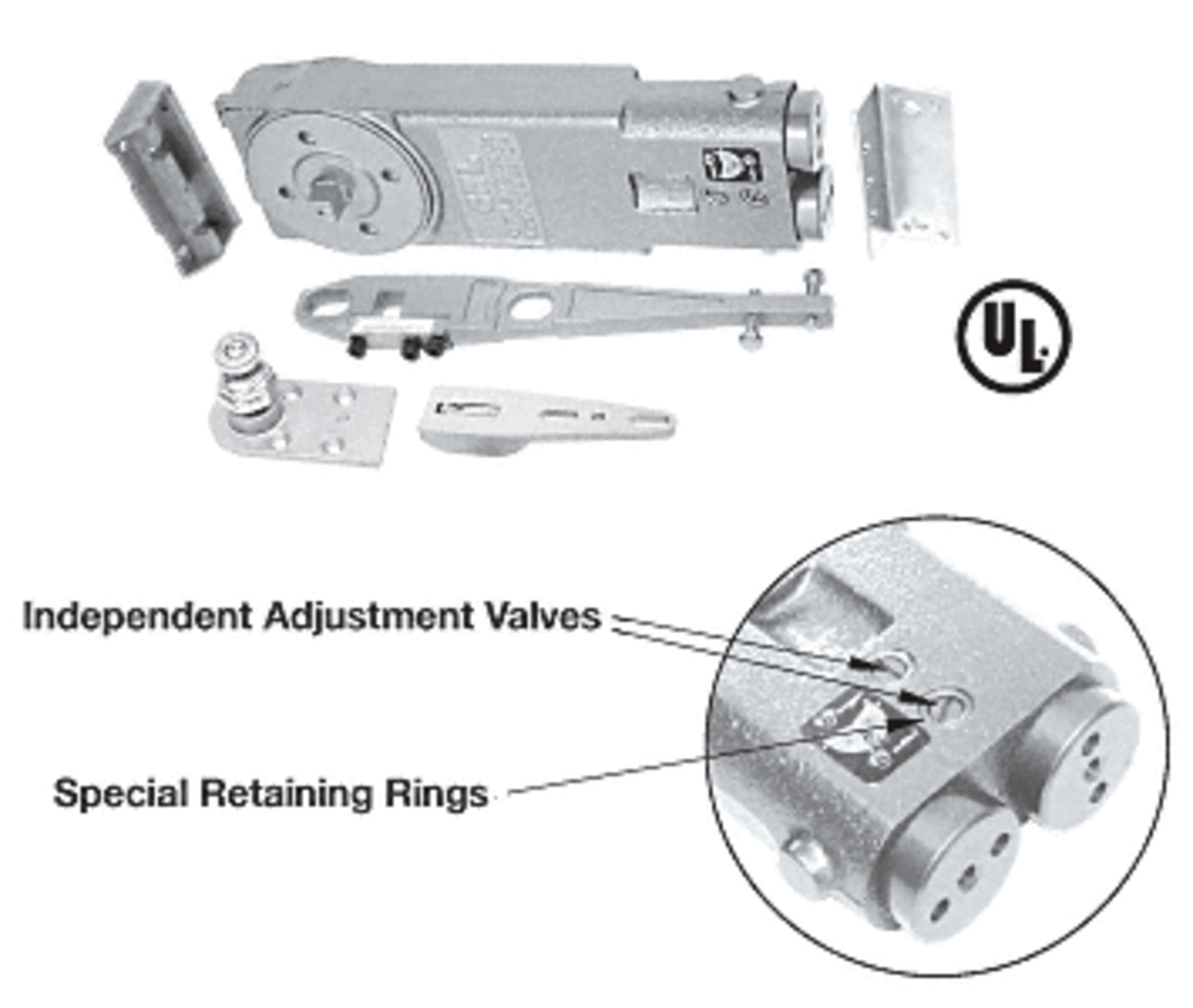

Independent Adjustment Valves
Non-Critical valve control adjusts both Closing Speed and Latching Speed independent of each other.

Special Retaining Rings
Prevent the Adjustment Valve Screws from being backed all the way out of the Door Closer Body.

NOTE: An auxiliary floor or overhead door stop is recommended to prevent possible damage to both the door closer and entry way due to over-extension of maximum allowable door swing.

NOTE: Although A.D.A. Series Door Closers comply with A.D.A. specified opening forces, they might not provide adequate spring power to control and close the door due to varying site conditions and door size.


Product Warning:

Closers set to comply with A.D.A. specified opening forces might not provide adequate spring power to control and close the door due to varying site conditions and door size. This Closer is not to be used for doors weighing in excess of 200 Lbs. (91 Kg) or wider than 36" (914 mm).
