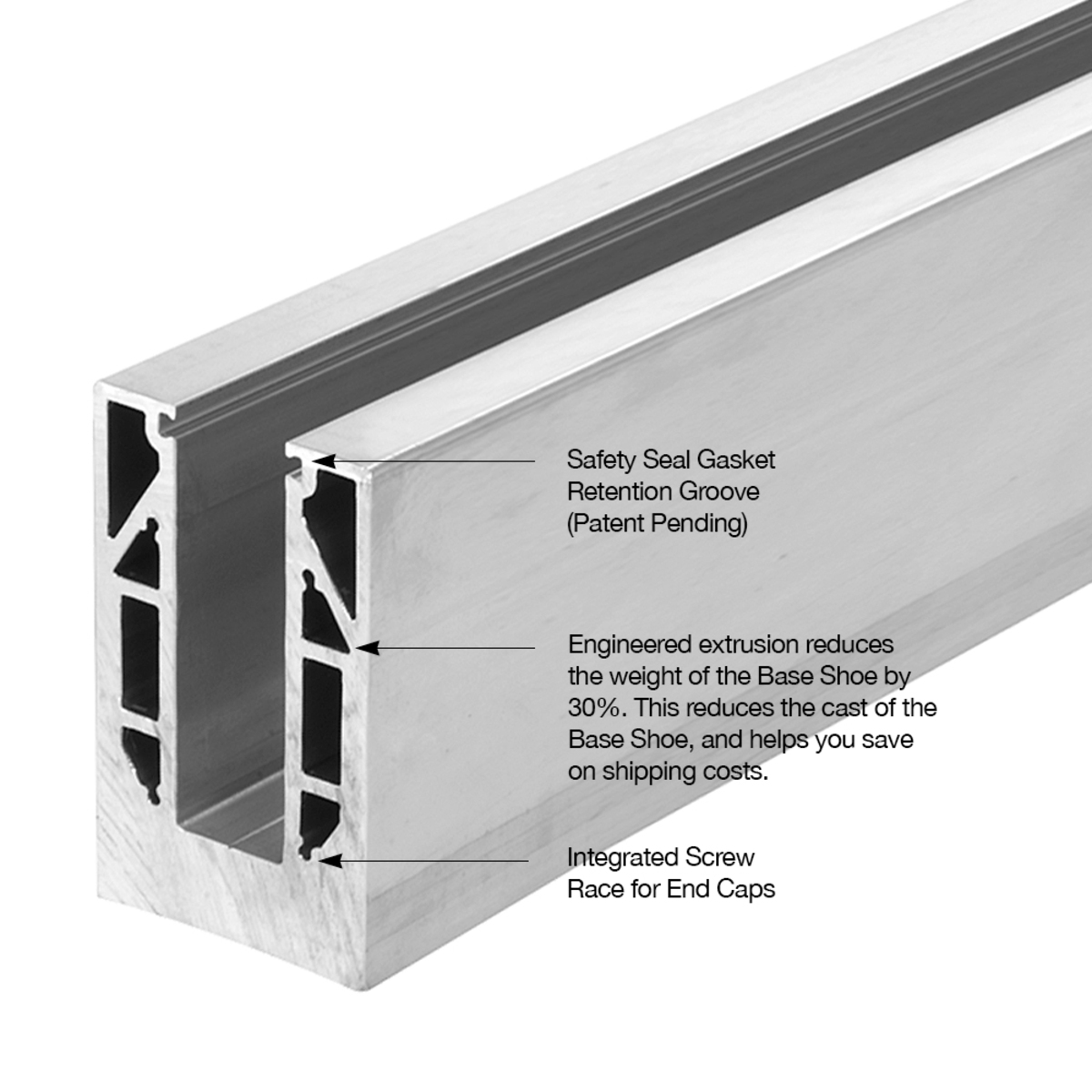

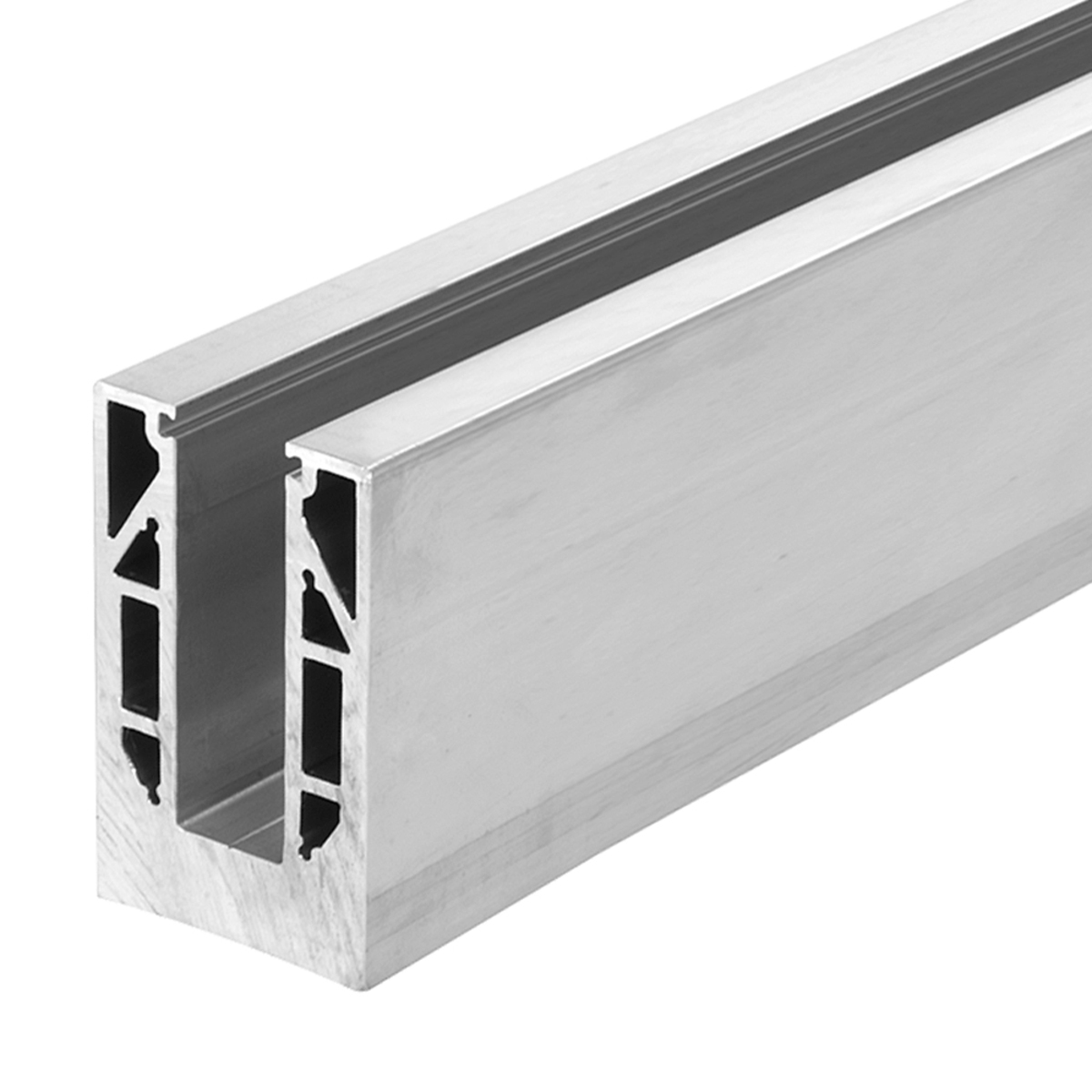

CRL 8B10D6 8B Series Mill Aluminum 120" Square Base Shoe Drilled for 1/2" Glass is a versatile and lightweight solution designed to enhance your glazing projects. Weighing in at 30% less than the traditional B5S Series, this base shoe not only offers significant shipping cost savings but also contributes to environmentally friendly building practices. This aluminum base shoe is specifically drilled and counter bored with a 6" (152 mm) center-to-center spacing, accommodating 1/2" (12 mm) monolithic tempered glass. For custom requirements, CRL can modify the drilling to meet your specifications. Available in lengths of 10' and 20', both drilled and undrilled options provide flexibility for various applications. Designed to work seamlessly with CRL's patented TAPER-LOC® System, the 8B Series can be easily cut to the desired length using a chop saw equipped with a minimum 10" (254 mm) saw blade. With a height of 4-1/8" (105 mm) and a width of 2-1/2" (64 mm), this base shoe is built for durability and performance. Please note that CRL advises against direct powder coating of the base shoe extrusion, recommending instead a powder-coated cladding for optimal results.
8B Series Mill Aluminum 120" Square Base Shoe Drilled for 1/2" Glass
Most shipping weights are approximate and have not been verified. If the exact weight is needed in order to determine shipping costs, and shipping costs are required in order for you to complete your order, please request this prior to submitting your order by contacting CRL Customer Service. Product images shown are of the actual product or a close representation. Colors can vary depending on your computer's video card and on how your monitor's color is adjusted.
Ship via: No UPS - Common Carrier Only
Compliance and Restrictions: Warning Reproductive Harm - www.p65warnings.ca.gov
Drilling Center To Center: 6 in. (152 mm)
Finish/ Color:: Mill
Glazing Thickness: 1/2 in. (13 mm)
Glazing Type: Monolithic

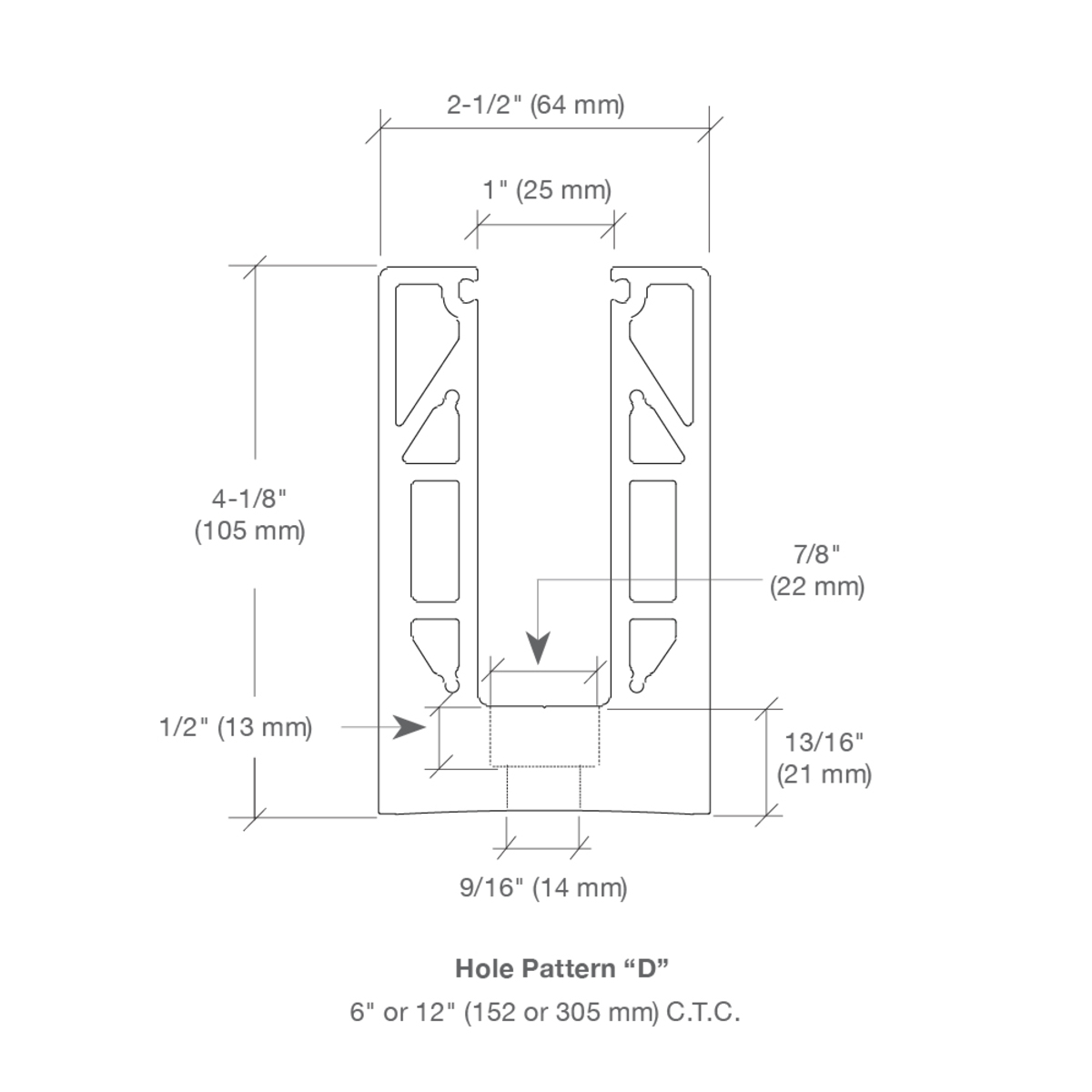

Height: 4-1/8 in. (105 mm)
Length: 120 in. (3048 mm)
Material: Aluminum
Profile: Drilled
Shipping Limitations: No UPS - Common Carrier Only
Width: 2-1/2 in. (64 mm)
