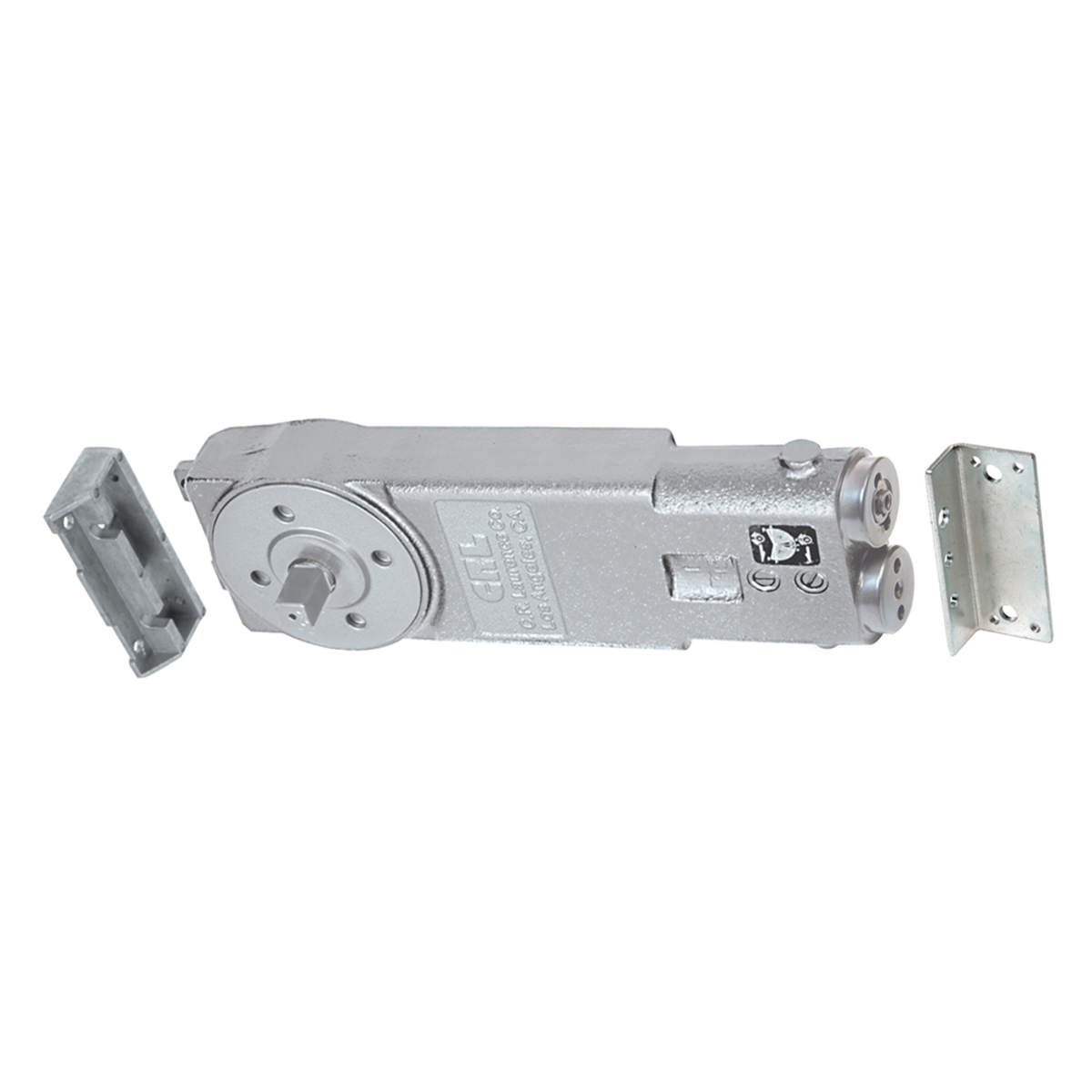

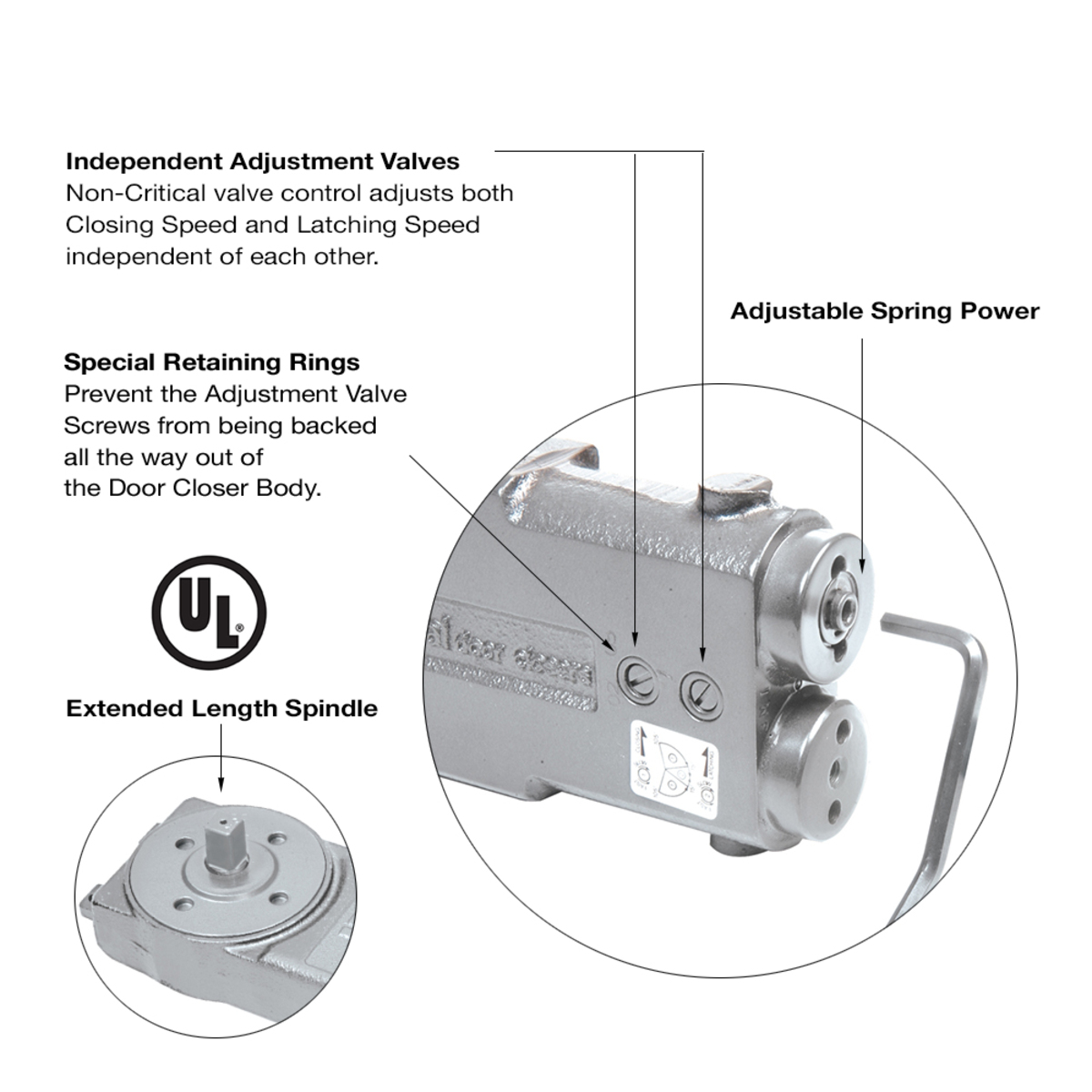

C.R. Laurence 9772 Adjustable Spring Power 105 Degree No Hold Open 3/4" Long Spindle Overhead Concealed Door Closer Body Only offers a robust solution for architects and builders seeking reliable door control. This door closer is designed to be interchangeable with all Jackson® style overhead concealed door closers, making it a versatile choice for various applications. With an extended 3/4" (19 mm) long spindle, the 9772 model is perfect for use with patch fittings and door rail hardware, ensuring a seamless installation process. Its independent, dual-action valves allow for precise control over both closing and latching speeds, enhancing overall functionality. This model is UL listed and complies with Federal A.D.A. opening force requirements, providing accessibility without compromising on performance. Constructed to accommodate doors weighing up to 200 lbs (91 kg) and a maximum width of 48" for interior applications, it fits standard 1-3/4" x 4" (44 x 102 mm) extrusions. Each closer body is conveniently packaged with templates and instructions, allowing for easy installation. Backed by a 5-year limited warranty, the C.R. Laurence 9772 is a reliable choice for professional-grade door solutions that prioritize both style and safety.
Adjustable Spring Power 105 Degree No Hold Open 3/4" Long Spindle Overhead Concealed Door Closer Body Only
Most shipping weights are approximate and have not been verified. If the exact weight is needed in order to determine shipping costs, and shipping costs are required in order for you to complete your order, please request this prior to submitting your order by contacting CRL Customer Service. Product images shown are of the actual product or a close representation. Colors can vary depending on your computer's video card and on how your monitor's color is adjusted.
Americans with Disabilities Act: Yes
Body Height: 1-11/16
Body Length: 11-5/8
Body Widt: 3-11/16
Body Width: 3-11/16
Case Quantity: 6
Closer Type: Overhead Concealed
Compliance and Restrictions: Warning Reproductive Harm - www.p65warnings.ca.gov
Door Height: 96
Handing: Double Acting
Includes: CRL8010FS
Maximum Door Weight: 200
No Hold Open: 105°
Recommended Door Type: Aluminum, Hollow Metal
Shipping Limitations: None
Spindle: 3/4
UL Listed: Yes
