CRL AMR205BS Brushed Stainless AMR Series Patch LockC.R. Laurence AMR205BS Brushed Stainless AMR Series Patch Lock offers a robust locking solution designed for glass doors. Crafted from high-density cast body material, this lock features a secure locking mechanism that can be mounted on the top or bottom of doors, or even on the vertical edge, providing versatile installation options. Compatible with 3/8" or 1/2" (10 or 12 mm) glass, the AMR205BS comes with gaskets to ensure a tight fit and seamless integration. It is available in five architectural finishes, allowing for customization to match your design aesthetic. For added security, optional cylinders, including double keyed or single keyed with thumbturn, must be ordered separately. Installation is straightforward, as the product includes a template and instructions. It requires specific glass fabrication: a 3/4" (19 mm) diameter hole and a corner notch for top or bottom mounts, or a U-Cutout for side mounting. For double-door applications, a bottom patch lock is necessary on the inactive leaf. While the brushed stainless steel finish is resistant to corrosion, periodic maintenance is recommended to preserve its appearance. The AMR205BS not only enhances security but also complements the architectural style of any project.

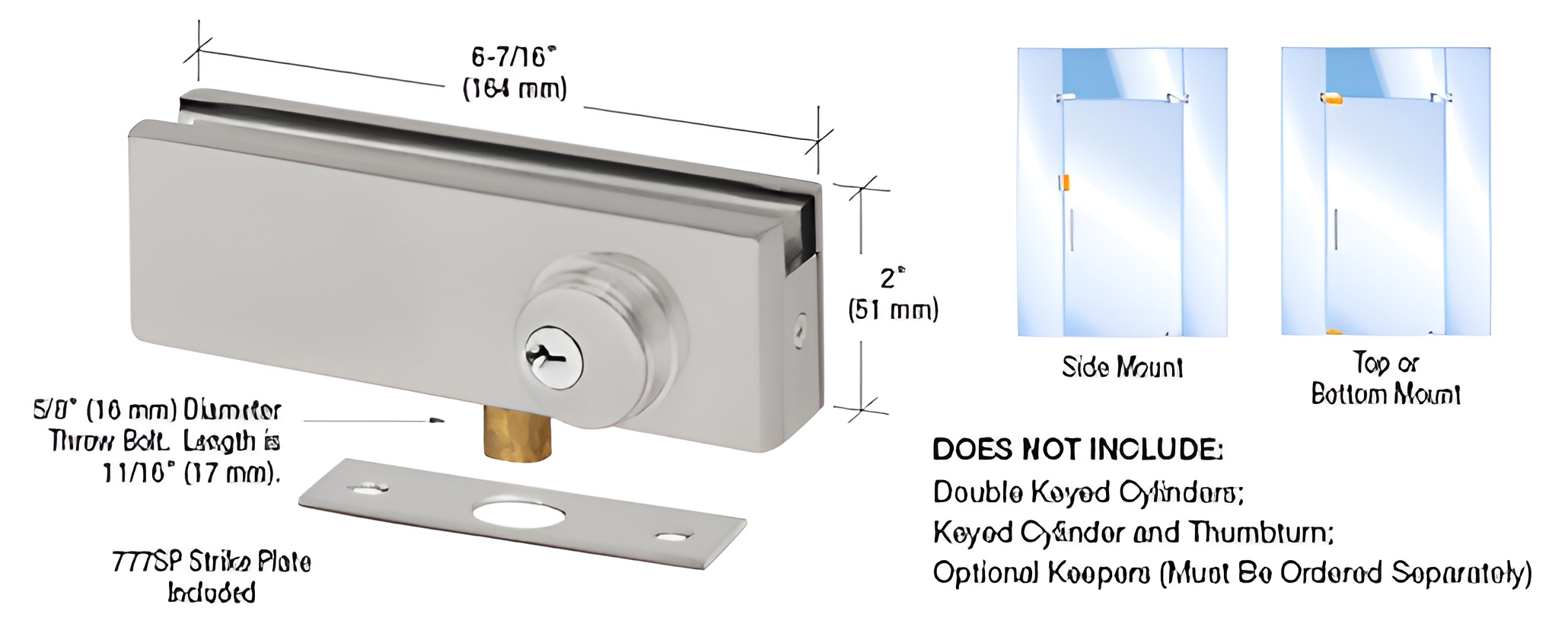

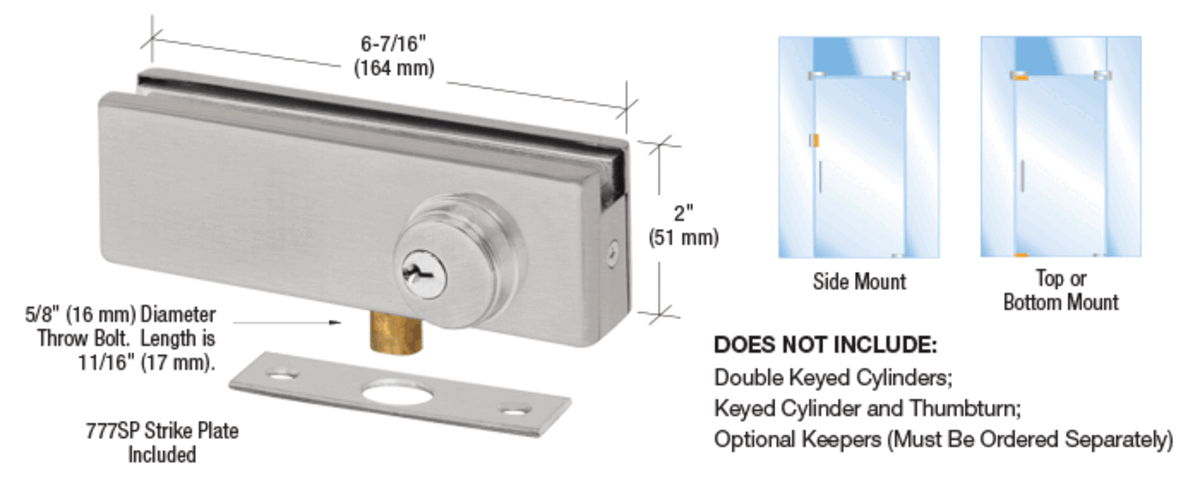

Brushed Stainless AMR Series Patch Lock
- High Density Cast Body with Lock Mechanism
- Gaskets for use with 3/8" or 1/2" (10 or 12 mm) Glass
- Five Architectural Finishes
The
CRL American Style Patch Lock can be mounted on the top or bottom of doors. It can also be used on the vertical edge of the door, and secured to a jamb with the Keeper that is supplied with the unit. The Patch Lock can also be secured to a glass panel or door using the
AMR206 Sidelite Mount Keeper. A variety of optional keepers, such as
AMR207 and
AMR208 are available to accommodate most types of installations.
NOTE: Cylinders not included. Must be ordered separately.
Optional Cylinders include either
AMR205CC Double Keyed Cylinders or
AMR205CT Single Keyed Cylinder with Thumbturn.
GLASS FABRICATION REQUIRED:
Top or Bottom Mount:
One 3/4" (19 mm) Diameter Hole and One Corner Notch
Side Mount:
One 3/4" (19 mm) Diameter Hole and One U-Cutout (Hole on Top)
COMES WITH:
Template and Instructions
DOES NOT INCLUDE:
Double Keyed Cylinders;
Keyed Cylinder/Thumbturn;
Optional Keepers (Must Be Ordered Separately)
DOUBLE DOOR APPLICATION:
For double door installations a Bottom Patch Lock is required on the inactive leaf to properly secure the pair of doors.
Product Warning:
Cylinders are optional and not included with lock body.
Most shipping weights are approximate and have not been verified. If the exact weight is needed in order to determine shipping costs, and shipping costs are required in order for you to complete your order, please request this prior to submitting your order by contacting CRL Customer Service. Product images shown are of the actual product or a close representation. Colors can vary depending on your computer's video card and on how your monitor's color is adjusted.
Stainless Steel Advisory:
Although Stainless Steel is resistant to corrosion, it is not rust or stain proof. CRL recommends periodic maintenance to help maintain its factory finish. For more information, view the Stainless Steel Disclaimer found in the Technical References section below.
Attributes
Compliance and Restrictions: Warning Reproductive Harm - www.p65warnings.ca.gov
Finish/ Color:: Brushed Stainless Steel
Glazing Thickness: 3/8 in. (10 mm)
Height: 2 in. (51 mm)
Shipping Limitations: None
Width: 6-7/16 in. (164 mm)
