CRL BTS802 Dormakaba BTS80 Size 2 Floor-Mounted Door Closer Body in Cement CaseCRL BTS802 Dormakaba Model BTS80 Size 2 (EN4) Floor Mounted Door Closer Body in Cement Case is engineered for versatility and reliability in high-traffic environments. Capable of supporting doors up to 660 lbs (299 kg) and widths of 54" (1.37 m), this door closer is designed to accommodate both interior and exterior applications seamlessly. The innovative, non-handed design features interchangeable spindle heights, allowing for tailored installations across various door configurations, including single or double acting, center-hung, and offset doors. Its selective multi-point hold open position and variable delayed action functionality enhance user convenience and adaptability. Constructed with a compact body that fits into tighter spaces where traditional closers may not, the BTS80 is UL Listed and comes with a 25-year limited warranty, ensuring long-term peace of mind. For added versatility, accessories such as cover plates and pivots are available to complement its installation. Please note that this door closer is designed to open to a maximum of 180 degrees, requiring an auxiliary stop for any lesser angle. Ideal for aluminum and hollow metal doors, the C.R. Laurence BTS80 Series is the smart choice for professional-grade door control.
Dormakaba Model BTS80 Size 2 (EN4) Floor Mounted Door Closer Body in Cement Case
- 660 Lb. (299 kg) Capacity, 54" (1.37 m) Doors
- Interchangeable Spindle Heights
- Selective Multi-Point Hold Open Position
- Variable Delayed Action
- 25 Year Limited Warranty
- UL Listed
The
Dormakaba® BTS80 Series Floor Mounted Door Closers offer adaptability to almost any installation. The Dormakaba® Closer's compact body permits its use where a larger door closer would be prohibitive. The universal, non-handed design uses a system of interchangeable spindles, and will allow one basic door closer mechanism to be used for either single or double acting, center-hung or offset applications while accommodating virtually any floor covering or threshold height. The selective, multi-point hold open or variable delayed action feature makes this one of the most versatile door closers available. Accessories such as Cover Plates, Pivots, Center-Hung and Offset Arms are also available.
NOTE: This Door Closer is designed to open to a maximum of 180 degrees. An auxiliary floor or overhead stop is required to stop the door at less than 180 degrees.
SPECIFICATIONS:
Maximum Door Weight: 660 Lbs. (299 kg)
Maximum Interior Door Width: 48" (1.22 m)
Maximum Exterior Door Width: 42" (1.07 m)
Product Warning:
Closer Body Only. Spindle is not included. Spindles are available to accommodate different heights and types: CRL9040S, or CRL9050S.
Most shipping weights are approximate and have not been verified. If the exact weight is needed in order to determine shipping costs, and shipping costs are required in order for you to complete your order, please request this prior to submitting your order by contacting CRL Customer Service. Product images shown are of the actual product or a close representation. Colors can vary depending on your computer's video card and on how your monitor's color is adjusted.
Attributes

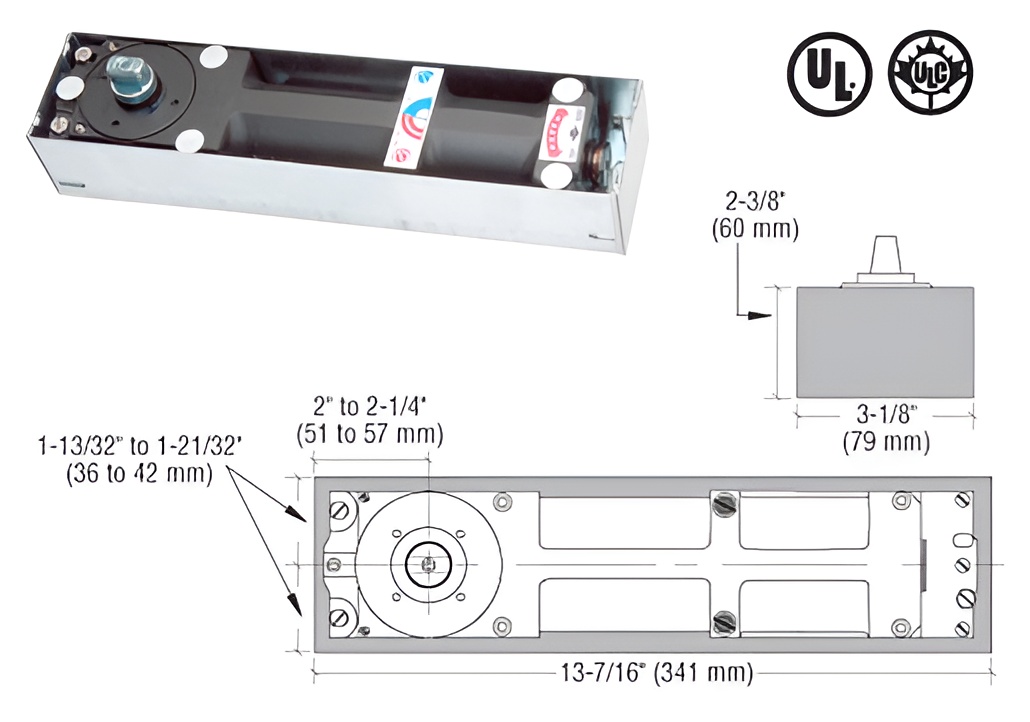

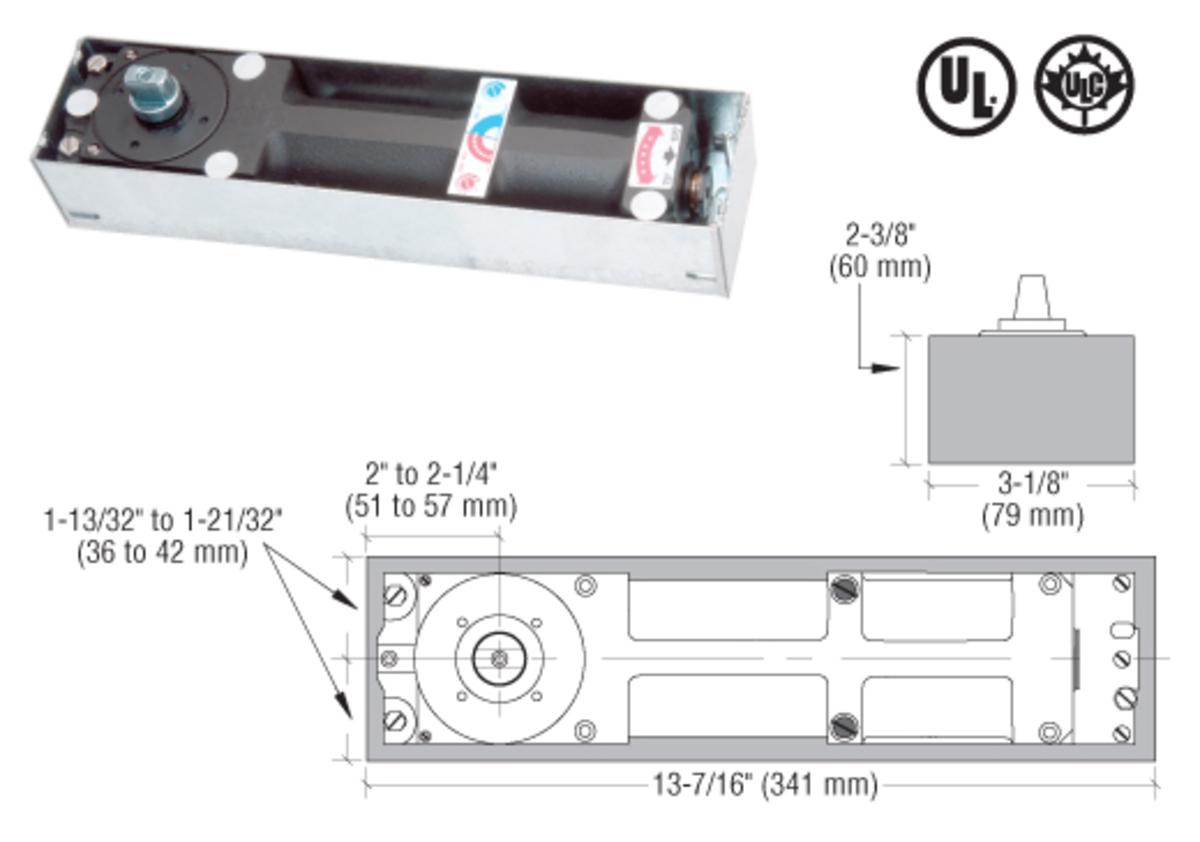

Body Height: 2-3/8
Body Length: 13-7/16
Body Widt: 3-1/8
Body Width: 3-1/8
Brand: Dormakaba
Closer Body With Box: Yes
Closer Type: Floor Closer
Compliance and Restrictions: Warning Reproductive Harm - www.p65warnings.ca.gov
Door Opening: 180
Handing: Double Acting
Independent Closing and Latching Valves: Yes
Interchangeable Spindles: Yes
Interior Or Exterior Doors: Yes
Maximum Door Width - Exterior: 42 Inches
Maximum Door Width - Interior: 48 Inches
Maximum Weight Center Hung: 660 Pounds
Non Stocked Parts and Acessories Special Order: Yes
Recommended Door Type: Aluminum, Hollow Metal
Selective Hold Open: Yes
Selective Multi- Point Hold Open Positions: Yes
Series: BTS80
Shipping Limitations: None
Similar: J990NHOD, J993HOD, J994HOD, J995BCD,
Spring Size: 2
UL Listed: Yes
