CRL BTS803 Dormakaba BTS80 Size 3 Floor-Mounted Door Closer Body in Cement CaseC.R. Laurence BTS803 Dormakaba Model BTS80 Size 3 (EN6) Floor Mounted Door Closer Body in Cement Case is engineered for versatility and performance in a range of architectural settings. With a robust capacity of 660 lbs. (299 kg), this door closer accommodates doors up to 54 inches (1.37 m) wide, making it ideal for both interior and exterior applications. Its compact design allows for installation in tight spaces where traditional door closers may not fit. This model features interchangeable spindle heights, allowing for easy customization to meet specific project needs. The selective multi-point hold open position and variable delayed action provide additional adaptability, ensuring smooth operation regardless of door traffic. The independent closing and latching valves enhance functionality, offering precise control over door movements. The BTS80 is UL Listed and comes with a 25-year limited warranty, underscoring its reliability and quality. Designed for double acting doors, it can be used in various configurations, including center-hung or offset installations. Accessories such as cover plates and pivots are available for further customization. Please note that this closer body requires an auxiliary floor or overhead stop for door openings of less than 180 degrees. Experience the blend of durability and versatility with C.R. Laurence's BTS803 Door Closer.
Dormakaba Model BTS80 Size 3 (EN6) Floor Mounted Door Closer Body in Cement Case
- 660 Lb. (299 kg) Capacity, 54" (1.37 m) Doors
- Interchangeable Spindle Heights
- Selective Multi-Point Hold Open Position
- Variable Delayed Action
- 25 Year Limited Warranty
- UL Listed
The
Dormakaba® BTS80 Series Floor Mounted Door Closers offer adaptability to almost any installation. The Dormakaba® Closer's compact body permits its use where a larger door closer would be prohibitive. The universal, non-handed design uses a system of interchangeable spindles, and will allow one basic door closer mechanism to be used for either single or double acting, center-hung or offset applications while accommodating virtually any floor covering or threshold height. The selective, multi-point hold open or variable delayed action feature makes this one of the most versatile door closers available. Accessories such as Cover Plates, Pivots, Center-Hung and Offset Arms are also available.
NOTE: This Door Closer is designed to open to a maximum of 180 degrees. An auxiliary floor or overhead stop is required to stop the door at less than 180 degrees.
SPECIFICATIONS:
Maximum Door Weight: 660 Lbs. (299 kg)
Maximum Interior Door Width: 54" (1.37 m)
Maximum Exterior Door Width: 48" (1.2 m)
Product Warning:
Closer Body Only. Spindle is not included. Spindles are available to accommodate different heights and types: CRL9040S, or CRL9050S.
Most shipping weights are approximate and have not been verified. If the exact weight is needed in order to determine shipping costs, and shipping costs are required in order for you to complete your order, please request this prior to submitting your order by contacting CRL Customer Service. Product images shown are of the actual product or a close representation. Colors can vary depending on your computer's video card and on how your monitor's color is adjusted.
Attributes

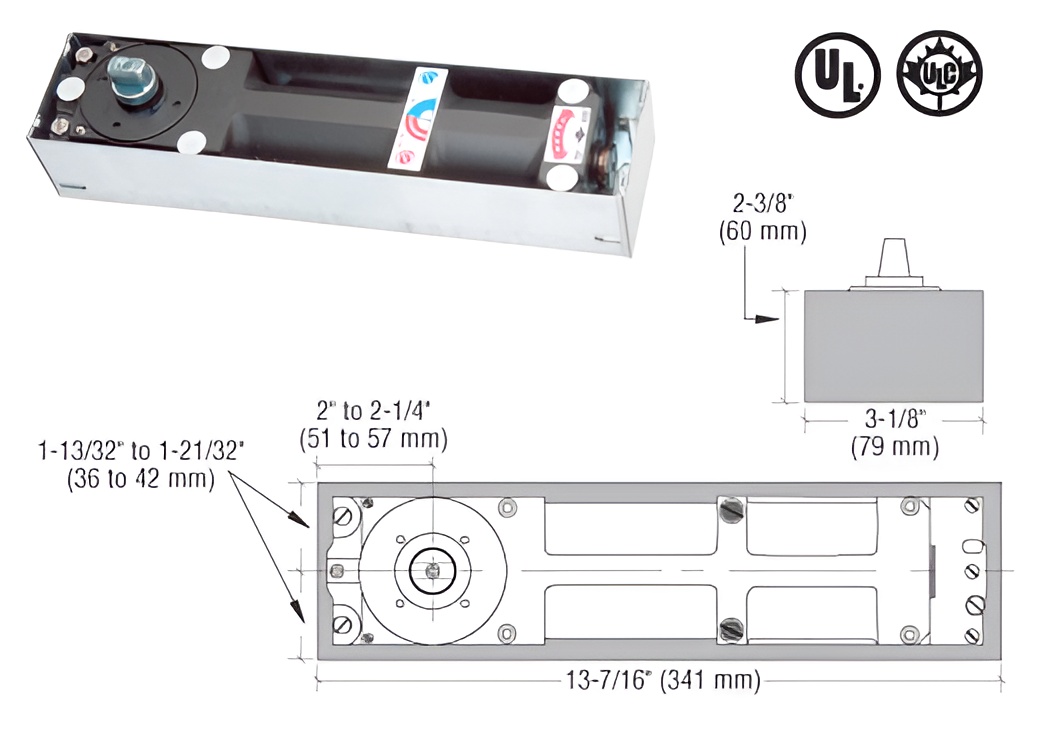

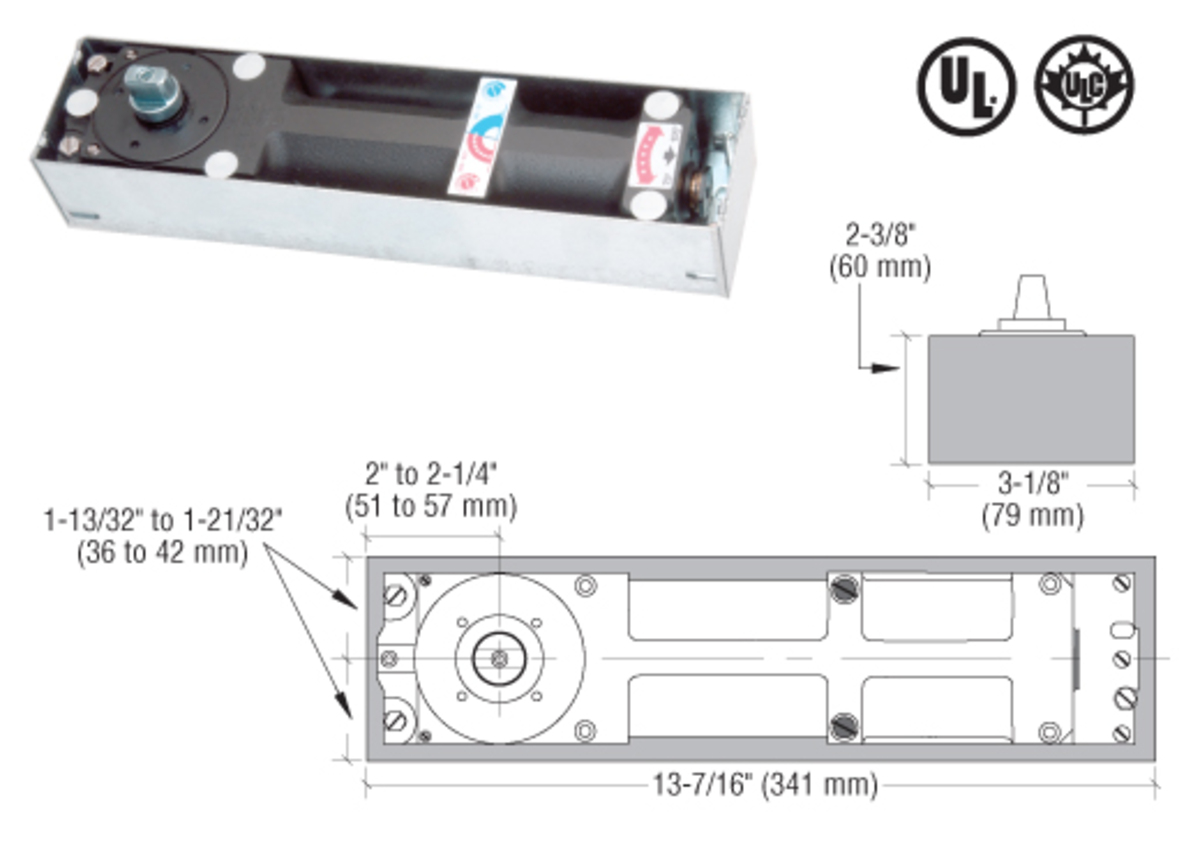

Body Height: 2-3/8
Body Length: 13-7/16
Body Widt: 3-1/8
Body Width: 3-1/8
Brand: Dormakaba
Closer Body With Box: Yes
Closer Type: Floor Closer
Compliance and Restrictions: Warning Reproductive Harm - www.p65warnings.ca.gov
Door Opening: 180
Handing: Double Acting
Independent Closing and Latching Valves: Yes
Interchangeable Spindles: Yes
Interior Or Exterior Doors: Yes
Maximum Door Width - Exterior: 48 Inches
Maximum Door Width - Interior: 54 Inches
Maximum Weight Center Hung: 660 Pounds
Non Stocked Parts and Acessories Special Order: Yes
Recommended Door Type: Aluminum, Hollow Metal
Selective Hold Open: Yes
Selective Multi- Point Hold Open Positions: Yes
Series: BTS80
Shipping Limitations: None
Similar: J990NHOD, J993HOD, J994HOD, J995BCD,
Spring Size: 3
UL Listed: Yes
