CRL BTS80BF Dormakaba BTS80 8.5 lb Floor-Mounted Door Closer Body, Cement CaseC.R. Laurence Dormakaba Model BTS80 8.5 Lb. Floor Mounted Door Closer Body in Cement Case is engineered for versatility and durability in various applications. With a robust capacity of up to 660 lbs. (299 kg), this closer accommodates doors measuring up to 54" (1.37 m) wide, making it suitable for both interior and exterior settings. Its compact design allows for installation in spaces where traditional door closers may be too large, while the universal, non-handed configuration ensures compatibility with single or double acting doors, whether center-hung or offset. The BTS80 features interchangeable spindle heights, offering customization based on your project’s specific requirements. It also boasts a selective multi-point hold open position and variable delayed action, providing enhanced control over door movement. Designed with compliance in mind, this door closer is UL Listed and comes with a 25-year limited warranty, assuring long-term reliability. For optimal functionality, it’s important to note that this closer is designed to open a maximum of 180 degrees, requiring auxiliary floor or overhead stops for angles below that. Ideal for aluminum and hollow metal doors, the Dormakaba BTS80 is a top choice for professionals seeking a dependable and adaptable door closer solution.
Dormakaba Model BTS80 8.5 Lb. Floor Mounted Door Closer Body in Cement Case
- 660 Lb. (299 kg) Capacity, 54" (1.37 m) Doors
- Interchangeable Spindle Heights
- Selective Multi-Point Hold Open Position
- Variable Delayed Action
- 25 Year Limited Warranty
- UL Listed
The
Dormakaba® BTS80 Series Floor Mounted Door Closers offer adaptability to almost any installation. The Dormakaba® Closer's compact body permits its use where a larger door closer would be prohibitive. The universal, non-handed design uses a system of interchangeable spindles, and will allow one basic door closer mechanism to be used for either single or double acting, center-hung or offset applications while accommodating virtually any floor covering or threshold height. The selective, multi-point hold open or variable delayed action feature makes this one of the most versatile door closers available. Accessories such as Cover Plates, Pivots, Center-Hung and Offset Arms are also available.
NOTE: This Door Closer is designed to open to a maximum of 180 degrees. An auxiliary floor or overhead stop is required to stop the door at less than 180 degrees.
SPECIFICATIONS:
Maximum Door Weight: 660 Lbs. (299 kg)
Maximum Interior Door Width: 54" (1.37 m)
Maximum Exterior Door Width: 48" (1.22 m)
Product Warning:
Closers set to comply with A.D.A. specified opening forces might not provide adequate spring power to control and close the door due to varying site conditions and door size. Closer Body Only. Spindle is not included. Spindles are available to accommodate different heights and types:
CRL9040S, or
CRL9050S.
Most shipping weights are approximate and have not been verified. If the exact weight is needed in order to determine shipping costs, and shipping costs are required in order for you to complete your order, please request this prior to submitting your order by contacting CRL Customer Service. Product images shown are of the actual product or a close representation. Colors can vary depending on your computer's video card and on how your monitor's color is adjusted.
Attributes
Americans with Disabilities Act: Yes

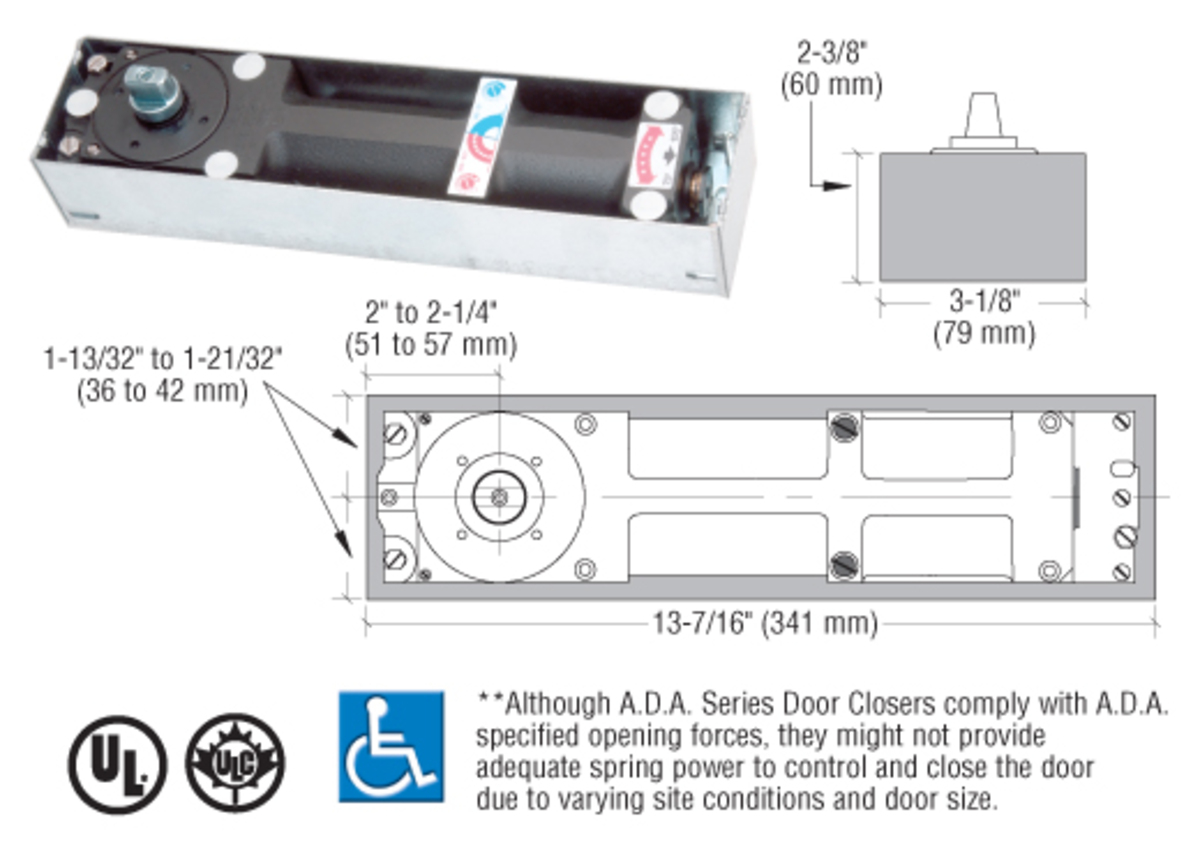

Body Height: 2-3/8
Body Length: 13-7/16
Body Widt: 3-1/8
Body Width: 3-1/8
Brand: Dormakaba
Closer Body With Box: Yes
Closer Type: Floor Closer
Compliance and Restrictions: Warning Reproductive Harm - www.p65warnings.ca.gov
Door Opening: 180
Handing: Double Acting
Independent Closing and Latching Valves: Yes
Interchangeable Spindles: Yes
Interior Or Exterior Doors: Yes
Maximum Door Width - Exterior: 36 Inches
Maximum Door Width - Interior: 36 Inches
Maximum Weight Center Hung: 660
Non Stocked Parts and Acessories Special Order: Yes
Recommended Door Type: Aluminum, Hollow Metal
Selective Hold Open: Yes
Selective Multi- Point Hold Open Positions: Yes
Series: BTS80
Shipping Limitations: None
Similar: J990NHOD, J993HOD, J994HOD, J995BCD,
Spring Size: 8-1/2
UL Listed: Yes
