CRL CM12X12BS Brushed Stainless 12" Glass-Mounted Pull HandleC.R. Laurence CM12X12BS Brushed Stainless 12" Glass Mounted Standard Pull Handle combines functionality and style for glass installations. Designed for use with 3/8" to 3/4" (10 to 19 mm) tempered glass, this handle features a robust 1" (25 mm) diameter stainless steel construction, ensuring durability and a sleek finish. The handle projects 3" (76 mm) from the glass surface, providing ample grip while maintaining an elegant profile. Available in five architectural finishes, the CM12X12BS allows for seamless integration into various design schemes. Each unit comes complete with matching finish metal washers and through-bolts, streamlining installation with two required 5/8" (16 mm) diameter holes in the glass. The back-to-back mounting style enhances stability and aesthetic appeal. For optimal performance, periodic maintenance is recommended to preserve the brushed stainless steel finish, as it is resistant to corrosion but not entirely rust-proof. This handle is perfect for both professional applications and discerning homeowners looking to elevate their space with high-quality hardware. With the C.R. Laurence CM12X12BS, you achieve a blend of practicality and sophisticated design in any glass entryway or partition.
Brushed Stainless 12" Glass Mounted Standard Pull Handle
- Stocked in Up to Five Architectural Finishes
- For Use with 3/8" to 3/4" (10 to 19 mm) Glass
- Complete with Matching Finish Metal Washers and Through-Bolts for Mounting
- Use Monolithic Tempered Glass
This
CRL Glass Mounted Standard Pull Handle is available in three sizes and in many different architectural finishes.
SPECIFICATIONS:
For Use With: 3/8" to 3/4" (10 to 19 mm) Glass
Construction:
1" (25 mm) Diameter Stainless Steel or Brass
Tubing. *1-1/4" (32 mm) Diameter Stainless
Steel (CD24X24BS125 Model only).

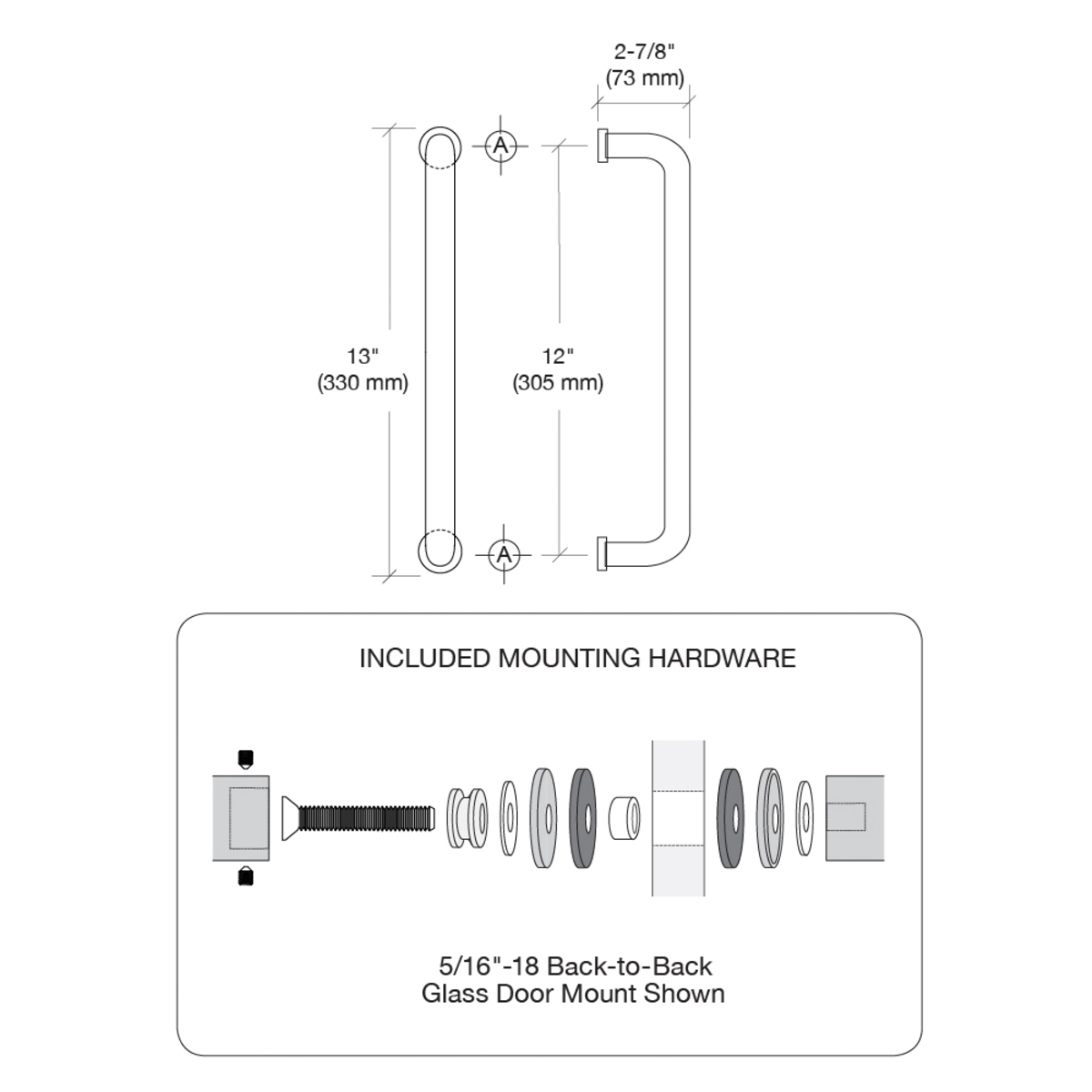

Projection: 3" (76 mm) from Face of Glass to Outside of Handle
Glass Fabrication Required:
Two 5/8" (16 mm) Diameter Holes
INCLUDES:
2 Each: Through-Bolts for Glass Mounting
4 Each: 1-1/4" (32 mm) Diameter Matching Finish Metal Washers and Rubber Gaskets
Most shipping weights are approximate and have not been verified. If the exact weight is needed in order to determine shipping costs, and shipping costs are required in order for you to complete your order, please request this prior to submitting your order by contacting CRL Customer Service. Product images shown are of the actual product or a close representation. Colors can vary depending on your computer's video card and on how your monitor's color is adjusted.
Stainless Steel Advisory:
Although Stainless Steel is resistant to corrosion, it is not rust or stain proof. CRL recommends periodic maintenance to help maintain its factory finish. For more information, view the Stainless Steel Disclaimer found in the Technical References section below.
Attributes
Compliance and Restrictions: Warning Reproductive Harm - www.p65warnings.ca.gov
Diameter: 1 in. (25 mm)
Finish/ Color:: Brushed Stainless Steel
Glazing Thickness: 3/8 in. To 3/4 in. (10 mm To 19 mm)
Material: Stainless Steel
Mounting Center To Center: 12 in. (305 mm)
Mounting Hole Diameter: 5/8 in. (16 mm)
Mounting Type: Back-to-Back
Shipping Limitations: None
Style Washer Diameter: 1-1/4 in. (32 mm)
Style Washers: Yes
