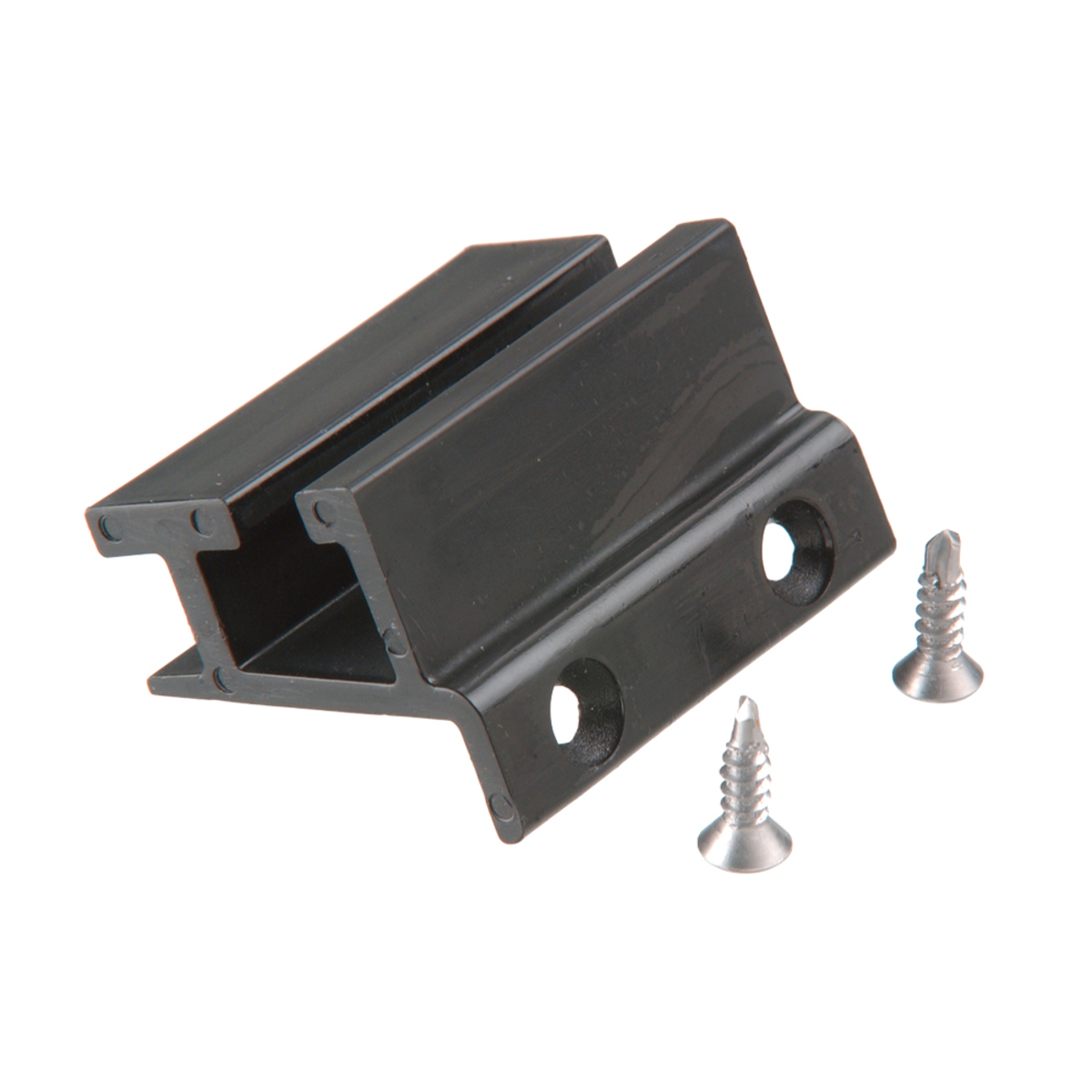

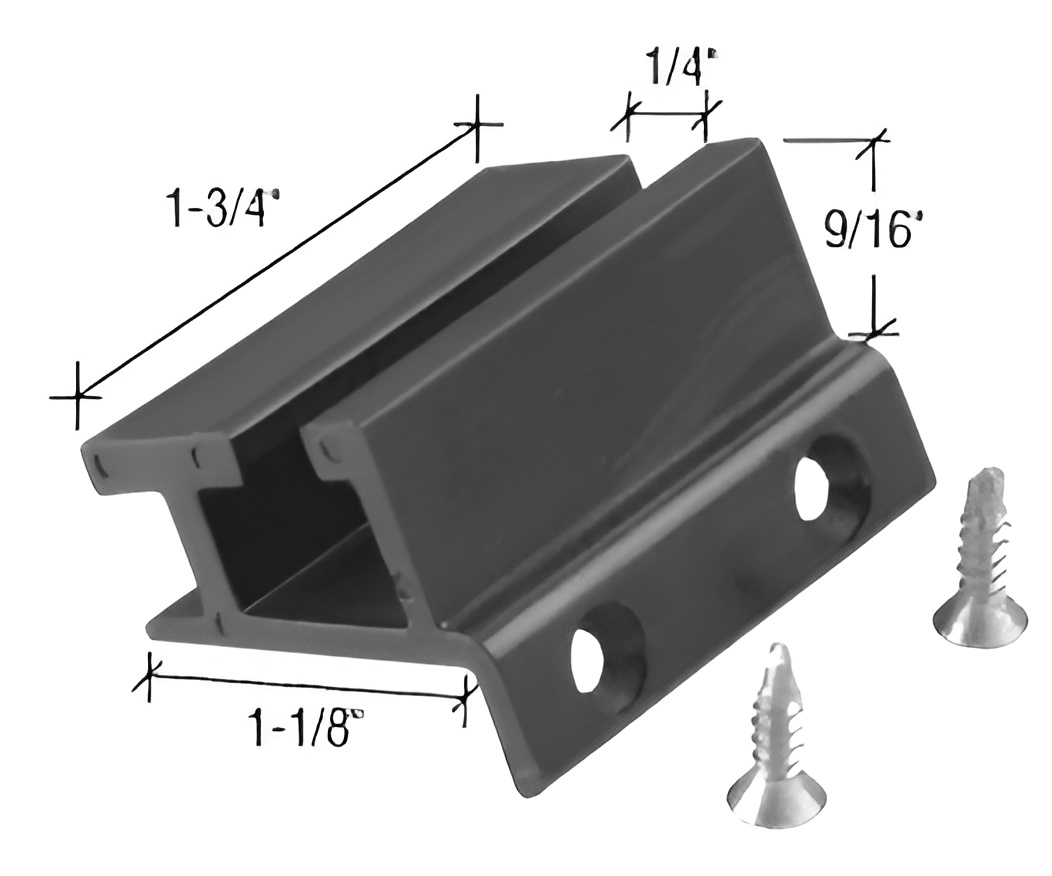

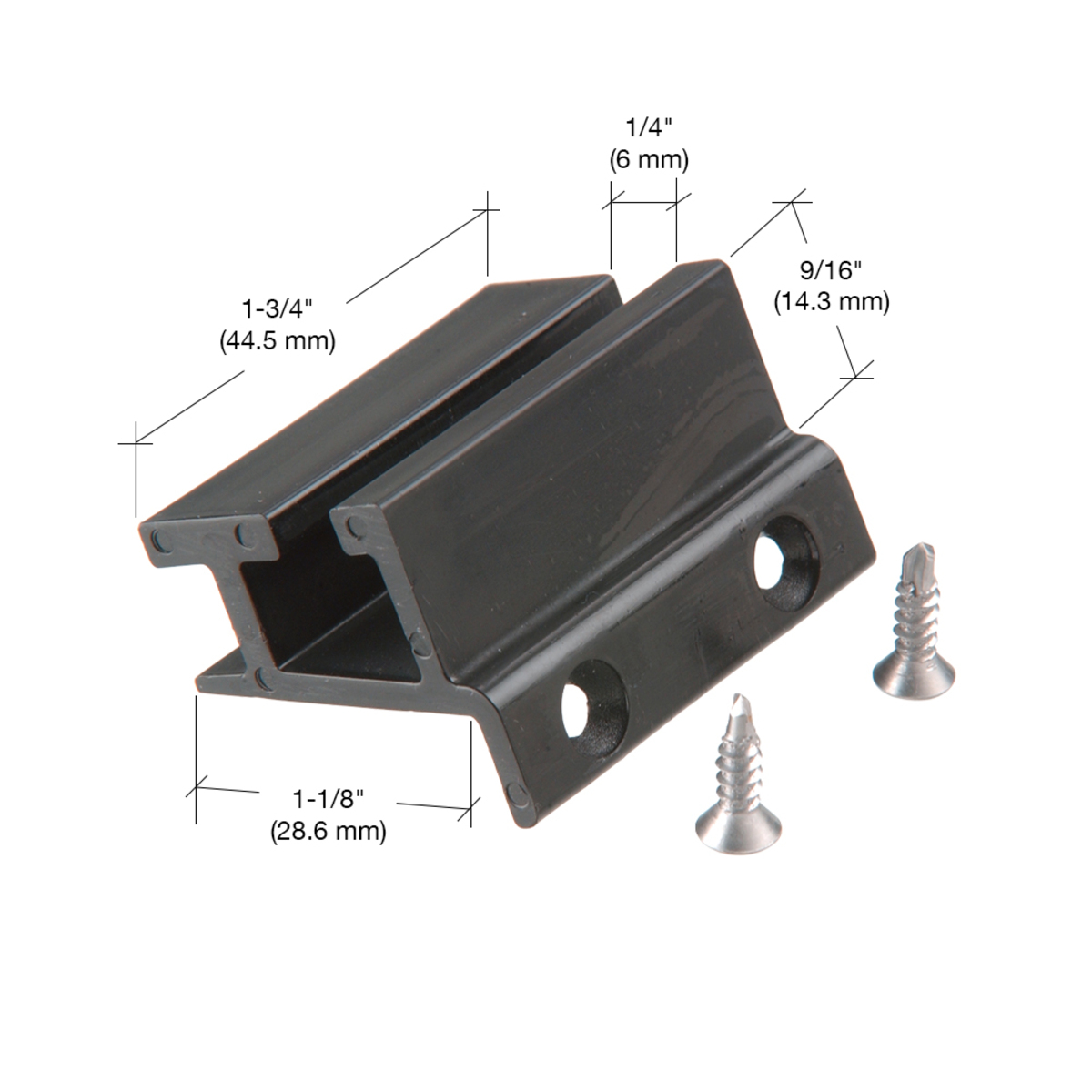

CRL DK6914 1/4" Bottom Guide for CK/DK Cottage Series Sliders

CRL DK6914 1/4" Bottom Guide for CK/DK Cottage Series Sliders

C.R. Laurence DK6914 1/4" Bottom Guide for CK/DK for Cottage Series Sliders is an essential component designed specifically for 1/4" (6.3 mm) monolithic tempered glass. This bottom guide enhances the versatility of CRL's Frameless Sliding Shower Door Kits, enabling you to create custom enclosures or add additional panels for a designer touch. With compatible parts available-such as headers, bottom sills, and side jambs-you can construct a tailored sliding unit that meets your specific design requirements. The DK6914 features identical profiles to the extrusions found in CRL’s kits, providing structural support when wet-glazing a fixed panel and eliminating the need for vertical metal posts. By utilizing the appropriate brackets and corners, you can craft beautiful multi-angle enclosures or wider inline units. For maximum efficiency, the DK6914 accommodates glass sizes up to 60" W x 72" H or 72" W x 60" H for 1/4" glass, and up to 72" W x 80" H for 3/8" glass. Available in a sleek black finish, this guide is compliant with safety standards and ready to ship via UPS. Transform your shower space with the enduring quality and innovative design of C.R. Laurence products.

1/4" Bottom Guide for CK/DK for Cottage Series Sliders

• Designed for 1/4" (6.3 mm) Glass
• Use Monolithic Tempered Glass

CRL Bottom Guide for CK, DK, and EK Series Sliders components add versatility to our Frameless Sliding Shower Door Kits when using 1/4" (6 mm) glass, and allows you the option of adding additional panels to create a designer enclosure, or simply construct your own sliding unit by combining the various parts. Stock lengths of headers, header fillers, bottom sills, sidelite sills, side jambs, top hangers and other accessory items complete the selection.


Use these components to build an enclosure to meet your requirements. You also have the option of sending us a drawing of the shower opening by fax. We will put together a customized kit with everything you will need (except the glass and the silicone). Contact CRL Technical Sales Shower Door Department for details.

These have identical profiles to the extrusions that are part of our Kits. When you wet glaze the fixed panel using these components you provide structural support, and eliminate the need for vertical metal posts. By affixing them with the appropriate brackets and corners (see Cat. Nos. BWB2, BHC90, BHC135, and BHC373) you can create beautiful multi-angle enclosures or wider inline units.

NOTE: To fabricate multi-angle enclosures or wider inline units you must order these extrusions and hardware packages separately, as they are not included in our standard Frameless Sliding Shower Door Kits for inline enclosures.

SPECIFICATIONS:
Materials: Extrusions (Aluminum), Knob, (Solid Brass), Towel Bar (Tubular Brass)
For Glass Thickness: 1/4" and 3/8" (6 and 10 mm) (Glass not included)
Maximum Slider Size:
1/4" (6 mm) Glass: 60" W x 72" H or 72" W x 60" H;
3/8" (10 mm) Glass: 72" W x 80" H
