CRL DL1099A Aluminum Universal Storefront Door Hinge

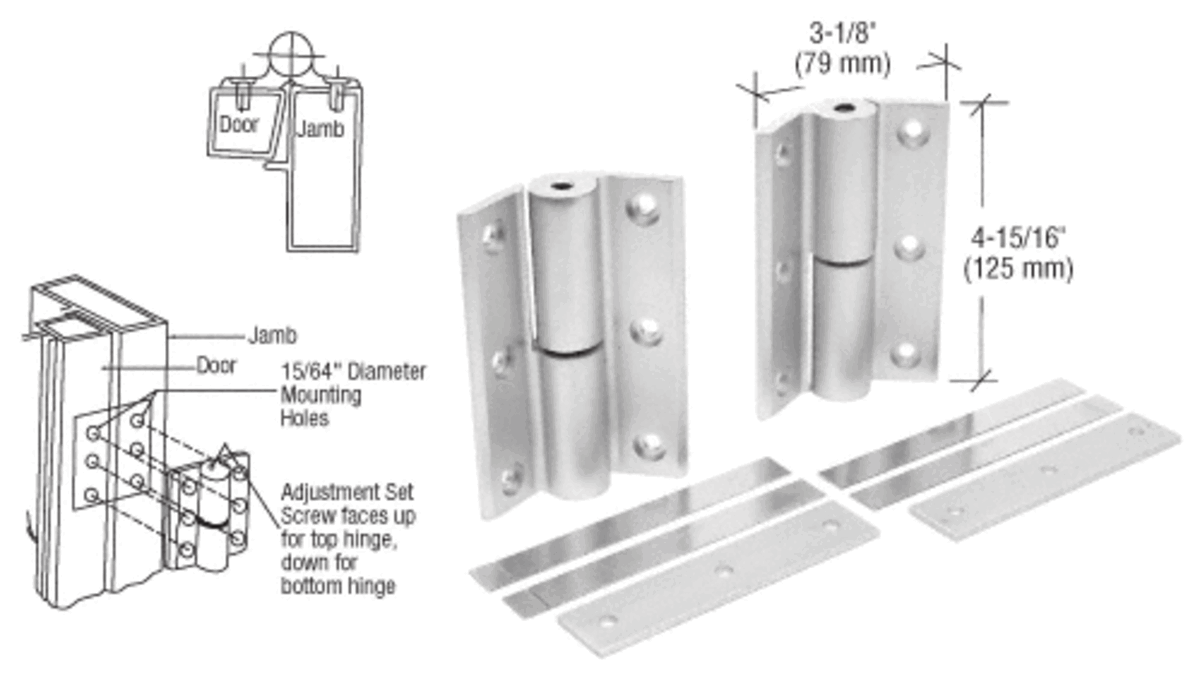

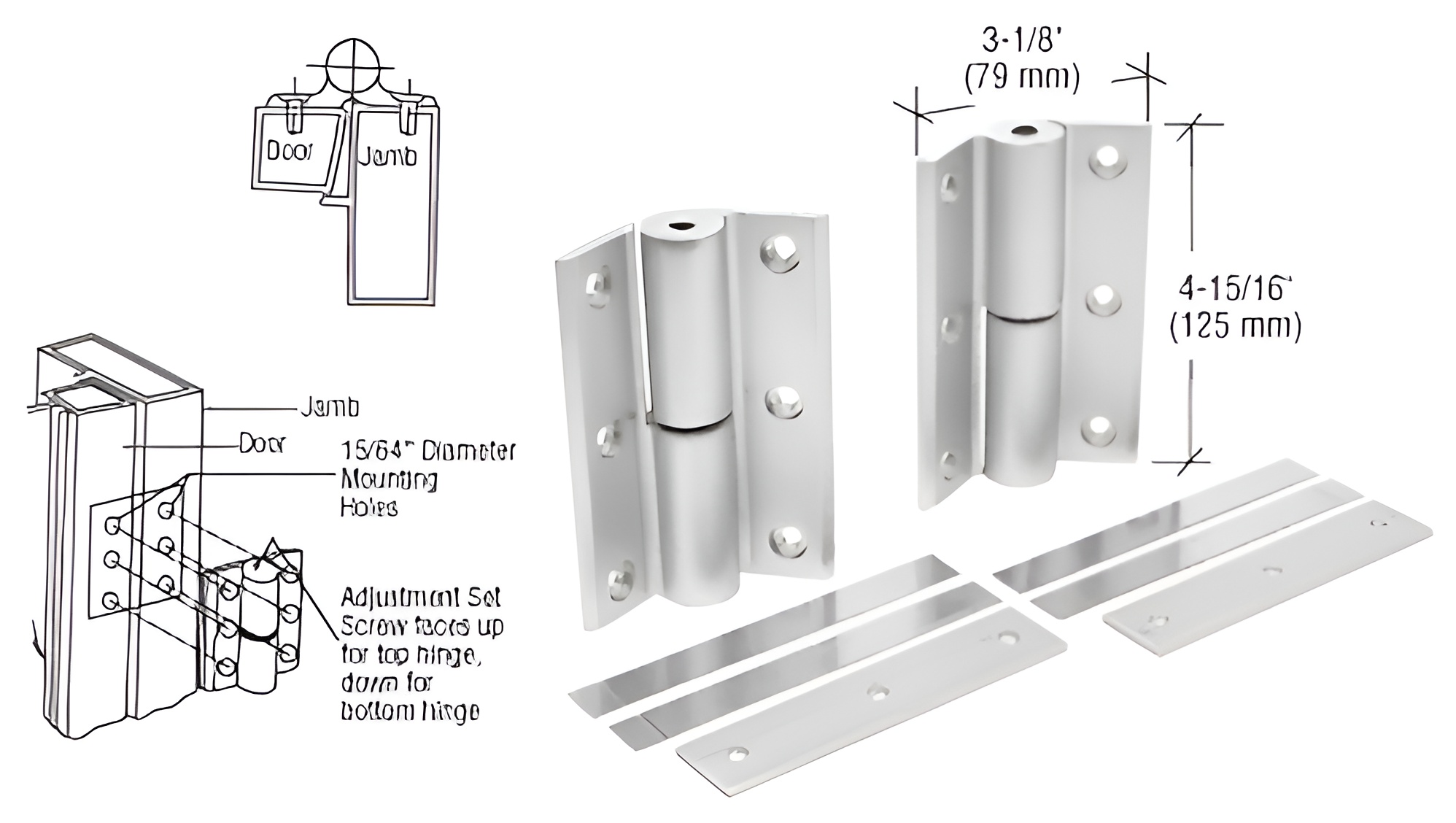

C.R. Laurence DL1099A Aluminum Universal Storefront Door Hinge offers a robust solution for commercial door applications, designed to accommodate both flush and 1/8" (3 mm) recessed doors. This hinge kit is ideal for doors weighing up to 300 lbs. (136 kg), ensuring reliable performance even in high-traffic environments. Crafted with precision, the hinge features a self-lubricating pin that enhances longevity while minimizing maintenance. Its smooth bearing action is attributed to the machine-quality anti-friction roller and thrust bearings, which are sealed in oil for optimal durability. The innovative design includes non-exposed hinge pins that prevent tampering, ensuring security and stability. Each hinge kit includes everything needed for installation: two hinges, two 1/8" (3 mm) thick shim plates, four screw cover plates, twelve one-way mounting screws, and a hex wrench, along with complete instructions for a seamless setup. The satin anodized finish not only adds an elegant touch but also contributes to the hinge's resistance to corrosion. With a hinge length of 4-15/16" and a width of 3-1/8", the DL1099A is engineered for easy integration into existing storefront systems, making it a versatile choice for any building professional looking to enhance their door hardware solutions.

Aluminum Universal Storefront Door Hinge

• Universal Fit for Both Flush and 1/8" (3 mm) Recessed Doors
• Use for Doors Weighing Up to 300 Lbs. (136 kg)
• Instant Adjustments to Fine Tolerances
• Smooth Bearing Action
• Self-Lubricating Pin
