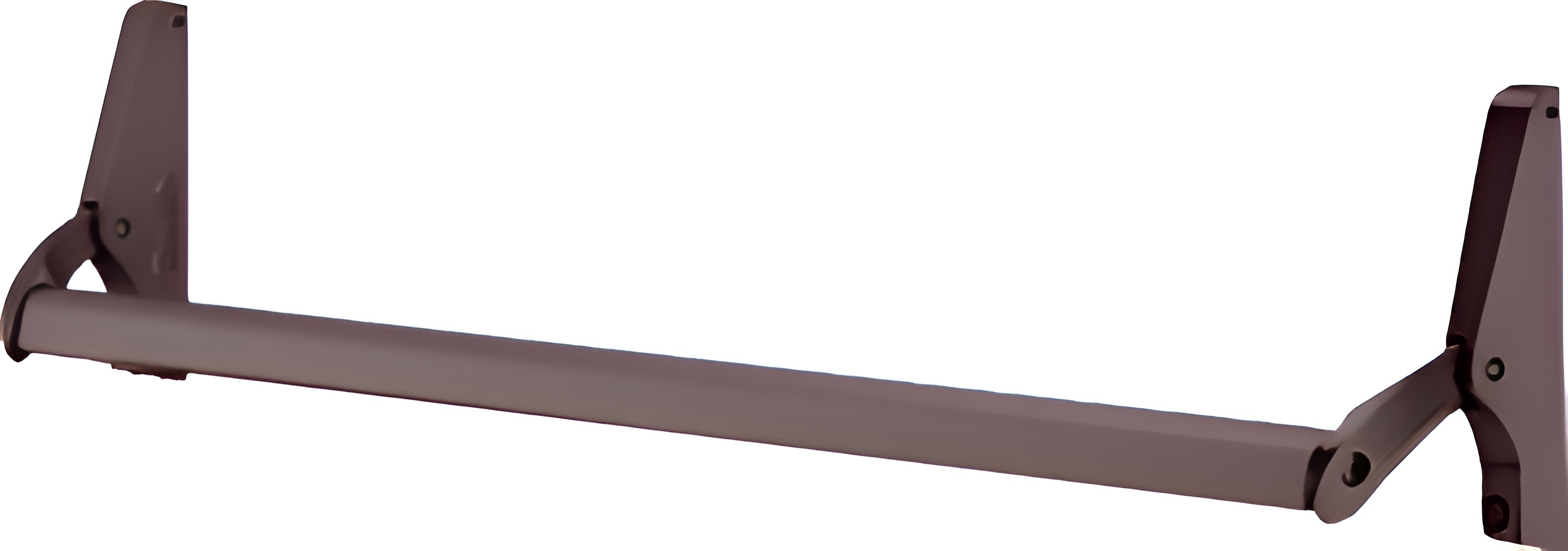

CRL DL1180DU Dark Bronze Concealed Vertical Rod Panic Exit DeviceC.R. Laurence DL1180DU Dark Bronze Concealed Vertical Rod Panic Exit Device enhances safety and security with a blend of functionality and style. This device is available in both Concealed Vertical Rod and Rim Exit configurations, catering to various installation needs. Designed for standard 1-3/4" (44 mm) thick doors, it features a 42" (1.07 m) crossbar that can be easily cut to size, ensuring a perfect fit for your project. The DL1180DU is ideal for narrow, medium, and wide stile aluminum doors or hollow metal doors, making it a versatile choice for different applications. With a non-handed design and independent top and bottom bolt action offering a robust 1/2" (13 mm) bolt throw, this exit device meets ANSI A156.3 Grade 1 certification standards, assuring reliable performance. Included mounting hardware simplifies installation, while the sleek dark bronze finish adds an elegant touch to any entrance. The device is also UL Listed for enhanced safety compliance. Whether for commercial or residential use, the C.R. Laurence DL1180DU is a trusted solution for ensuring secure egress in an emergency, embodying both practicality and aesthetic appeal.
Dark Bronze Concealed Vertical Rod Panic Exit Device
- Available as Concealed Vertical Rod and Rim Exit Devices
- 42" (1.07 m) Crossbar Can Be Cut-to-Size
- For Use with Narrow, Medium, and Wide Stile Aluminum Doors or Hollow Metal Doors
- Two Standard Architectural Finishes
CRL's DL1180 Series Cross Bar Panic Exit Devices combine simplicity and durability. This device is a proven product for providing an economical solution to satisfy both security and life safety requirements. Available in both Rim and Concealed Vertical Rod versions, this Exit Device comes with a 42" (1.07 m) length cross bar that can be field cut to fit your exact door size requirements.
STANDARD FEATURES:
DL1180 Series Concealed Vertical Rod Panics
• Non-Handed
• For Use with Standard 1-3/4" (44 mm) Thick Doors
• Rod Length to Fit Standard 84" (2.13 m) Tall Doors
• Independent Top and Bottom Bolt Action - 1/2" (13 mm) Bolt Throw
• Keyed Entry Requires CRL Cat. No. DL913 Cylinder Mounting Pad When Using Optional CRL DL2170 Series, or other brand, Mortise Cylinders
Most shipping weights are approximate and have not been verified. If the exact weight is needed in order to determine shipping costs, and shipping costs are required in order for you to complete your order, please request this prior to submitting your order by contacting CRL Customer Service. Product images shown are of the actual product or a close representation. Colors can vary depending on your computer's video card and on how your monitor's color is adjusted.
Attributes
Certification: ANSI A156.3 Grade 1
Compliance and Restrictions: Warning Reproductive Harm - www.p65warnings.ca.gov
Door Height: 84
Door Thickness: 1-3/4
Door Width: 48
Finish/ Color:: Dark Bronze
Handing: Non Handed
Includes: Mounting Hardware
Material: Aluminum
Minimum Stile Width: 1-3/4
Model: DL1180
Panic Bar Base Height: 2
Panic Bar Projection: 4-5/8
Panic Bar Width Net: 48
Panic Dogging: Screw Driver
Panic Head Base Width: 1-1/4
Panic Head Height: 7-5/16
Panic Type: Concealed Vertical Rods (CVR)
Recommended Door Type: Aluminum, Wood, Hollow Metal
Replacement Parts: DL2170SCKDDU, DL2070SCKADU, 30821J313
Shipping Limitations: None
Similar: 31108547313
UL Listed: Yes
