CRL J990NH0D Jackson 900 Series Adjustable Floor-Mounted Closer Body Cement Case

CRL J990NH0D Jackson 900 Series Adjustable Floor-Mounted Closer Body Cement Case

C.R. Laurence J990NH0D Jackson 900 Series No Hold Open Spring Power Adjustable Floor Mounted Closer Body and Cement Case Basic Package offers a robust solution for high-traffic areas with its impressive 1,000 lbs. capacity, accommodating doors up to 54 inches wide. This heavy-duty closer is designed for both new and retrofit applications, ensuring versatility whether you’re working with single or double-acting doors. Featuring a multi-size spring power adjustment, this closer can be calibrated for optimal performance, meeting A.D.A. requirements with opening forces set at either 5 or 8.5 lbs. The innovative centering adjustment simplifies door alignment, while the temperature-stabilizing fluid ensures reliability in extreme conditions. Ideal for larger interior and exterior doors, this closer guarantees maintenance-free operation for years to come. The package includes a 990 closer body, a cement case, and an installation tool package, making installation straightforward. With its UL listing and compliance to BS EN1154 standards, the Jackson 900 Series closer is a trusted choice for building professionals. Note that an auxiliary floor or overhead stop is required for limiting door movement to less than 180 degrees. Experience the stability and durability that the C.R. Laurence Jackson 900 Series brings to your project.

Jackson 900 Series No Hold Open Spring Power Adjustable Floor Mounted Closer Body and Cement Case Basic Package

• 1,000 Lb. Capacity, 54" (1.37 m) Doors
• Multi-Size Spring Power Adjustable
• Interchangeable Spindle Heights
• Leveling and Door Centering Adjustments
• 10 Year Limited Warranty
• UL Listed
• BS EN1154 - Classification 3.8.6/1.1.1.3

The CRL Jackson® 900 Series Multi-Sized Floor Mounted Door Closer is a heavy-duty, fully adjustable closer designed for new and retrofit applications. Accessories are available for either double or single acting doors. With its 1,000 lbs. (453 kg) capacity, the 900 Series Door Closer can be used with larger and heavier interior or exterior doors for longer, maintenance-free performance. These Door Closers are available in dual 90º and 120º, or 105º only Hold Open and No Hold Open models.


This fully adjustable Door Closer meets A.D.A. requirements in that it can be set at 5 or 8.5 lbs. opening forces. The unique centering adjustment simplifies double door alignment. This Door Closer is ideal for areas with extreme temperature changes due to its multi-viscosity temperature stabilizing fluid with thermal sensitive valves providing seasonal adaptability. Packages for new and retrofit installations, as well as accessories for both Center-Hung and Offset door applications, are available.

NOTE: This Door Closer is designed to open to a maximum of 180 degrees. An auxiliary floor or overhead stop is required to stop the door at less than 180 degrees.

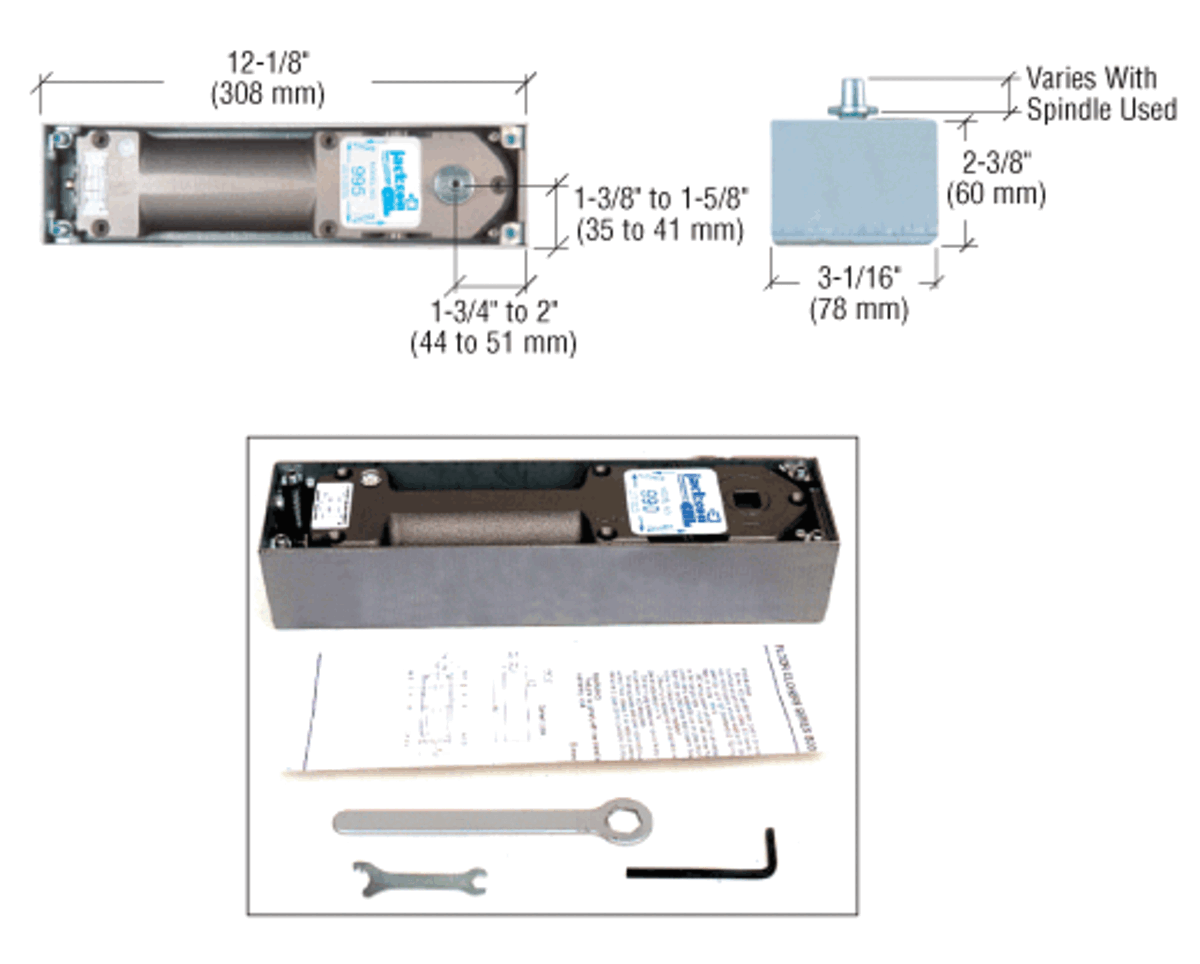

CONSISTS OF:
990 Closer Body
Cement Case
Installation Tool Package

SPECIFICATIONS:
Maximum Center-Hung Door: Weight = 1000 lbs. (454 kg), Width = 54" (1.37 m)
Maximum 3/4" Offset Door: Weight = 650 lbs. (295 kg), Width = 48" (1.22 m)
Maximum 1-1/2" Offset Door: Weight = 300 lbs. (136 kg), Width = 42" (1.07 m)
Adjustable Spring Power: Multi-Size 1 - 6
Door Centering Adjustment: 6 Degree Range Adjustment to Align Door
Hold or No Hold Open Models: Hold Open at Both 90 Degrees and 120 Degrees, Hold Open at 105 Degrees Only

Jackson 900 closer cover plate accepts flat head screws M6 x 1.0 x Length TBD by the application


Product Warning:

Closers set to comply with A.D.A. specified opening forces might not provide adequate spring power to control and close the door due to varying site conditions and door size.

Resources

• Jackson 900 Series Floor Mounted Door Closers Center Hung and Offset Installation Instructions
• Jackson Door Control Products Limited Warranty and Liability Information
