C.R. Laurence PH10CBS Brushed Stainless Bottom Door Patch with 1NT301 Insert offers a robust solution for securing glass door panels with style and reliability. Designed for compatibility with 3/8" or 1/2" (10 mm or 12 mm) monolithic tempered glass, this bottom gate patch fitting seamlessly integrates into the lower corner of your glass door. With a pivot setback of 2-3/4" (70 mm), it ensures optimal performance when used with CRL bottom door pivots or floor closers. Installation is straightforward, as the product comes complete with a template and instructions for precise glass fabrication. To achieve the perfect fit, create a 3/4" (19 mm) diameter hole and corner notch in the glass. Keep in mind that this fitting is not suitable for laminated glass and has specific guidelines for maximum dimensions: a height of 102" (2.59 m), weight of 176 lbs. (80 kg), and width of 42" (1.09 m). The brushed stainless steel finish not only enhances the aesthetic appeal but also provides resistance to corrosion, although periodic maintenance is recommended to preserve its original luster. Elevate your architectural projects with this durable and stylish bottom door patch fitting from C.R. Laurence.

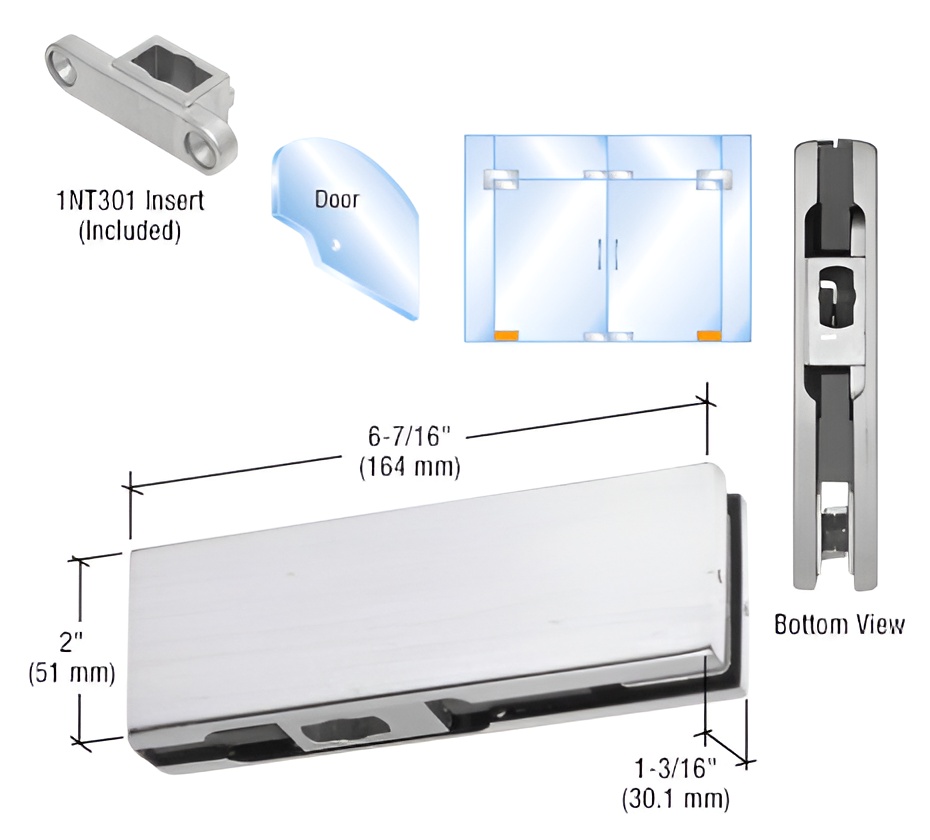

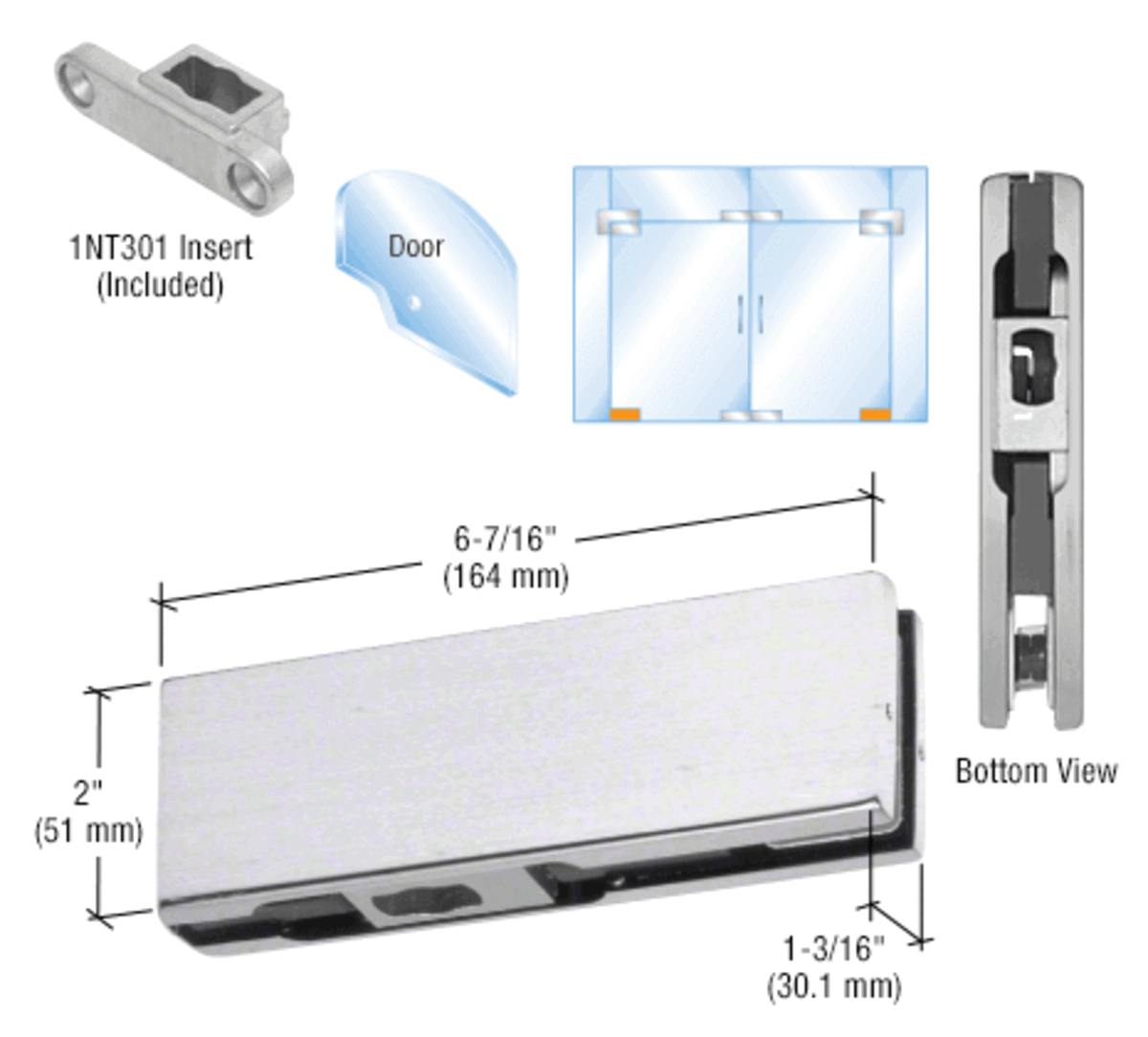

Brushed Stainless Bottom Door Patch with 1NT301 Insert
Most shipping weights are approximate and have not been verified. If the exact weight is needed in order to determine shipping costs, and shipping costs are required in order for you to complete your order, please request this prior to submitting your order by contacting CRL Customer Service. Product images shown are of the actual product or a close representation. Colors can vary depending on your computer's video card and on how your monitor's color is adjusted.
Compliance and Restrictions: Warning Reproductive Harm - www.p65warnings.ca.gov
Finish/ Color:: Brushed Stainless Steel
Glazing Thickness: 3/8 in., 1/2 in. (10 mm, 12 mm)
Insert Type: 1NT301
Pivot Setback: 2-3/4
Shipping Limitations: None
Type: Bottom
With Insert: Yes
