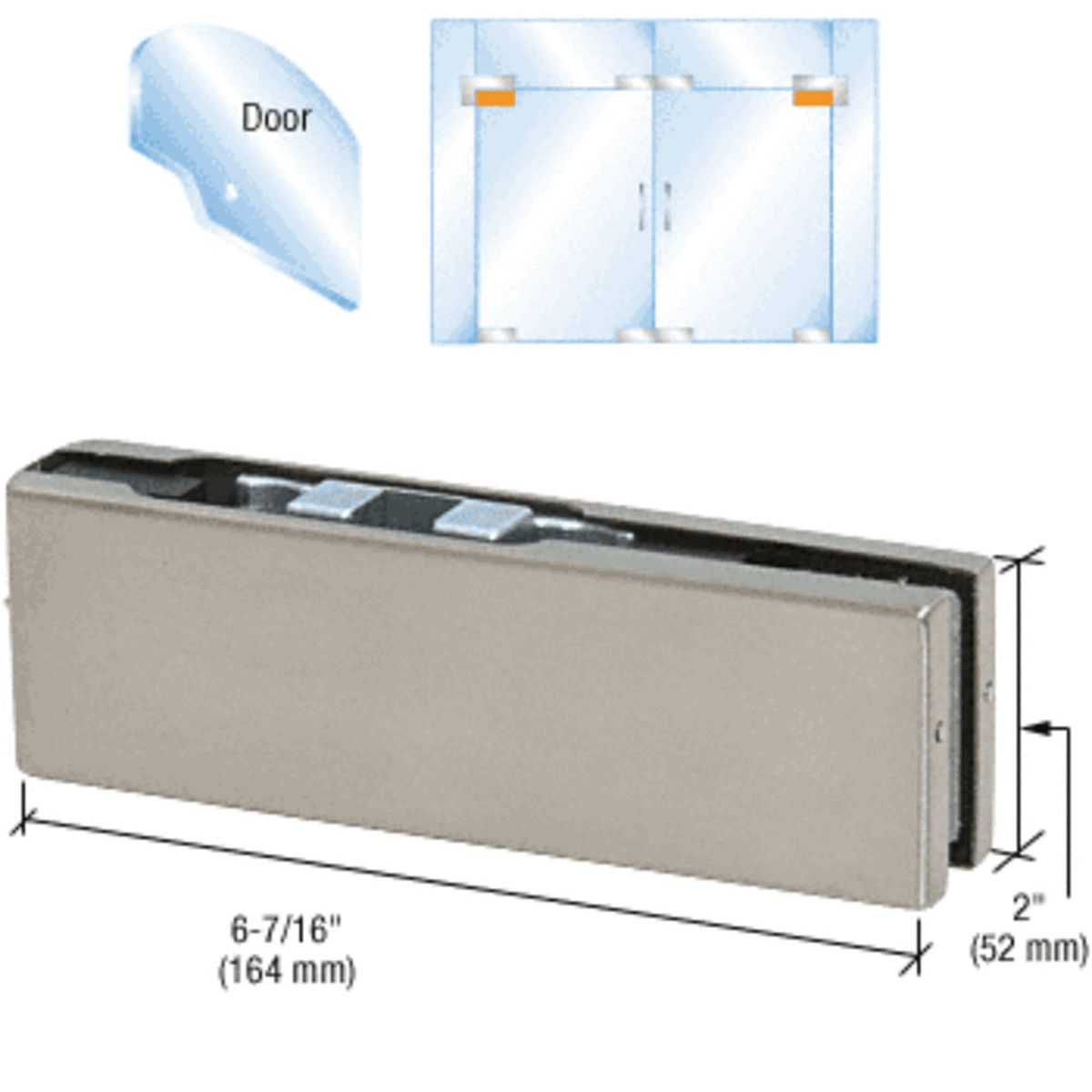

CRL PH20CBS Brushed Stainless Adjustable North American Top Door Patch Fitting

Your Price: $89.45

Retail Price:$107.08

Your Savings:$17.63(16%)

The CRL PH20CBS Adjustable Top Door Patch Fitting offers precise door alignment with a brushed stainless finish for durability.

Part Number : CRL_PH20CBS

Availability: 1137 In Stock

Quantity

Description

CRL PH20CBS Brushed Stainless Adjustable North American Top Door Patch Fitting

C.R. Laurence PH20CBS Brushed Stainless Adjustable North American Top Door Patch Fitting offers a reliable solution for aligning doors with precision. This innovative fixture includes an adjustable pivot insert that allows for three degrees of movement, ensuring proper door alignment with the jamb when closed. Designed for use with either 3/8" or 1/2" (10 or 12 mm) monolithic tempered glass, the fitting accommodates a pivot setback of 2-3/4" (70 mm), making it versatile for various applications. With a maximum height of 102" (2.59 m) and a weight capacity of 194 lbs. (88 kg), this patch fitting is robust enough to support larger doors, up to 42" (1.07 m) wide. It is essential to note that if the door exceeds these limitations, full door rails should be utilized. Each fitting comes with a template and instructions for effortless installation. Available in five standard finishes, this brushed stainless steel fitting not only meets aesthetic demands but also ensures durability. Regular maintenance is recommended to preserve its finish, as stainless steel, while resistant to corrosion, is not entirely stain-proof. Ideal for professional applications, the C.R. Laurence PH20CBS is a testament to quality and craftsmanship in architectural hardware.

Brushed Stainless Adjustable North American Top Door Patch Fitting

Adjustable Pivot Insert Allows Three Degrees Movement for Proper Door Alignment
2-3/4" (70 mm) Pivot Setback
For 3/8" or 1/2" (10 or 12 mm) Glass
Use Monolithic Tempered Glass

The CRL Adjustable Top Door Patch Fitting includes an adjustable pivot insert that allows for 3 degrees of movement for proper alignment of the door to the jamb when in the closed position. For use with our CRL9970 Overhead Concealed Door Closer. Finished covers are available in five standard finishes. Gaskets are supplied that allow this Patch Fitting to be used with either 3/8" or 1/2" (10 or 12 mm) Glass.

The following guidelines are to be used when making a door using this hardware:

Maximum Height: 102" (2.59 m)
Maximum Weight: 194 Lbs. (88 kg)
Maximum Width: 42" (1.07 m)
If the door exceeds any of these limitations, full door rails should be used.

GLASS FABRICATION REQUIRED:
One 3/4" (19 mm) Diameter
Hole and Corner Notch

COMES WITH: Template and Instructions

DO NOT USE WITH:
European 2-9/16" (65 mm) Pivot Setback Overhead Concealed Door Closers. They Require European Door Patch Fitting PH21C.

Most shipping weights are approximate and have not been verified. If the exact weight is needed in order to determine shipping costs, and shipping costs are required in order for you to complete your order, please request this prior to submitting your order by contacting CRL Customer Service. Product images shown are of the actual product or a close representation. Colors can vary depending on your computer's video card and on how your monitor's color is adjusted.

Stainless Steel Advisory:

Although Stainless Steel is resistant to corrosion, it is not rust or stain proof. CRL recommends periodic maintenance to help maintain its factory finish. For more information, view the Stainless Steel Disclaimer found in the Technical References section below.

Attributes

Compliance and Restrictions: Warning Reproductive Harm - www.p65warnings.ca.gov

Finish/ Color:: Brushed Stainless Steel

Glazing Thickness: 3/8 in., 1/2 in. (10 mm, 12 mm)

Pivot Setback: 2-3/4

Series: North American

Shipping Limitations: None

Type: Top

With Insert: Yes
