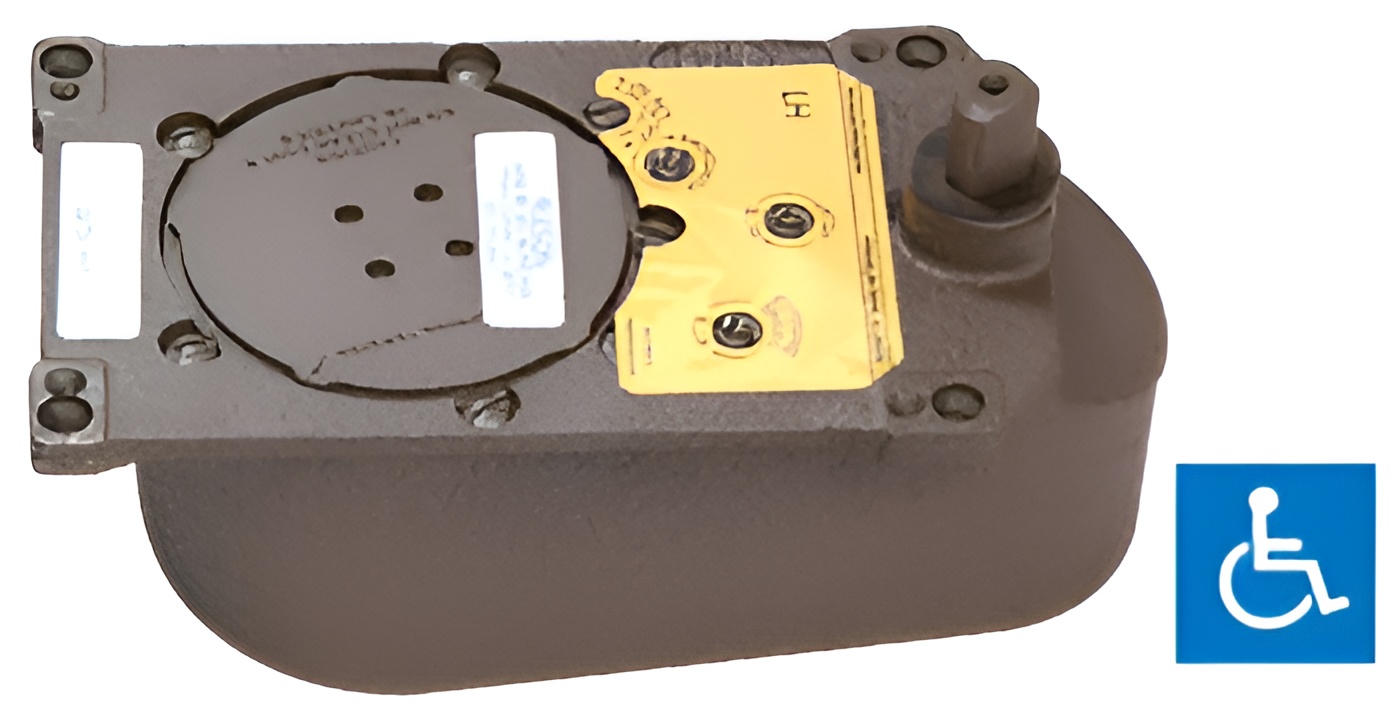

CRL PH27105SH0LH85 Rixson PH27 8.5 lb Offset 105 Hold Open Floor Closer Body - Left HandCRL PH27105SH0LH85 Rixson Model PH27 8.5 Lb. Offset 105 Degree Selective Hold Open Floor Mounted Closer Body Only - Left Hand delivers exceptional performance for controlling both exterior and interior doors. This robust floor closer supports doors weighing up to 450 lbs. (204 kg) and measuring up to 48" (1.22 m) wide, making it ideal for heavy-duty applications. It features a selective on or off hold-open function, allowing for versatile door management tailored to your specific needs. Designed with functionality in mind, the closer incorporates a built-in positive dead stop, enhancing durability and safety. The direct connection between the bottom arm and the floor closer spindle significantly increases closing efficiency compared to traditional surface or overhead concealed options. This model also boasts adjustable hydraulic backcheck capabilities and independent valves for closing, latching, and backcheck adjustments, ensuring smooth operation. Certified to ANSI 117.1 and ANSI 156.4 Grade 1 standards, this floor closer is designed to meet rigorous quality and performance benchmarks. Note that additional accessories such as the floor closer cement case and bottom offset arm may be required for complete installation. For further assistance with Rixson® products, contact our Technical Sales Department.
Rixson Model PH27 8.5 Lb. Offset 105 Degree Selective Hold Open Floor Mounted Closer Body Only - Left Hand
- For Exterior or Interior Doors Weighing Up to 450 Lbs. (204 kg) and 48" (1.22 m) Wide
- Selective On or Off Hold-Open
- Built-in Positive Dead Stop
This
Rixson® Model 27 Offset Floor Mounted Door Closer provides the best mechanical means of controlling a door. The weight of the door is supported by the bottom arm, which is directly connected to the floor closer spindle. The direct connection between the bottom arm and the floor closer spindle creates a tremendous increase in closing efficiency compared to surface or overhead concealed closers. This closer is capable of supporting exterior or interior doors weighing up to 450 lbs. (204 kg) and 48" (1.22 m) Wide.
Standard features include selective on or off hold open, build-in positive dead stop, and separate independent valves for closing, latch and backcheck adjustments.
NOTE: CRL is a stocking Rixson® Specialty Door Control Distributor. If you need Rixson® products please contact our Technical Sales Department for assistance.
NOTE: Although A.D.A. Series Door Closers comply with A.D.A. specified opening forces, they might not provide adequate spring power to control and close the door due to varying site conditions and door size.
Optional accessories that may be needed:
253000
Floor Closer Cement Case
274750LH
Closer Cover
252050LH
Bottom Offset Arm
R180
Top Offset Pivot
M19LH
Intermediate Offset Pivots.
Additional finishes and accessories are available upon request for quotation.
Product Warning:
Closers set to comply with A.D.A. specified opening forces might not provide adequate spring power to control and close the door due to varying site conditions and door size.
Most shipping weights are approximate and have not been verified. If the exact weight is needed in order to determine shipping costs, and shipping costs are required in order for you to complete your order, please request this prior to submitting your order by contacting CRL Customer Service. Product images shown are of the actual product or a close representation. Colors can vary depending on your computer's video card and on how your monitor's color is adjusted.
Attributes
Adjustable Hydraulic Backcheck: Yes
Americans with Disabilities Act: Yes
Body Height: 4-1/16 in. (103.2 mm)
Body Length: 11-1/8 in. (282.6 mm)
Body Widt: 5-7/8 in. (149.2 mm)
Body Width: 5-7/8 in. (149.2 mm)
Brand: Rixson
Built In Positive Dead Stop: Yes
Certification: ANSI 117.1, ANSI 156.4 Grade 1
Closer Body Only: Yes
Closer Type: Floor Closer
Compliance and Restrictions: Warning Reproductive Harm - www.p65warnings.ca.gov
Door Height May Require Intermediate Pivots: Yes
Door Opening: 105 °
Handing: Left Hand
Independent Closing and Latching Valves: Yes
Interior Or Exterior Doors: Yes
Maximum Door Width - Exterior: 48 in. (1219.2 mm)
Maximum Door Width - Interior: 48 in. (1219.2 mm)
Maximum Weight Center Hung: 450 lbs. (204.1 kg)
Non Stocked Parts and Acessories Special Order: Yes
Recommended Door Type: Aluminum, Hollow Metal
Selective Hold Open: Yes
Series: 27
Shipping Limitations: None
Similar: BTS75VBF90HO, BTS80BF, J993HOD, J994HOD
Spring Size: 8-1/2
UL Listed: Yes
