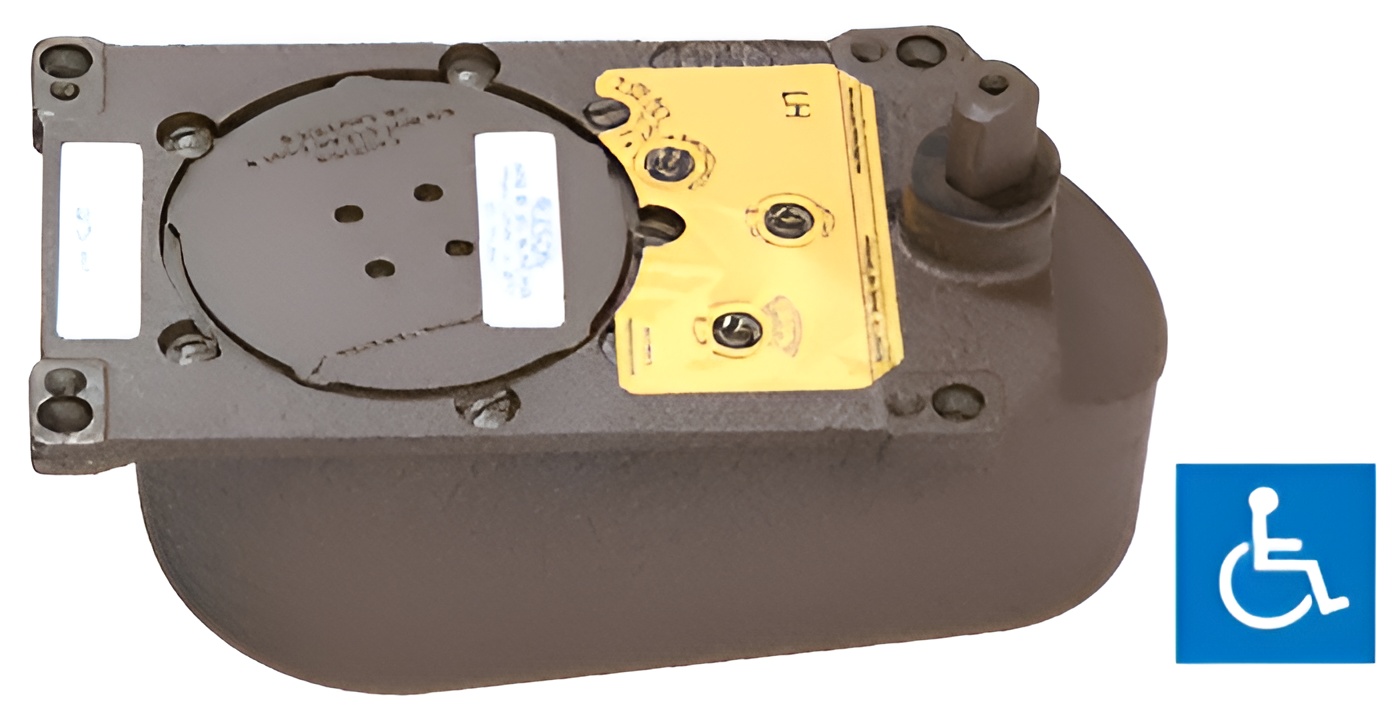

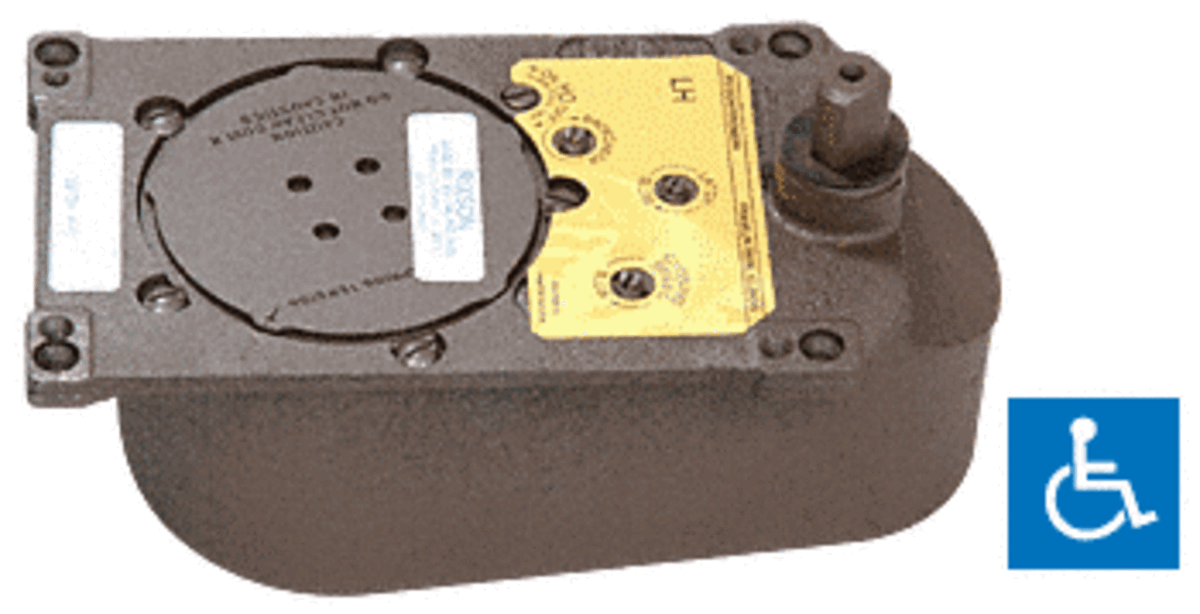

CRL PH2790SH0LH85 Rixson PH27 8.5 Lb. Offset 90 Hold Open Floor Closer Body - Left HandCRL PH2790SH0LH85 Rixson Model PH27 8.5 Lb. Offset 90 Degree Selective Hold Open Floor Mounted Closer Body Only - Left Hand is designed to provide exceptional control for heavy doors. This robust closer is suitable for both exterior and interior doors, accommodating weights up to 450 lbs. (204 kg) and widths of up to 48 inches (1.22 m). Its selective hold open feature allows for flexibility, enabling the door to remain open when desired, while the built-in positive dead stop ensures reliable operation and safety. The unique design connects the bottom arm directly to the floor closer spindle, significantly enhancing closing efficiency compared to traditional surface or overhead concealed closers. This model also features independent valves for closing, latching, and backcheck adjustments, providing customizable operation to meet varying site conditions. With an ANSI certification and compliance with A.D.A. specifications, this closer is engineered to meet rigorous standards. The Rixson Model 27 is ideal for aluminum and hollow metal doors, and additional accessories, such as a floor closer cement case or closer cover, are available to enhance functionality. Invest in this durable and efficient door closer to ensure smooth operation in high-traffic environments.
Rixson Model PH27 8.5 Lb. Offset 90 Degree Selective Hold Open Floor Mounted Closer Body Only - Left Hand
- For Exterior or Interior Doors Weighing Up to 450 Lbs. (204 kg) and 48" (1.22 m) Wide
- Selective On or Off Hold Open
- Built-in Positive Dead Stop
This
Rixson® Model 27 Offset Floor Mounted Door Closer provides the best mechanical means of controlling a door. The weight of the door is supported by the bottom arm, which is directly connected to the floor closer spindle. The direct connection between the bottom arm and the floor closer spindle creates a tremendous increase in closing efficiency compared to surface or overhead concealed closers. This closer is capable of supporting exterior or interior doors weighing up to 450 lbs. (204 kg) and 48" (1.22 m) Wide.
Standard features include selective on or off hold open, build-in positive dead stop, and separate independent valves for closing, latch and backcheck adjustments.
NOTE: CRL is a stocking Rixson® Specialty Door Control Distributor. If you need Rixson® products please contact our Technical Sales Department for assistance.
NOTE: Although A.D.A. Series Door Closers comply with A.D.A. specified opening forces, they might not provide adequate spring power to control and close the door due to varying site conditions and door size.
Optional accessories that may be needed:
253000
Floor Closer Cement Case
274750LH
Closer Cover
252050LH
Bottom Offset Arm
R180
Top Offset Pivot
M19LH
Intermediate Offset Pivots.
Additional finishes and accessories are available upon request for quotation.
Product Warning:
Closers set to comply with A.D.A. specified opening forces might not provide adequate spring power to control and close the door due to varying site conditions and door size.
Most shipping weights are approximate and have not been verified. If the exact weight is needed in order to determine shipping costs, and shipping costs are required in order for you to complete your order, please request this prior to submitting your order by contacting CRL Customer Service. Product images shown are of the actual product or a close representation. Colors can vary depending on your computer's video card and on how your monitor's color is adjusted.
Attributes
Adjustable Hydraulic Backcheck: Yes
Americans with Disabilities Act: Yes
Body Height: 4-1/16 in. (103.2 mm)
Body Length: 11-1/8 in. (282.6 mm)
Body Widt: 5-7/8 in. (149.2 mm)
Body Width: 5-7/8 in. (149.2 mm)
Brand: Rixson
Built In Positive Dead Stop: Yes
Certification: ANSI 117.1, ANSI 156.4 Grade 1
Closer Body Only: Yes
Closer Type: Floor Closer
Compliance and Restrictions: Warning Reproductive Harm - www.p65warnings.ca.gov
Door Height May Require Intermediate Pivots: Yes
Door Opening: 90 °
Handing: Left Hand
Independent Closing and Latching Valves: Yes
Interior Or Exterior Doors: Yes
Maximum Door Width - Exterior: 48 in. (1219.2 mm)
Maximum Door Width - Interior: 48 in. (1219.2 mm)
Maximum Weight Center Hung: 450 lbs. (204.1 kg)
Non Stocked Parts and Acessories Special Order: Yes
Recommended Door Type: Aluminum, Hollow Metal
Selective Hold Open: Yes
Series: 27
Shipping Limitations: None
Similar: BTS75VBF90HO, BTS80BF, J993HOD, J994HOD
Spring Size: 8.5
UL Listed: Yes
